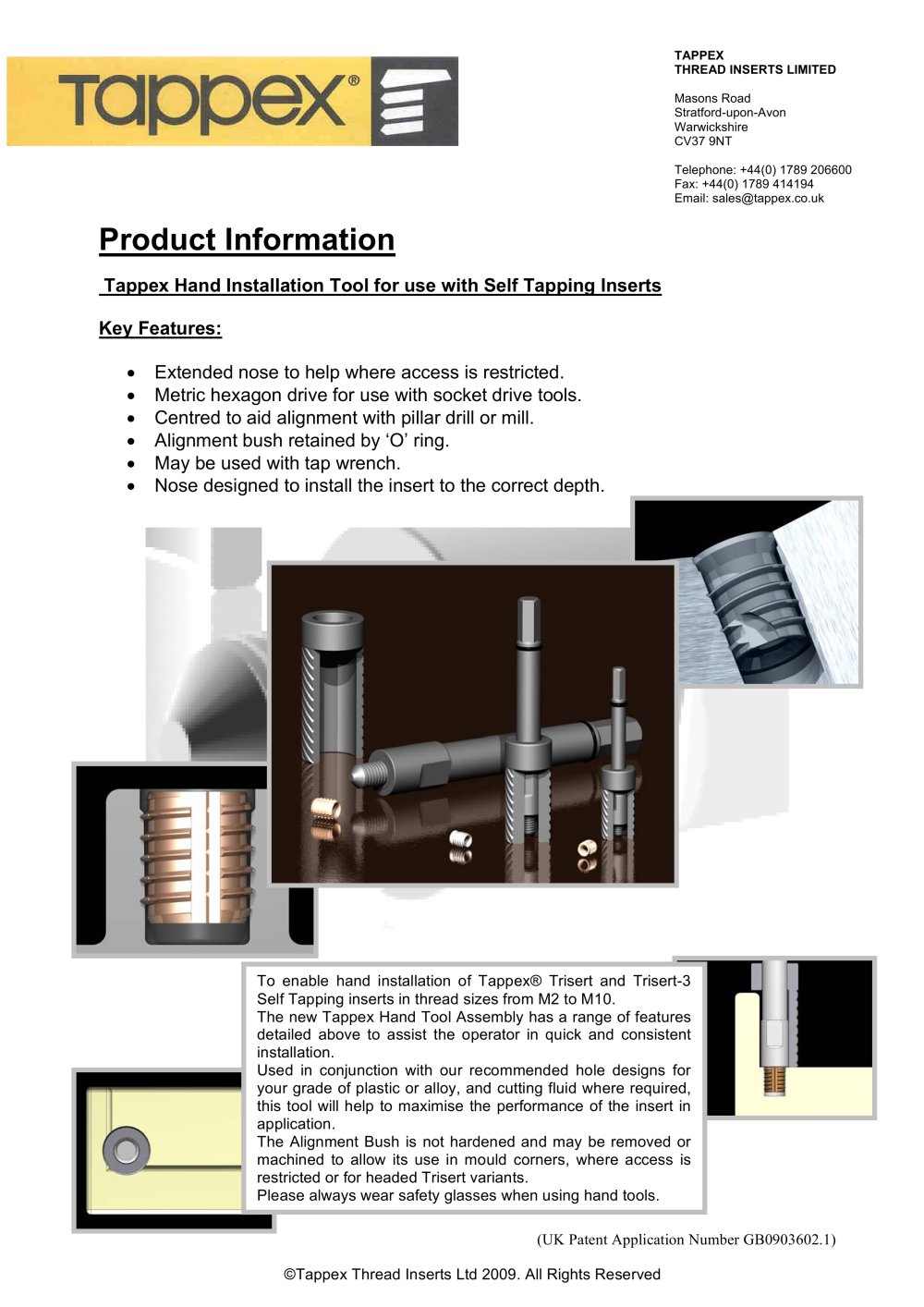

TAPPEX THREAD INSERTS LIMITED Masons Road Stratford-upon-Avon Warwickshire CV37 9NT Telephone: +44(0) 1789 206600 Fax: +44(0) 1789 414194 Email: [email protected] Product Information Tappex Hand Installation Tool for use with Self Tapping Inserts Key Features: „h Extended nose to help where access is restricted. „h Metric hexagon drive for use with socket drive tools. „h Centred to aid alignment with pillar drill or mill. „h Alignment bush retained by ‘O’ ring. „h May be used with tap wrench. „h Nose designed to install the insert to the correct depth. ©Tappex Thread Inserts Ltd 2009. All Rights Reserved To enable hand installation of Tappex® Trisert and Trisert-3 Self Tapping inserts in thread sizes from M2 to M10. The new Tappex Hand Tool Assembly has a range of features detailed above to assist the operator in quick and consistent installation. Used in conjunction with our recommended hole designs for your grade of plastic or alloy, and cutting fluid where required, this tool will help to maximise the performance of the insert in application. The Alignment Bush is not hardened and may be removed or machined to allow its use in mould corners, where access is restricted or for headed Trisert variants. Please always wear safety glasses when using hand tools. (UK Patent Application Number GB0903602.1)
