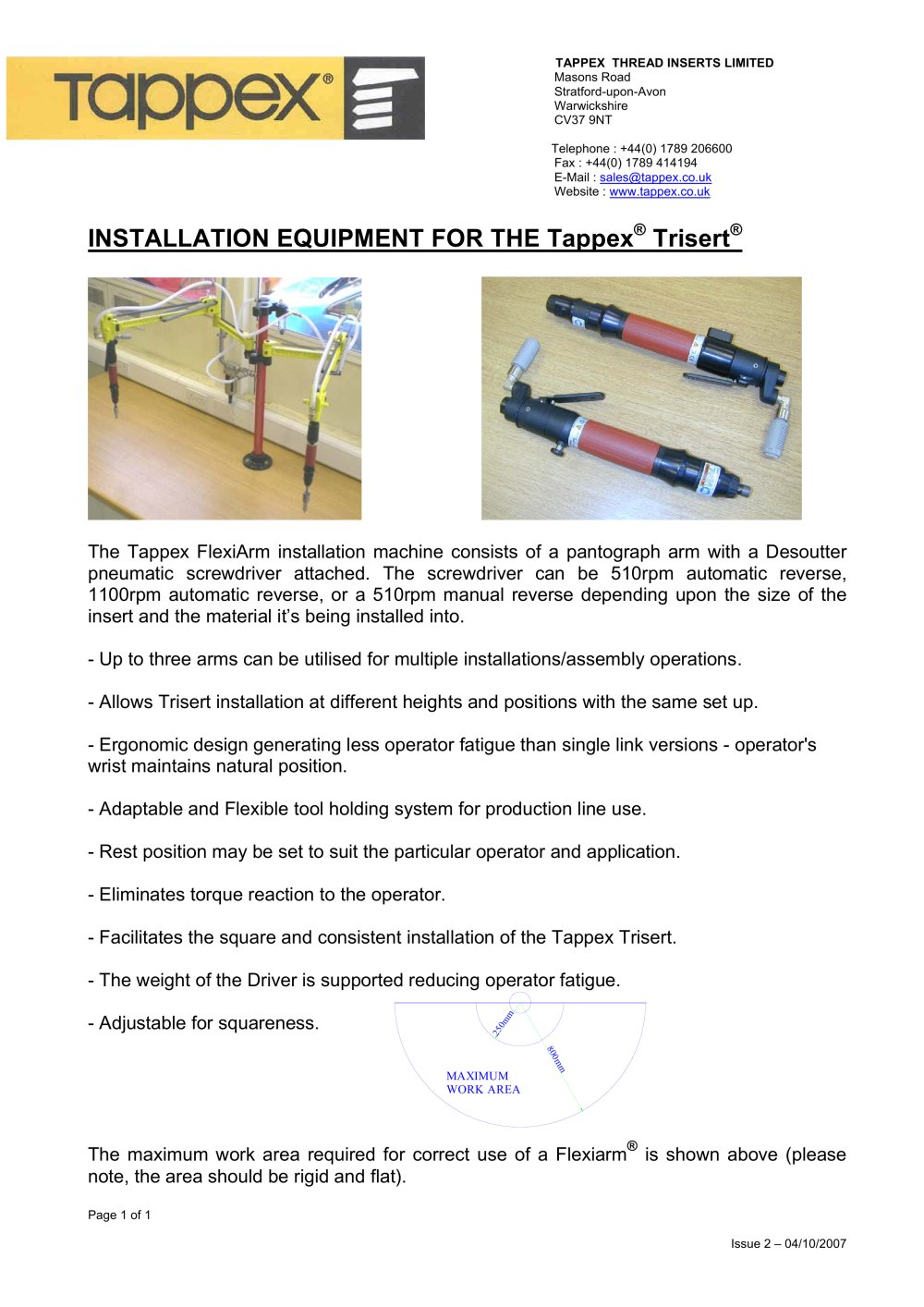

TAPPEX THREAD INSERTS LIMITED Masons Road Stratford-upon-Avon Warwickshire CV37 9NT Telephone : +44(0) 1789 206600 Fax : +44(0) 1789 414194 E-Mail : sales@tappex.co.uk Website : www.tappex.co.uk Page 1 of 1 Issue 2 – 04/10/2007 INSTALLATION EQUIPMENT FOR THE Tappex® Trisert® The Tappex FlexiArm installation machine consists of a pantograph arm with a Desoutter pneumatic screwdriver attached. The screwdriver can be 510rpm automatic reverse, 1100rpm automatic reverse, or a 510rpm manual reverse depending upon the size of the insert and the material it’s being installed into. - Up to three arms can be utilised for multiple installations/assembly operations. - Allows Trisert installation at different heights and positions with the same set up. - Ergonomic design generating less operator fatigue than single link versions - operator's wrist maintains natural position. - Adaptable and Flexible tool holding system for production line use. - Rest position may be set to suit the particular operator and application. - Eliminates torque reaction to the operator. - Facilitates the square and consistent installation of the Tappex Trisert. - The weight of the Driver is supported reducing operator fatigue. MAXIMUMWORK AREA800mm250mm - Adjustable for squareness. The maximum work area required for correct use of a Flexiarm® is shown above (please note, the area should be rigid and flat).
