Track Loaders TL150

Product catalog summary

Overview
TAKEUCHI excavators and loaders are designed with a focus on quality and performance. The TL150 model exemplifies this with its robust features and reliable operation, backed by over four decades of innovation and ISO-9001 certification.

Specifications

Engine: Yanmar/4TNV 106T, 72.0kW at 2200 min-1
Operating Weight: 4850 kg
Tipping Load: 3200 kg
Bucket Breakout Force: 38.5 kN
Hydraulic System: 64-liter reservoir, 88 lit/min auxiliary flow, 20.6 MPa operating pressure
Undercarriage: 450 mm wide rubber tracks, 6 track rollers per side, 29.7 kPa ground pressure
Dimensions: Overall width 1860 mm, height 2320 mm, length with bucket 3985 mm

Performance

Operating Capacity: 1120 kg
Cycle Times: Raise (4.8 sec), Lower (3.1 sec), Dump (3.3 sec), Curl (2.4 sec)
Fuel Consumption: 14.1 lit/hr at 65% load

Features

Turbocharged diesel engine with low/high range travel speed
ROPS/FOPS tilt-back operator's compartment for easy access
Pilot operated joystick controls for precise operation
Emergency engine shutdown and electronic monitoring systems
Hydraulic self-leveling bucket and automatic fuel bleed system
Adjustable suspension seat with retractable seat belt
Halogen work lights, rear view mirrors, and back-up alarm
Vandalism-protected lockable engine compartment and fuel tank

Conclusion
The TAKEUCHI TL150 Rubber Track Loader is engineered for durability and efficiency, offering a stable work platform and advanced features for enhanced operator comfort and safety. It is a reliable choice for demanding construction environments.

Catalog excerpts

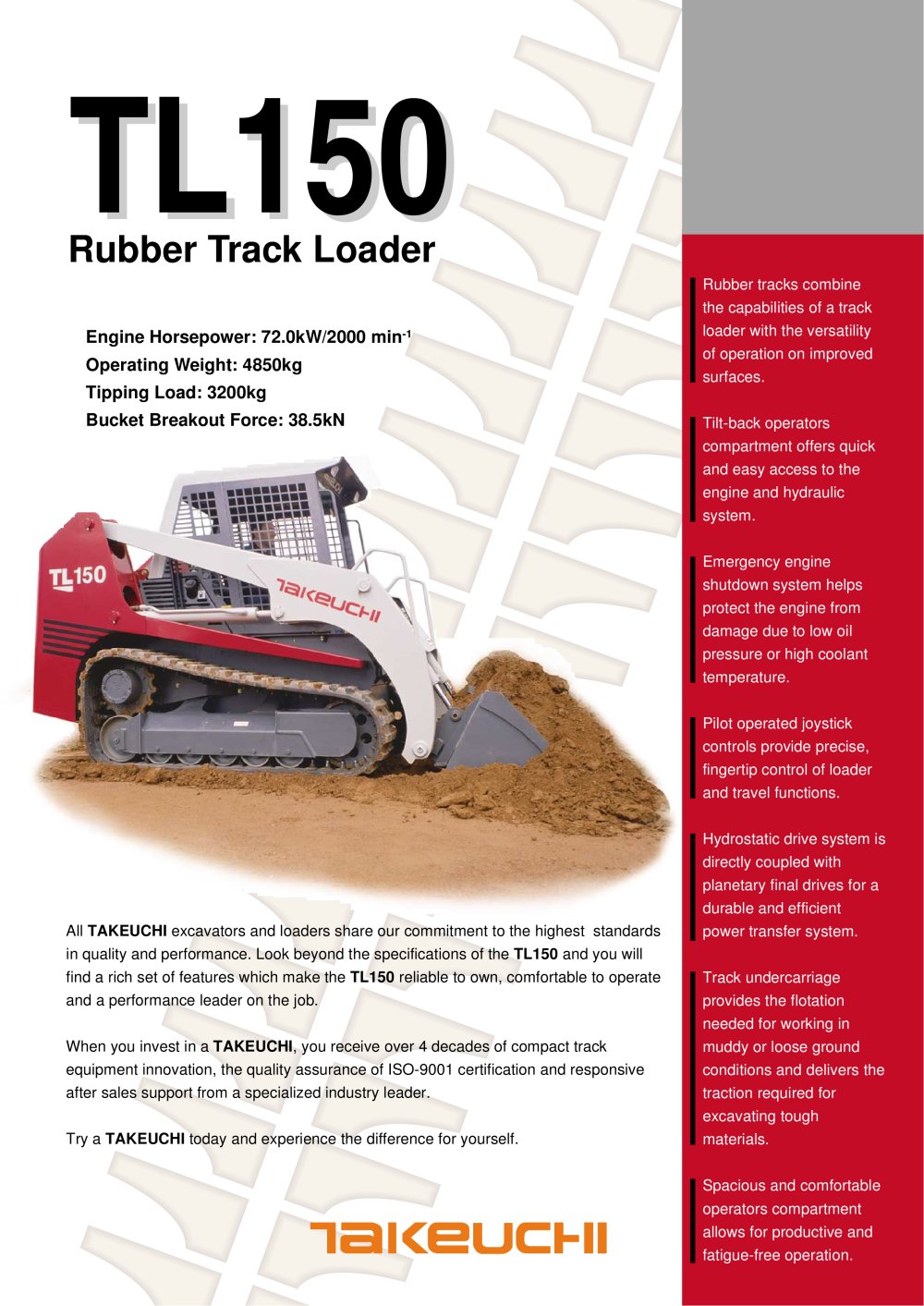

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:22.00pt "Arial", sans-serif; } .font4 { font:37.00pt "Arial", sans-serif; } .font5 { font:85.00pt "Arial", sans-serif; } TL150 Rubber Track Loader Engine Horsepower: 72.0kW/2000 min-1 Օ Operating Weight: 4850kg Tipping Load: 3200kg Օ Bucket Breakout Force: 38.5kN f**"^ Rubber tracks combine the capabilities of a track loader with the versatility of operation on improved surfaces. Tilt-back operators compartment offers quick and easy access to the engine and hydraulic system. Emergency engine shutdown system helps protect the engine from damage due to low oil pressure or high coolant temperature. Pilot operated joystick controls provide precise, fingertip control of loader and travel functions. Hydrostatic drive system is directly coupled with planetary final drives for a durable and efficient power transfer system. Track undercarriage provides the flotation needed for working in muddy or loose ground conditions and delivers the traction required for excavating tough materials. Spacious and comfortable operators compartment allows for productive and fatigue-free operation. All TAKEUCHI excavators and loaders share our commitment to the highest standards in quality and performance. Look beyond the specifications of the TL150 and you will find a rich set of features which make the TL150 reliable to own, comfortable to operate and a performance leader on the job. When you invest in a TAKEUCHI, you receive over 4 decades of compact track equipment innovation, the quality assurance of ISO-9001 certification and responsive after sales support from a specialized industry leader. Try a TAKEUCHI today and experience the difference for yourself. aiceuchii

Open the catalog to page 1

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.60pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:19.00pt "Arial", sans-serif; } .font6 { font:22.00pt "Arial", sans-serif; } .font7 { font:37.00pt "Arial", sans-serif; } .font8 { font:41.00pt "Times New Roman", serif; } achine specifications aiceucHi TL150 Rubber Track Loader standard features Turbo charged diesel engine  Low and high range travel speed 450mm...

Open the catalog to page 2
