Excavator TB175

Product catalog summary

Overview: The document provides detailed specifications and features of the Takeuchi TB175 Full Hydraulic Compact Excavator. It highlights the machine's dimensions, performance capabilities, hydraulic system, and additional features designed for operator comfort and safety.

Specifications: The TB175 excavator weighs 7,280 kg and is equipped with a 4-cylinder diesel engine (model 4TNV98) with a rated output of 42.8 kW at 2,100 min-1. The machine's bucket capacity is 0.185 m3 (struck) and 0.245 m3 (heaped), with a bucket width of 750 mm. The fuel tank capacity is 120 liters.

Dimensions: The overall dimensions in transport are 6,555 mm in length, 2,150 mm in width, and 2,570 mm in height. The rear slew radius is 1,720 mm, and the minimum ground clearance is 385 mm.

Performance: The excavator has a traction speed of 2.9/5.5 km/h, an upper slew speed of 10.7 min-1, and a gradeability of 30 degrees. The maximum digging power for the bucket is 52.7 kN, and for the arm, it is 36.7 kN. Ground pressure is 32.9 kPa.

Hydraulic System: The hydraulic system includes variable and gear pumps with a discharge rate of 69.3 x 2 + 53.1 + 10.7 L/min. The hydraulic tank capacity is 68 liters.

Features: The TB175 includes a boom and arm holding valve with an emergency overload alarm, a quick change control pattern selector valve, and optional long arm and hydraulically extendible dipper arm. It also features an air conditioner, automatic grease system, and a second auxiliary hydraulic service port.

Operator Comfort and Safety: The excavator is designed with a multi-adjustable suspension seat, isolation mounted cab, and console safety lockout levers. It includes rear-mounted work lights, a retractable seat belt, and side lights for night operation. The machine also has a two-speed travel switch and a self-adjusting hydraulic track tension system.

Environmental and Serviceability: The TB175 is equipped with a full opening rear engine compartment for easy servicing, an automatic fuel system air bleed, and hydraulic test ports for diagnostics. It meets stringent exhaust emission standards and provides reduced noise levels.

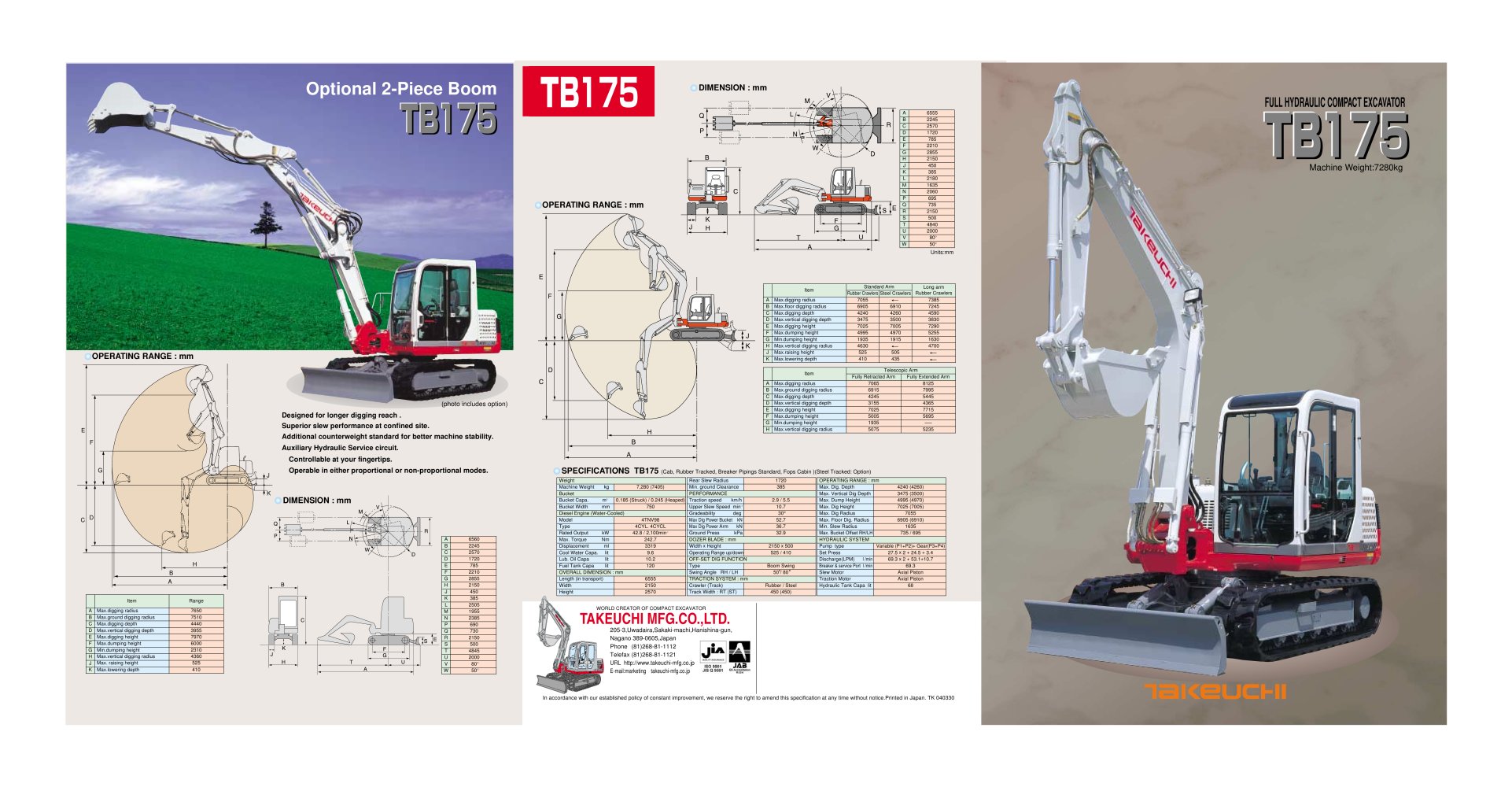

Catalog excerpts

Item Standard Arm Long armRubber Crawlers Rubber Crawlers Steel Crawlers A Max.digging radius 7055 7385 B Max.floor digging radius 6905 6910 7245 C Max.digging depth 4240 4260 4590 D Max.vertical digging depth 3475 3500 3830 E Max.digging height 7025 7005 7290 F Max.dumping height 4995 4970 5255 G Min.dumping height 1935 1915 1630 H Max.vertical digging radius 4630 4700 > J Max.raising height 525 505 K Max.lowering depth 410 435 Item Telescopic Arm Fully Retracted Arm Fully Extended Arm A Max.digging radius 7065 8125 B Max.ground digging radius 6915 7995 C Max.digging depth 4245 5445 > D Max.vertical digging depth 3155 4365 E Max.digging height 7025 7715 > G Min.dumping height 1935 H Max.vertical digging radius 5075 5235 > Weight Rear Slew Radius 1720 OPERATING RANGE : mm Machine Weight kg 7,280 (7405) Min. ground Clearance 385 Max. Dig. Depth 4240 (4260) Bucket PERFORMANCE Max. Vertical Dig Depth 3475 (3500) > Bucket Capa. m > 3 0.185 (Struck) / 0.245 (Heaped) Traction speed km/h 2.9 / 5.5 Max. Dump Height 4995 (4970) Bucket Width mm 750 Upper Slew Speedmin > -1 10.7 Max. Dig Height 7025 (7005) Diesel Engine (Water-Cooled) Gradeability deg 30 Max. Dig Radius 7055 Model 4TNV98 Max Dig Power Bucket kN 52.7 Max. Floor Dig. Radius 6905 (6910) Type 4CYL. 4CYCL Max Dig Power Arm kN 36.7 Min. Slew Radius 1635 Rated Output kW 42.8 / 2,100min > -1 Ground Press kPa 32.9 Max. Bucket Offset RH/LH 735 / 695 A 6560 Max. Torque Nm 242.7 DOZER BLADE : mm HYDRAULIC SYSTEM B 2245 Displacement ml 3319 WidthxHeight 2150x500 Pump type Variable (P1+P2)+Gear(P3+P4) C 2570 Cool Water Capa. lit 9.6 Operating Range up/down 525 / 410 Set Press 27.5x2+24.5+3.4 D 1720 Lub. Oil Capalit 10.2 OFF-SET DIG FUNCTION Discharge(LPM) l /min 69.3x2+53.1+10.7 E 785 Fuel Tank Capa lit 120 Type Boom Swing Breaker & service Port l /min 69.3 F 2210 OVERALL DIMENSION : mm Swing Angle RH / LH 50 / 80 Slew Motor Axial Piston G 2855 Length (in transport) 6555 TRACTION SYSTEM : mm Traction Motor Axial Piston H 2150 Width 2150 Crawler (Track) Rubber / Steel Hydraulic Tank Capa lit 68 J 450 Height 2570 Track Width : RT (ST) 450 (450) Item Range K 385 L 2505 A Max.digging radius 7650 M 1955 WORLD CREATOR OF COMPACT EXCAVATOR B Max.ground digging radius 7510 N 2385 C Max.digging depth 4440 P 690 D Max.vertical digging depth 3955 Q 730 > E Max.digging height 7970 R 2150 F Max.dumping height 6000 S 500 G Min.dumping height 2310 T 4845 H Max.vertical digging radius 4360 U 2000 J Max. raising height 525 V 80 >
