Excavator TB108
4Pages

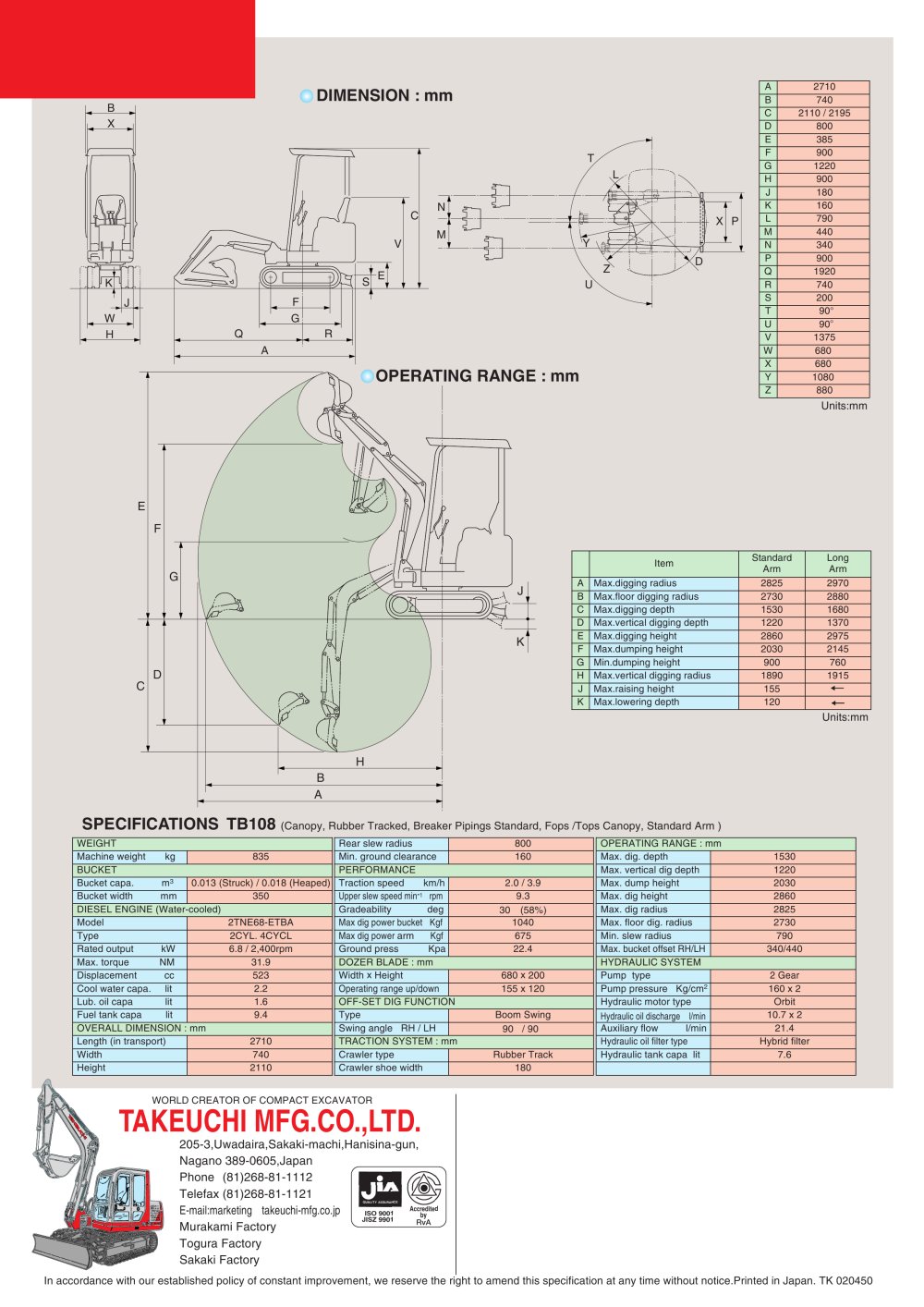

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:2.50pt "Arial", sans-serif; } .font1 { font:5.25pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:15.00pt "Arial", sans-serif; } .font6 { font:13.00pt "Franklin Gothic Medium", sans-serif; } DIMENSION : mm A 2710 H 740 C 2110 / 2195 D 800 385 F 900 G 1220 H 900 J 180 K 160 L 790 M 440 N 340 P 900 Q 1920 R 740 S 200 1 90° U 90° V 1375 W 680 X 680 Y 1080 Z 880 N ! V L P r M r \ OPERATING RANGE : mm Units:mm Item Standard Arm Long Arm A Max.digging radius 2825 2970 H Max.floor digging radius 2730 2880 C Max.digging depth 1530 1680 D Max.vertical digging depth 1220 1370 E Max.digging height 2860 2975 F Max.dumping height 2030 2145 G Min.dumping height 900 760 H Max.vertical digging radius 1890 1915 J Max.raising height 155 « K Max.lowering depth 120 «ח Units:mm SPECIFICATIONS TB108 (Canopy, Rubber Tracked, Breaker Pipings Standard, Fops /Tops Canopy, Standard Arm ) WEIGHT Rear slew radius 800 OPERATING RANGE : mm Machine weight kg 835 Min. ground clearance 160 Max. dig. depth 1530 BUCKET PERFORMANCE Max. vertical dig depth 1220 Bucket capa. m3 0.013 (Struck) / 0.018 (Heaped) Traction speed km/h 2.0 / 3.9 Max. dump height 2030 Bucket width mm 350 Upper slew speed min-1 rpm 9.3 Max. dig height 2860 DIESEL ENGINE (Water-cooled) Gradeability deg 30° (58%) Max. dig radius 2825 Model 2TNE68-ETBA Max dig power bucket Kgf 1040 Max. floor dig. radiu 2730 Type 2CYL. 4CYCL Max dig power arm Kgf 675 Min. slew radius 790 Rated output kW 6.8 / 2,400rpm Ground press Kpa 22.4 Max. bucket offset RH/LH 340/440 Max. torque NM 31.9 DOZER BLADE : mm HYDRAULIC SYSTEM Displacement cc 523 Width x Height 680 x 200 Pump type 2 Gear Cool water capa. lit 2.2 Operating range up/down 155 x120 Pump pressure Kg/cm2 160 x 2 Lub. oil capa lit 1.6 OFF-SET DIG FUNCTION Hydraulic motor type Orbit Fuel tank capa lit 9.4 Type Boom Swing Hydraulic oil discharge l/min 10.7 x 2 OVERALL DIMENSION : mm Swing angle RH / LH 90° /90° Auxiliary flow l/min 21.4 Length (in transport) 2710 TRACTION SYSTEM : mm Hydraulic oil filter type Hybrid filter Width 740 Crawler type Rubber Track Hydraulic tank capa lit 7.6 Height 2110 Crawler shoe width 180 WORLD CREATOR OF COMPACT EXCAVATOR TAKEUCHI MFG.CO.,LTD. 205-3,Uwadaira,Sakaki-machi,Hanisina-gun, Nagano 389-0605,Japan Phone (81)268-81-1112 Telefax (81)268-81-1121 E-mail:marketing ©takeuchi-mfg.co.jp Murakami Factory Togura Factory Sakaki Factory In accordance with our established policy of constant improvement, we reserve the right to amend this specification at any time without notice.Printed in Japan. TK 020450

tr.row {} td.cell {} div.block {} div.paragraph {}

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:22.00pt "Arial", sans-serif; } .font3 { font:22.00pt "Arial Black", sans-serif; } 5 iST Ease of opération ■ The new TB108 excavators retain the standard features, which have proven so popular on TAKEUCHI equipment in the past. All of which are designed in a compact size for confined area operation. ■ Safety lock out levers disable travel and operating controls during entry and exit from the excavator. Safety lock out pin disables swing for...

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } ■ Optimum ground leveling work precision-machined control valve block provides fine metering of oil flow for smooth control of excavator. ■ Water-cooled 2 cylinder engine 6.8 kW at 2400RPM: powerful out-put! quiet operation. ■ Tilt back engine cover provides easy access to engine and hydraulics. ■ Hybrid hydraulic oil filter extends the interval for filter change. ■ Adjustable one-piece PVC seat provides a comfortable "custom fit" for each operator,...
