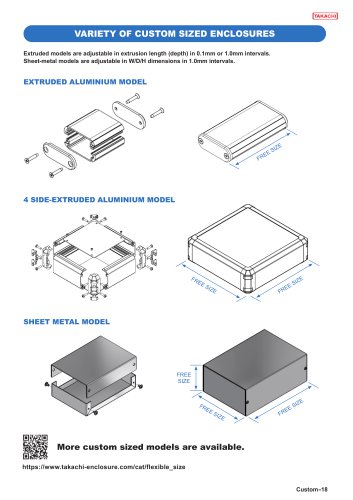

VARIETY OF CUSTOM SIZED ENCLOSURES Extruded models are adjustable in extrusion length (depth) in 0.1mm or 1.0mm intervals. Sheet-metal models are adjustable in W/D/H dimensions in 1.0mm intervals. EXTRUDED ALUMINIUM MODEL 4 SIDE-EXTRUDED ALUMINIUM MODEL SHEET METAL MODEL FREE SIZE More custom sized models are available. https://www.takachi-enclosure.com/cat/flexible_size Custom-18

INQUIRING CUSTOM SIZED ENCLOSURESNavigate to the free-size product page you wish to inquire on our website and click on the button indicated by the arrow. Selectable 22 different Width/Height profiles and specified length (depth) from 40 to 500mm In 1mm Intervals. 16 different color combinations can be specified. CUSTOM SIZE WEB QUOTATION 3D View -16 color types 3D View-With tilt legs ■ If there is no "WEB QUOTATION" click button, please send us your inquiry from the "INQUIRY FORM" on the CONTACT tab on our website. Specify size D(depth) ■■■ Enter dimensions in 1mm intervals. *NOTE: Specified...

After entering the quantity, click on the button indicated by the ➡ arrow to generate a Product No. After entering your details and the message in our INQUIRY FORM, click on the CONFIRM button. A TAKACHI sales representative will get in touch with you with a quote via e-mail.

■ Custom sized aluminium case with shockproof and anti-slip corner guards. ■ Adjustable width from 100 to 450mm, and height from 80mm to 400mm in 1mm increments. ■ Selectable in 11 different depth variations, ranging from 100 to 340mm. ■ 10 color types available with 2 case colors and 5 corner guard colors. ■ Standard size UCG series is also available. See UCG series product page for more information. Accessories (Optional parts) ■ 2 Hexagonal wrenches included. (Large type : corner guard screws • Small type : case screws)

Specify W and H dimensions in 1mm increments and select D dimension from the table below. CAUTION ■ W, H and D dimensions are external dimensions of aluminium case. (Exclude corner guard dimensions) ■ Refer to the table on page UCGS-3 for available dimensions. Select color code from the table below. Ѱ߄Ѱ߄ Black / Gray ְ߄Ѱ߄ Black / Navy ݰ߄Ѱ߄ Black / Emerald p߅°߄ Silver / Black Ѱ߅°߄ Silver / Gray ְ߅°߄ Silver / Navy ݰ߅°߄ Silver / Emerald To determine a product number, fill W, H, D and insert Color code in the following blank boxes. Color code Numbering example: W:222 x H:122 x D:280 and BE color...

UCGS Size Chart Refer to the table below for available sizes. CAUTION *D = 100mm : W dimension is limited to a maximum of 200mm. *D = 120mm and 140mm : W dimension is limited to a maximum of 250mm. *Max H dimension : W dimension * 1.5, up to a maximum of 400mm. *Corner radius : D lengths of 100, 120 and 140 = R5 • Other D lengths = R8 ■ [―] sizes are not available. D 100 120

Selectable depth Accessories (Optional parts) Components Product name Material Finish Mounting bracket Steel SPCC t=1.6 Trivalent chromate Calculation Formula H/2 -t (bottom cover thickness) - B (Preferred height under mounting plate) = G (Bracket selection reference value) Bracket Selection Example H (case height) = 95mm, D (case depth) = 200mm, B (Preferred height under mounting plate) = 15mm [t (bottom cover thickness) for [D (case depth) = 200mm] = 3.0mm.] If G (Bracket selection reference value) cannot be found on C, C1 or C2 on the Type A Type B Type C above chart, select the closest match....

■ Custom sized case with extruded aluminium covers for rigidity and toughness. Adjustable width from 50 to 450mm, and height from 30mm to 400mm in 1mm increments. ■ Selectable in 13 different depth variations, ranging from 60 to 340mm. ■ 4 color types available. UCS dimensions ■ DXF/DWG/PDF drawings available on our website. Accessories (Optional parts) Custom Sized Mounting Plate UCSC series See page UCSC PANEL RETAINER for UC • UCG UCF-26 See page 304 ■ See page UCS • UCGS • UCK-P for further details of t dimensions and A section. ■ Panels are covered with a protective film on one side.

Specify W and H dimensions in 1mm increments and select D dimension from the table below. Select color code from the table below. ■ Refer to the chart on page UCS-3 for available dimensions. 3 Corner Radius Select corner radius on top / bottom covers from the table below. 4 Vent Slit Select ventilation slit. 5 Rubber Feet Select rubber feet size from the table below. ■ Adhesive rubber feet can be freely affixed on. To determine a product number, fill W, H, D and insert Color code in the following blank boxes. □ W □ H □ D 2 Color code 0 Corner Radius 4 Vent Slit 5 Rubber feet Numbering example:...

UCS Size Chart Refer to the below chart for available sizes. CAUTION *For D = 60, 80 or 100mm : H dimension is limited to a minimum of 30mm *For D = 120mm and 140mm : H dimension is limited to a minimum of 31mm. *For D = 160mm ~ 280mm : H dimension is limited to a minimum of 36mm. *For D = 340mm : H dimension is limited to a minimum of 37mm. *Max H dimension : W dimension * 1.5, up to a maximum of 400mm.

For small to middle sized cases. Suitable for light load mounting. For middle to large sized cases. Wider W dimension assists in preventing the mounting plate from bending when heavy loads are mounted on. For middle to large sized cases. Wider D dimension assists in preventing the mounting plate from bending when heavy loads are mounted on. Components Part name UCSC actual dimensions Case D dimension Specify case dimensions and mounting plate type. Case W dimension Case D dimension Type(A, B or C) Example : Case W dimension = 140 mm, D dimension = 180 mm, and A type mounting plate. Refer to the...

Mount Example Operating temperature: -10°C ~ +60°C ■ Suitable to be installed into enclosures with material thickness of 1.0mm to 3.5mm. ■ Cover can be opened/closed without any tool for easy battery replacement. ■ 5 different battery layouts are available as AA x 2, AA x 3, AA x 4, AAA x 2 and AAA x 4. Each layout comes in 2 models: with lead-wire, and without lead-wire. ■ ©©markings prevents incorrect placement of battery. The dimensions of alkaline or manganese batteries may vary depending on country and brand. Use optional battery cushion sponge to prevent rattling.
