3-Terminal Fixed Positive Voltage Regulator

3-Terminal Fixed Positive Voltage Regulator

Product catalog summary

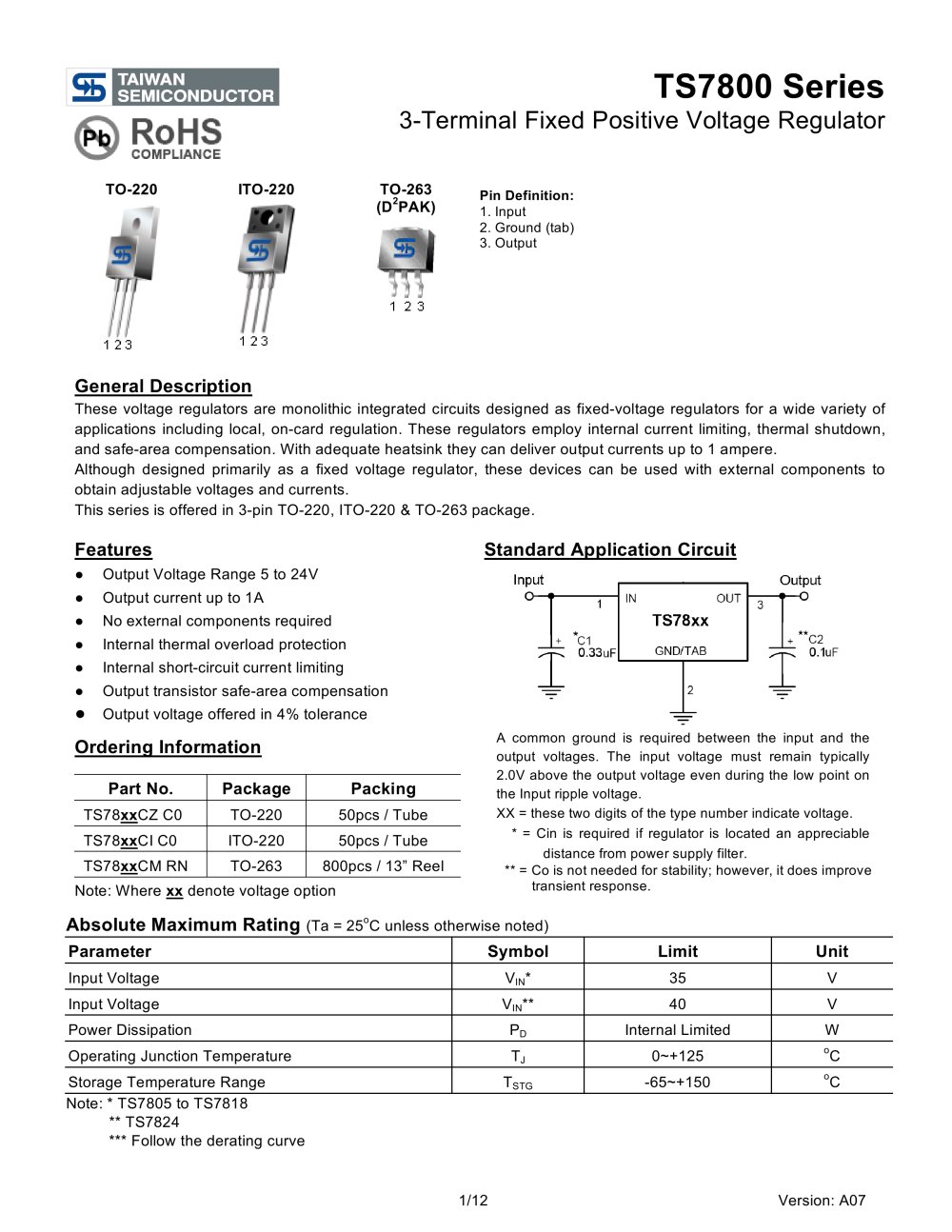

General Description
The TS7800 series are monolithic integrated circuits designed as fixed-voltage regulators for various applications, including local on-card regulation. They feature internal current limiting, thermal shutdown, and safe-area compensation, capable of delivering output currents up to 1 ampere with adequate heatsinking. These devices can also be used with external components for adjustable voltages and currents. Available in 3-pin TO-220, ITO-220, and TO-263 packages.

Features

Output Voltage Range: 5 to 24V
Output Current: Up to 1A
No External Components Required
Internal Thermal Overload Protection
Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation
Output Voltage Tolerance: 4%

Ordering Information
Part numbers vary by package type and voltage option, with specific packing details provided for each.

Absolute Maximum Ratings

Input Voltage: 35V (TS7805 to TS7818), 40V (TS7824)
Operating Junction Temperature: 0 to +125°C
Storage Temperature Range: -65 to +150°C

Electrical Characteristics
Detailed electrical characteristics are provided for each voltage variant (TS7805, TS7806, etc.), including parameters like output voltage, line and load regulation, quiescent current, output noise voltage, ripple rejection ratio, voltage drop, output resistance, short circuit current, peak output current, and temperature coefficient of output voltage.

Application Information
Includes figures and graphs illustrating performance characteristics such as peak output current, ripple rejection, output voltage, and quiescent current as functions of various parameters.

Mechanical Drawing
Provides dimensions and marking diagrams for the TO-220 package, including codes for output voltage, year, month, lot, and package type.

Overview: The document provides technical specifications and mechanical drawings for the TS7800 Series 3-Terminal Fixed Positive Voltage Regulator. It includes detailed dimensions for two package types: ITO-220 and TO-263, along with marking diagrams and important notices regarding product use.

Specifications: The document lists dimensions in both millimeters and inches for the ITO-220 and TO-263 packages. Key dimensions for ITO-220 include a width of 9.96 to 10.36 mm and a height of 15.07 to 16.07 mm. For TO-263, the width ranges from 10.000 to 10.500 mm, and the height from 14.605 to 15.875 mm.

Marking Diagram: The marking diagram explains the codes used on the regulator, including output voltage (e.g., 05 for 5V), year and month codes, and package codes (CI for ITO-220 and CM for TO-263).

Notice: The document includes a disclaimer stating that specifications are subject to change without notice. It disclaims liability for errors, inaccuracies, and any implied warranties. It also notes that the products are not intended for medical or life-sustaining applications, and users assume all risks associated with such uses.
