Thermal Test Vehicle -TTV 2.0
1 / 2 PagesView full catalog
Thermal Test Vehicle -TTV 2.0
Product catalog summary
Specifications:
- Power Density: Custom designs up to 500 W/cm², standard designs up to 150 W/cm².
- Voltage Range: Available from 12–600 V.
- Size Range: Standard sizes from 30–80 mm.
- Zone Architecture: Options for single or multi-zone configurations.
- Sensor Options: RTD, NTC, and TC available.
- Customization: Dimensions, power, sensors, and mounting can be customized.
Engineering Support:
- STEP / 3D CAD support available for design and engineering.
Thermal Test Vehicle (TTV) 2.0:
- Applications: AI, GPU, HPC, and data centers.
- Configurations: Thin Plate TTV, Multi-Zone TTV, Super High-Power TTV.
Configuration Details:
- Thin Plate TTV: Dimensions range from 30 × 30 to 80 × 80 mm, with power up to 4.2 kW for 80 × 80 mm. Suitable for AI GPU/package thermal simulation.
- Super High-Power TTV: Same dimension range, with power up to 12.8 kW for 80 × 80 mm. Used for cold plate, OAM, and CDU validation.
- Multi-Zone TTV: Customizable for application-specific needs, focusing on GPU/HBM hotspot and advanced cooling validation.
Thermal Test Emulator System:
- Rack-level power validation up to 300 kW, suitable for server, rack, and immersion-cooling validation.
Conclusion:
- The TTV 2.0 platform offers multiple configurations to suit various thermal validation needs in AI and data center applications.
See more
Catalog excerpts

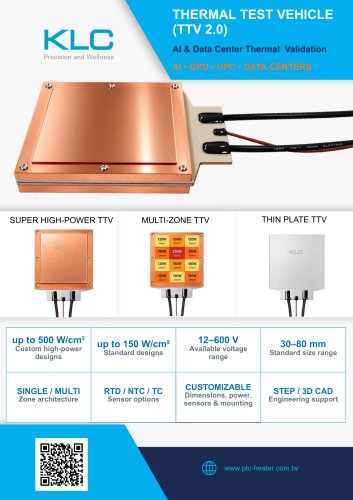

THERMAL TEST VEHICLE (TTV 2.0) AI & Data Center Thermal Validation SUPER HIGH-POWER TTV Custom high-power designs
Open the catalog to page 1
TTV 2.0 Platform | Multiple TTV Configurations Configuration Cold plate, OAM, and CDU validation Multi-Zone TTV Custom Application specific advanced cooling Thermal Test Emulator System / rack scale
Open the catalog to page 2All Taiwan King Lung Chin PTC Co., Ltd. catalogs and technical brochures
