Product catalog summary
Overview: The Multi-Media Abraser 5500 is a versatile testing attachment designed for measuring the abrasivity of fluids, powders, and semi-solids used in manufacturing processes. It is suitable for applications involving paints, pigments, adhesives, sealants, epoxies, pastes, detergents, and industrial additives.
Key Features:
  • Wear Simulation: Capable of recreating actual wear conditions on various contact surfaces such as rods, cylinders, nozzles, gears, and other moving parts.
  • Compatibility: Works with all standard Taber Abrasers and can be purchased as a separate attachment or pre-mounted on a single or dual Taber Abraser.
  • Testing Method: Utilizes a proven weight loss testing method where brass pins rotate in contact with a stainless steel wear disc, with the medium acting as the abrasive.
Components Included:
  • Wear Discs (3 each)
  • 250 gram Weights (3 each)
  • Brass Pins (package of 60)
  • Plastic Insert Dish (3 each)
  • Dish Cover
  • Spill Tray
  • Disc Removal Tool
  • 5/32 Hex Wrench
Standard Features:
  • Adjustable gearbox with two standard drive ratios for diverse media testing.
  • Variable load capacity from 250 to 2500 grams in 250 gram increments.
  • Customizable tests by replacing the universal wear disc or brass pin holder with user materials.
  • Easy attachment to Taber Abraser models 5130/5131 or 5150/5151.
Optional Features:
  • Heated table option for simulating a broader range of application conditions.
  • Optional Hi/Low gear set for enhanced testing flexibility.
Contact Information: For more information, contact Taber Industries at 1.800.333.5300 (U.S.) or 716.694.4000 (outside U.S.), email [email protected], or visit www.taberindustries.com.
See more

Catalog excerpts

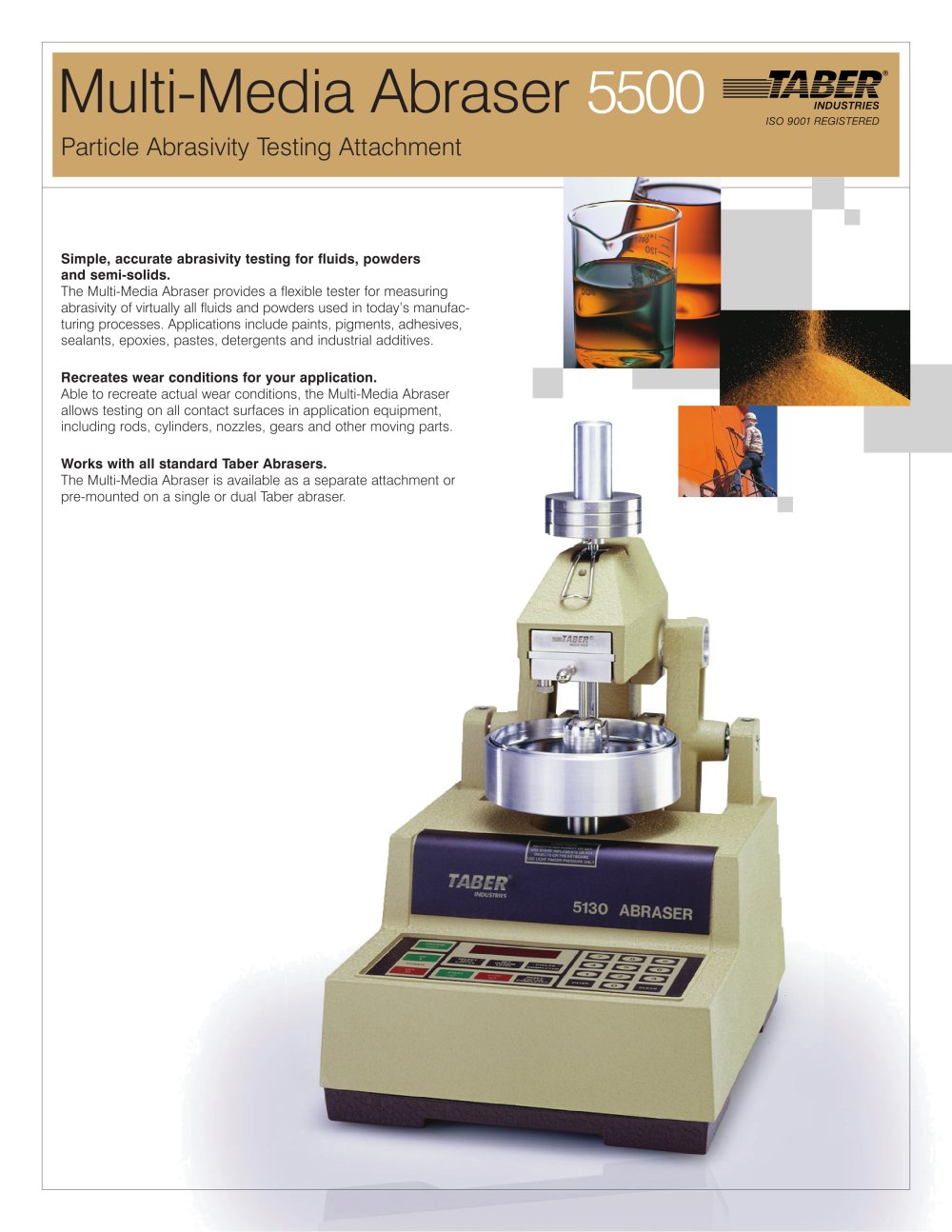

TABER Multi-Media Abraser-1

Simple, accurate abrasivity testing for fluids, powders and semi-solids. The Multi-Media Abraser provides a flexible tester for measuring abrasivity of virtually all fluids and powders used in todays manufac- turing processes. Applications include paints, pigments, adhesives,sealants, epoxies, pastes,detergents and industrial additives. Recreates wear conditions for your application. Able to recreate actual wear conditions, the Multi-Media Abraser allows testing on all contact surfaces in application equipment, including rods, cylinders, nozzles, gears and other moving parts. Works with all standard Taber Abrasers. The Multi-Media Abraser is available as a separate attachment or pre-mounted on a single or dual Taber abraser. >

 Open the catalog to page 1
TABER Multi-Media Abraser-2

Spline shaft Adjustable weight setting Rugged housing Wire handle weight lift Adjustable gear boxStainless steelwear disc Pin holder > Replaceable brass pins Aluminumspecimen dishDisposabledish insert >

 Open the catalog to page 2
