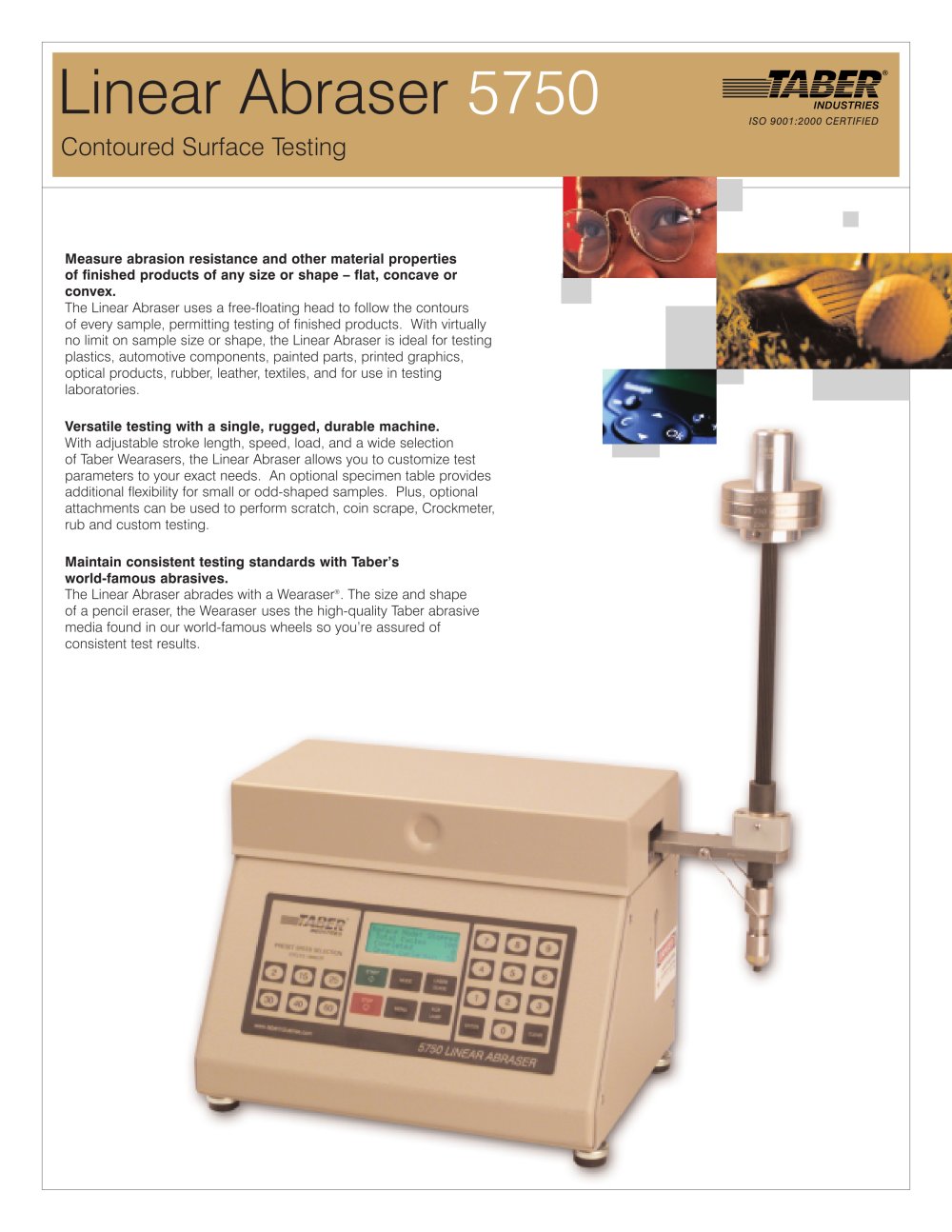

TABER Linear Abraser - 1

Linear Abraser 5750 Contoured Surface Testing Measure abrasion resistance and other material properties of finished products of any size or shape flat, concave or convex. The Linear Abraser uses a free-floating head to follow the contours of every sample, permitting testing of finished products. With virtually no limit on sample size or shape, the Linear Abraser is ideal for testing plastics, automotive components, painted parts, printed graphics, optical products, rubber, leather, textiles, and for use in testing laboratories. Versatile testing with a single, rugged, durable machine. With adjustable stroke length, speed, load, and a wide selection of Taber Wearasers, the Linear Abraser allows you to customize test parameters to your exact needs. An optional specimen table provides additional flexibility for small or odd-shaped samples. Plus, optional attachments can be used to perform scratch, coin scrape, Crockmeter, rub and custom testing. Maintain consistent testing standards with Taber's world-famous abrasives. The Linear Abraser abrades with a Wearaserͮ. The size and shape of a pencil eraser, the Wearaser uses the high-quality Taber abrasive media found in our world-famous wheels so you're assured of consistent test results.

Open the catalog to page 1
TABER Linear Abraser - 2

Linear Abraser 5750 Contoured Surface Testing Standard Features: Stroke lengths of 0.5", 1.0", 2.0", 3.0", 4.0" Variable stroke speed from 2 75 cycles per minute Preset stroke speed buttons for 2, 15, 25, 30,40, 60 cycles per minute Variable load from 350 ͭ 2100 grams with optional weight discs Stainless Steel Wearaser Collet for use with vitrified or resilient Wearsers Laser alignment guide Interface port for remote Start/Stop 115V/230V switchable Options: Wide selection of abradants using high quality abrasive media found in Taber abrading wheels: Calibrase CS-10F, CS-10, CS-17;...

Open the catalog to page 2
