Differential Pressure Measurement Model 2417

Differential Pressure Measurement Model 2417

Product catalog summary

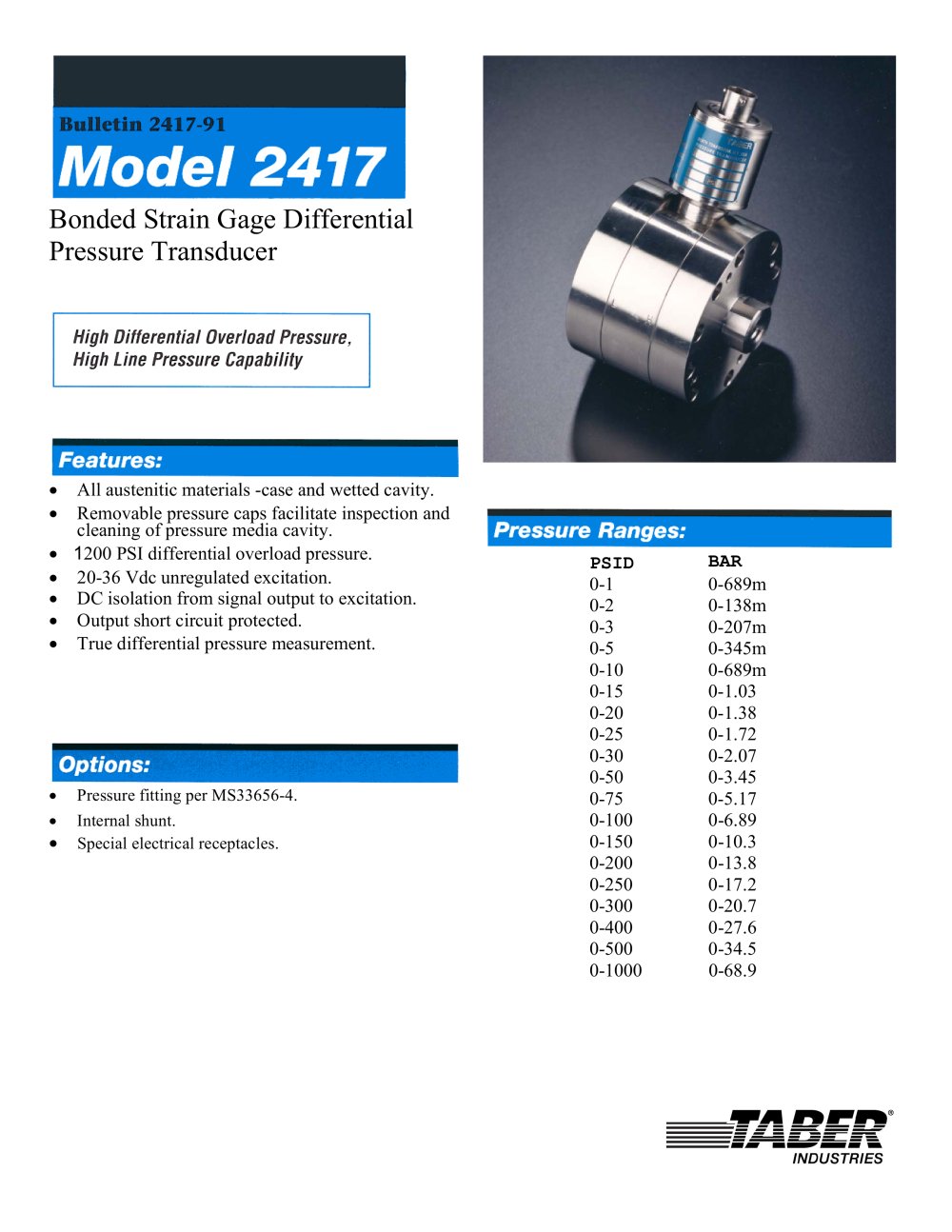

Overview: The document provides detailed specifications and features of a Bonded Strain Gage Differential Pressure Transducer, highlighting its construction, performance parameters, and operational guidelines.

Specifications:

Materials: The case and pressure caps are made of 316 stainless steel, diaphragms of 347 stainless steel, and pressure cap O-ring of Teflon®. The fill fluid used is Krytox® Oil.
Output: The full-scale output is 5.000 ±0.050 Vdc for a 50k ohm load or greater. Zero balance is 0.000 ±0.50 Vdc at +70°F (+21°C).
Pressure Range: The transducer can handle a differential overload pressure of 1200 PSID and a rated line pressure of 5000 PSIG maximum.
Temperature Range: Compensated temperature range is -10°F to +160°F (-23°C to +71°C), and operating temperature range is -40°F to +185°F (-40°C to +85°C).
Electrical: Requires 20 to 36 volts DC unregulated excitation, with reverse polarity protection. Current drain is typically 35 mAdc.

Performance Characteristics:

Linearity: Within ±0.25% FSO, ±0.50% FSO for 1 PSID range.
Hysteresis: Within 0.25% FSO, 0.50% FSO for 1, 2, and 3 PSID ranges.
Repeatability: Within 0.20% FSO.
Thermal Sensitivity Shift: Less than ±0.020% FSO per °F over the compensated temperature range.
Thermal Zero Shift: Less than ±0.010% FSO per °F over the compensated temperature range.

Design Features:

Pressure Connection: 7/16-20 internal thread per MS33649-4.
Enclosure: Entirely welded and hermetically sealed stainless steel.
Weight: Approximately 9.5 pounds (4.3 kg).

Additional Information: The transducer is equipped with special electrical receptacles and offers options for pressure connection fittings. It is designed for true differential pressure measurement and is protected against output short circuits.
