EZ
EZ
- High-speed process for cutting and bevelling pipes.
- Touch screen NC servo electric drive for ease of use.
- Customizable automation modes for various materials.
- Self-centering locking system for quick alignment and clamping.
- Built-in coolant pump with drip tray.
- Sealed electrical box housing NC controls and cabling.
- Range: 1 to 24 inches (30 - 620mm) outer diameter.
- Wall thickness: 6 - 40mm, with options for other thicknesses using accessories.
- Powerful 1.5KW Delta servo motor with Delta NC control.
- EZFAB6: 1 - 6 inches (30 - 170mm)
- EZFAB8: 2 - 8 inches (70 - 220mm)
- EZFAB12: 6 - 12 inches (170 - 320mm)
- EZFAB16: 10 - 16 inches (270 - 420mm)
- EZFAB20: 14 - 20 inches (370 - 520mm)
- EZFAB24: 18 - 24 inches (470 - 620mm)
- 2-inch stainless steel pipe at 45rpm takes 2 minutes.
- 4-inch stainless steel pipe at 30rpm takes 2.5 minutes.
- 6-inch carbon pipe at 35rpm takes 5 minutes.
- 8-inch stainless steel pipe at 20rpm takes 9 minutes.
Catalog excerpts
TAG E-Z FAB PIPE CUTTING AND BEVELLING MACHINE 1" to 24" SCAN QR CODE TO WATCH VIDEO
Open the catalog to page 1
A G E-Z FAB PIPE COLD CUTTING AND BEVELLING MACHINE O/D Locking Cold Pipe Cutting and Bevelling Machines RANGE: 1 to 24" o/d (30 - 620mm) • High speed process pipe cutting and bevelling • UNIQUE touch screen NC servo electric drive • Combines accuracy with safety • Several automation modes • Any material • Customisable to your needs The E-Z FAB is a revolutionary new cutting and bevelling system for pipes. Ideally suited, but not limited to workshops, and high productivity process environments. The E-Z FAB utilises a similar principle to our clamshell split frame cutting and bevelling machines....
Open the catalog to page 2
Self centering locking system for rapid alignment and clamping of pipe Built in coolant pump unit with drip tray as standard Sealed electrical box housing all NC controls and cabling Pipe cutting Pipe bevelling All shapes, sizes and angles available Range of formed cutting tools available for cutting all thickness’s of pipe and bevelling at any required angle
Open the catalog to page 3
A G E-Z FAB PIPE COLD CUTTING AND BEVELLING MACHINE Touch screen The E-Z FAB has been fitted with a powerful 1.5KW Delta servo motor with Delta NC control. This enables ease of use with all functions touch screen, we have used our 25 years experience to recommend pre-set speeds for pipe size/material as you can see below this enables very quick and easy set up with no human error. The numerically controlled (NC) servo motor offers unrivalled power and cut speeds, from a touch screen Delta control system, conveniently mounted on an adjustable stalk-arm for operating ease. The touch screen control...
Open the catalog to page 4
Global Locations: United States: SFE HOUSTON SPECIALIZED FABRICATION EQUIPMENT GROUP 4433 South Dr, Houston, Texas 77053, USA SFE TULSA SPECIALIZED FABRICATION EQUIPMENT GROUP 7136 South Yale Ave, Tulsa, Oklahoma 74136, USA International: SFE UNITED KINGDOM SPECIALIZED FABRICATION EQUIPMENT GROUP Unit 15 & 16 Grendon Industrial Estate, Grendon Underwood, Aylesbury, Buckinghamshire, HP18 0QX England Tel: +44 (0)1869 324 144 E-mail: [email protected] SFE BELGIUM SPECIALIZED FABRICATION EQUIPMENT GROUP Mosten 13, 9160 Lokeren Belgium SFE FRANCE SPECIALIZED FABRICATION EQUIPMENT GROUP Acces...
Open the catalog to page 6All T A G Pipe Equipment Specialists Ltd catalogs and technical brochures

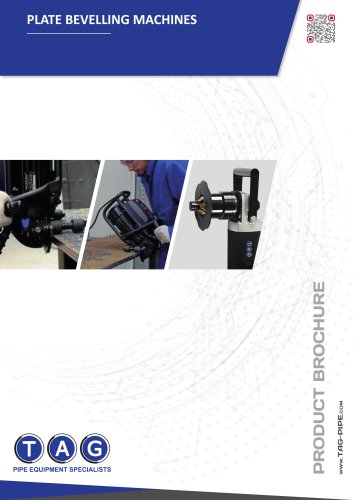

Plate Bevelling Brochure8 Pages
