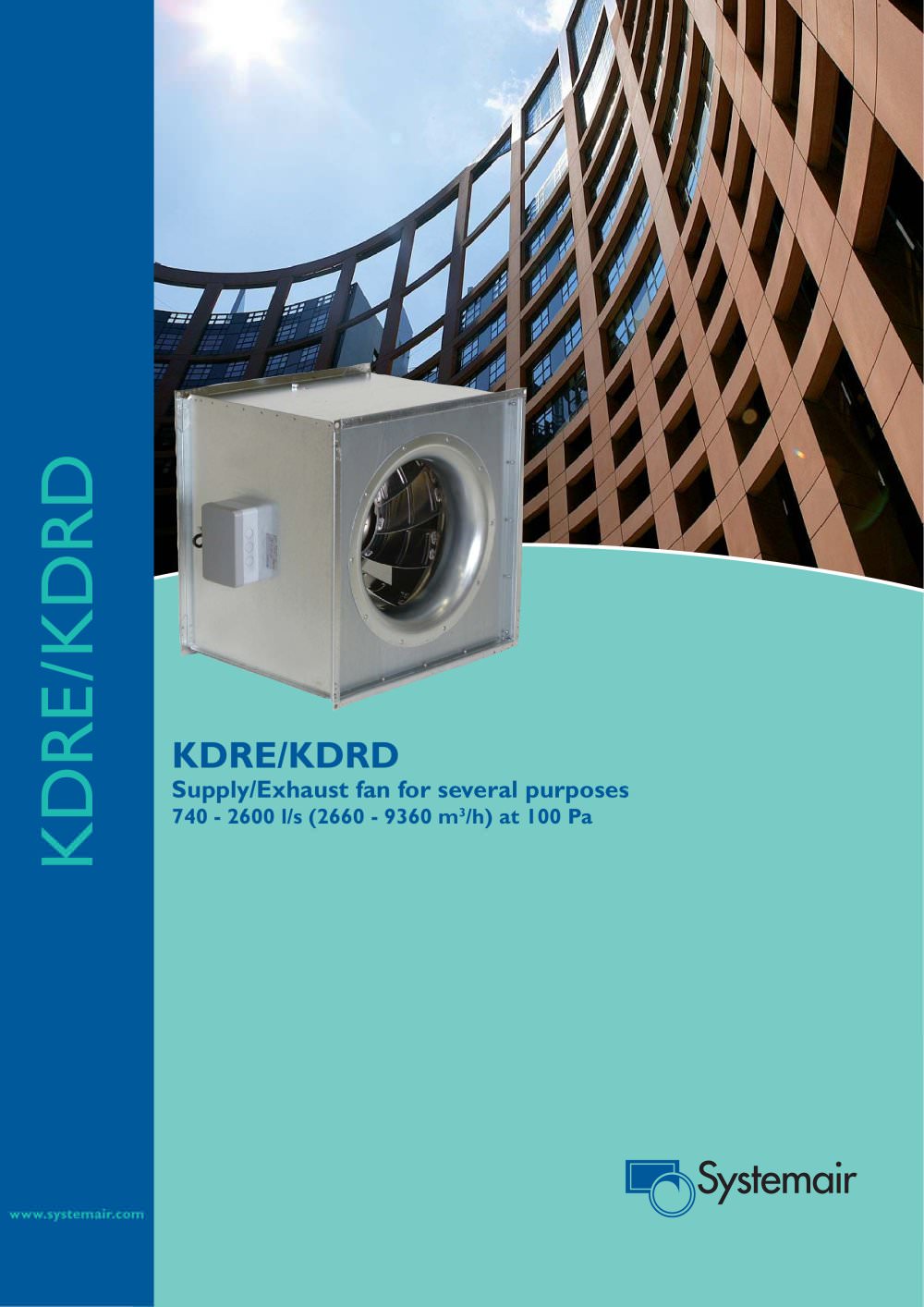

KDRE/KDRD KDRE/KDRD Supply/Exhaust fan for several purposes 740 - 2600 l/s (2660 - 9360 m3/h) at 100 Pa www.systemair.com
Open the catalog to page 1![KDRE/KDRD - 2](https://img.directindustry.com/pdf/repository_di/41007/kdre-kdrd-128729_2m.jpg)
2 KDRE/KDRD Filter box FFS Fan KRDE/KDRD Flexible connection DSK Electronic accessories, KDRD STDT Thermal contact motor protection. REV Isolator mounted on a bracket, leads connected l max 16 A. RTRD Manual fi ve-step transformer (with motor protection). RTRDU Manual fi ve-step transformer (with motor protection). Electronic accessories, KDRE RTRE Manual fi ve-step transformer, 1 phase, with motor protection. REE Thyristor speed controller- Combined fl ush or surface mounting, 1 phase REU Manual fi ve-step transformer, 1 phase, 2 speed REV Isolator mounted on a bracket, leads connected l...
Open the catalog to page 2![KDRE/KDRD - 3](https://img.directindustry.com/pdf/repository_di/41007/kdre-kdrd-128729_3m.jpg)
3 KDRE/KDRD fans have an external rotor motor with a mixed fl ow type impeller, i.e. the fan impeller is a combination between a radial and an axial impeller and provides the best from both impellers. The result is a fan that gives considerably more airfl ow than radial fans and still provides relatively high static pressure with a high level of effi ciency and a compact design. The casing is manufactured from galvanised sheet steel and provided with fl anges for a fast and effective installation. To protect the motor from overheating, the KDRE/KDRD fans have integral thermal contacts with...
Open the catalog to page 3![KDRE/KDRD - 6](https://img.directindustry.com/pdf/repository_di/41007/kdre-kdrd-128729_6m.jpg)
6 FFS Filter box ..A c/c ..B C FFS 45 447 470 492 502 FFS 50 502 520 547 532 FFS 55 550 573 595 562 FFS 65 661 680 707 642 FFS 70 697 720 742 642 B DSK Flexible connection ..A ..B ..C DSK 45 492 447 120 DSK 50 547 502 120 DSK 55 595 550 120 DSK 65 707 661 120 DSK 70 742 696 120 RBK Electrical heater B D RBK 45 450 370 RBK 50 500 370 RBK 55 550 370 RBK 65 660 370 Accessories KDRE/KDRD Duct heater for square ducts. Casing of alu-zink coated sheet metal with heating elements in stainless steel. The heater has built-in overheating protection with manual reset. Heat control by means of a...
Open the catalog to page 6![KDRE/KDRD - 7](https://img.directindustry.com/pdf/repository_di/41007/kdre-kdrd-128729_7m.jpg)
7 LDK 45-55 ..b ..B C D LDK 45 450 490 50 100 LDK 50 502 546 50 150 LDK 55 661 594 50 200 LDK 65-70 ..b ..B C D E F LDK 65 661 703 50 100 93 175 LDK 70 696 740 50 100 110 176 VBK Water heater ..A c/c ..D no. of rows VBK 45 492 470 78 2 VBK 50 547 520 78 2 VBK 55 595 573 98 2 VBK 65 707 680 98 2 Air Connection for thermostat (for frost protection device) Draining Water heating battery for square ducts The casing is made of galvanised steel, the heat transmission elements are copper tubes with aluminium fi ns, and with copper pipes for connecting water inlet and outlet. If the VBK is to be...
Open the catalog to page 7![KDRE/KDRD - 8](https://img.directindustry.com/pdf/repository_di/41007/kdre-kdrd-128729_8m.jpg)
Systemair AB • SE-739 30 Skinnskatteberg, Sweden Tel +46 222 440 00 • Fax +46 222 440 99 mailbox@systemair.se • www.systemair.com Systemair • Inhouse studio • February 2009 • Art no E8074
