![DV catalogue 2009 - 1](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_1m.jpg)

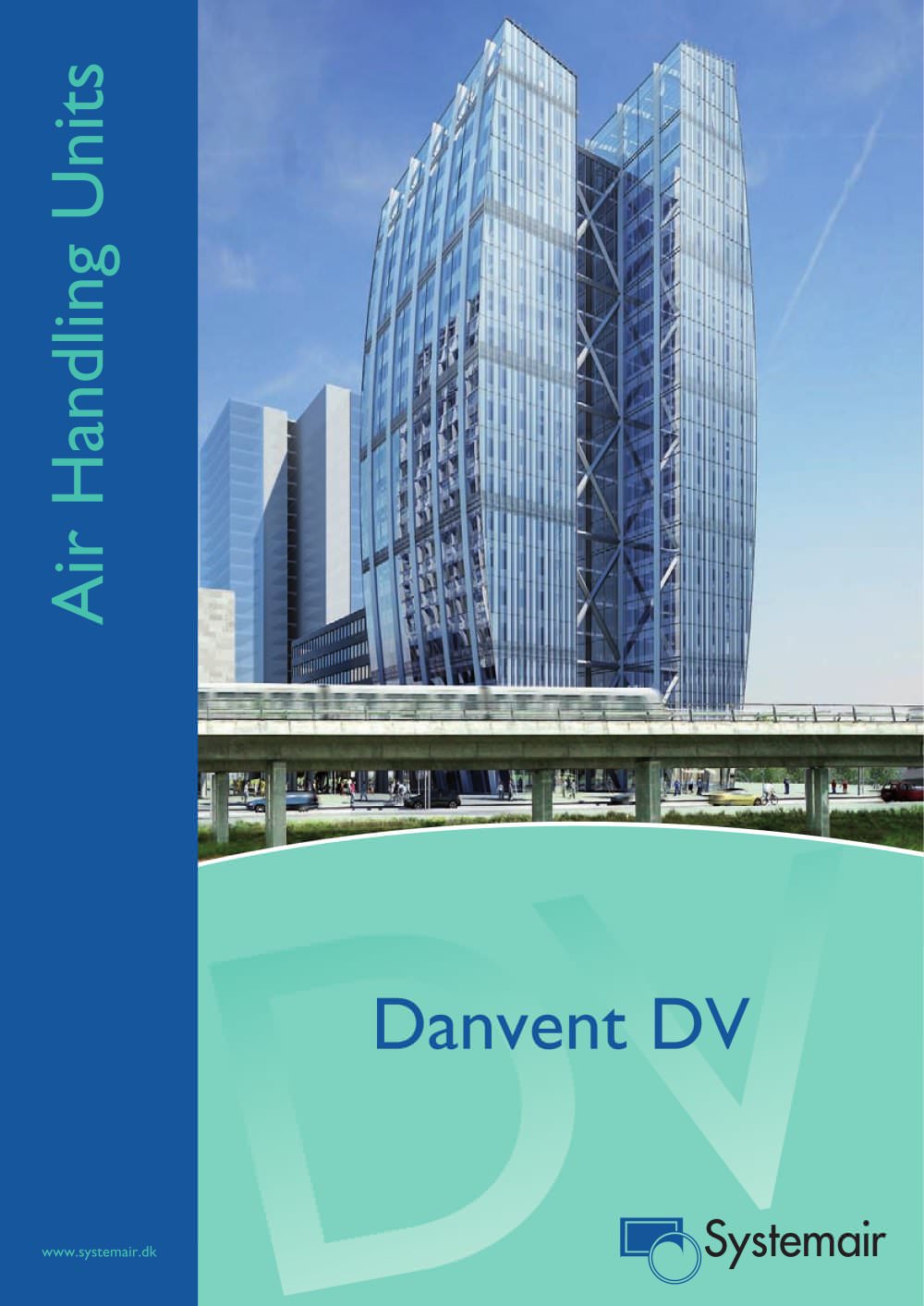

Air Handling Units Danvent DV www.systemair.dk
Open the catalog to page 1![DV catalogue 2009 - 2](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_2m.jpg)
Copyright: Systemair A/S 2. edition 2009 We accept no liability for printing errors or alterations of products made after final editing.
Open the catalog to page 2![DV catalogue 2009 - 3](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_3m.jpg)
Welcome to Systemair Air Handling Units We are delighted to present a new edition of our catalogue for air handling units in the range 0,4-24 m3/s (1.500-86.000 m3/h). It is the range Danvent DV, which is marketed under the group’s global trade name Systemair. The air handling unit range Danvent DV has been added many improvements and new developments. The result is an extremely flexible air handling unit, which fulfils our aim to develop products, which are innovative in both construction and function. The Danvent DV range compliments the existing range of air handling units available from...
Open the catalog to page 3![DV catalogue 2009 - 4](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_4m.jpg)
4 Introduction . . . . . . . . . . . . . . . . . . . . . . . . 3 - 5 About the Danvent DV . . . . . . . . . . . . . . . . . . . . . . . . 6 - 7 Product Information . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9 Combination Examples . . . . . . . . . . . . . . . . . . . . . . . . 10 - 13 Functions . . . . . . . . . . . . . . . . . . . . . . . . 14 - 19 Damper DVA . . . . . . . . . . . . . . . . . . . 20 - 21 Damper DVB . . . . . . . . . . . . . . . . . . . 22 - 23 Mixing Damper DVM. . . . . . . . . . . . . . . . . . . 24 - 25 Mixing Damper DVP . . . . . . . . . . . . . . . . . . . 26...
Open the catalog to page 4![DV catalogue 2009 - 6](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_6m.jpg)
6 About the Danvent DV Danvent DV is designed as a modular air handling unit. Each function is placed into an air handling unit casing consisting of one or more modules. The modular functions can be configured for many different applications to make up the heart of any ventilation system. The modular construction is highly flexible, and the possibilities often only limited by the imagination. The flexibility makes it possible to combine the most optimized functions, e.g. the type of heat exchangers and fans with the highest efficiencies, combined with filters and coils with low pressure...
Open the catalog to page 6![DV catalogue 2009 - 7](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_7m.jpg)
7 About the Danvent DV SystemairCAD calculates and optimizes the energy consumption of the air handling unit, and the calculated data are the basis for Eurovent certification and energy classification. SystemairCAD also calculates the Life Cycle Cost (LCC calculation) of the Danvent DV. To make it even more user-friendly, the program uses a number of combination examples, or basic variants, to which functions can be added or removed quickly and easily, until the ideal air handling unit is completely customised. Fully-dimensioned drawings, plus logical construction and presentation of...
Open the catalog to page 7![DV catalogue 2009 - 8](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_8m.jpg)
8 Danvent DV Product Information Air Handling Unit Casing Rigid frames with sound and thermal insulated panels. Materials Frames Closed 1,3/1,5 mm steel profile. Corrosion protection: Alu-zinc AZ 185. Corners Strong die cast aluminium corner pieces. Panels Insulation sandwiched between two 0,8 mm steel sheets. The steel sheets are corrosion protected with alu-zinc AZ 185. Corrosion protection Steel sheets which are protected with alu-zinc AZ 185 ensure a corrosion protection in class C4 according to the standard EN ISO 12944.2. Insulation Sound and thermal insulating mineral wool, which is...
Open the catalog to page 8![DV catalogue 2009 - 9](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_9m.jpg)
9 Standards The Danvent DV design is based on the demands in following CEN and ISO standards: EN 305 Heat exchangers. Definition and test procedures. EN 308 Heat exchangers. Test procedures. EN 779 Particulate air filters for general ventilation. EN 1751 Aerodynamic testing of dampers and valves. EN 1886 Air handling units. Mechanical performance. EN 13053 Ratings and performance for units and components. EN 13779 Ventilation for non-residential buildings. Performance requirements. EN 60204.1 Electrical equipment of machines. EN ISO 3741 Determination of sound power level in reverberation...
Open the catalog to page 9![DV catalogue 2009 - 14](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_14m.jpg)
14 Danvent DV Functions Dampers The dampers used in Danvent DV comply with EN 1751 sealing class 3. They have contra-rotating aerodynamically formed aluminium blades that ensure a low pressure loss when open. The blades are equipped with special rubber sealing strips between the blades themselves and the frame, to prevent air getting in. For very cold areas, the blades can also be insulated. The dampers ensure a long and trouble-free operation, as the blades are mounted on sturdy square profile shafts and service-free synthetic bearings with large bearing surfaces. A pivoting system placed...
Open the catalog to page 14![DV catalogue 2009 - 15](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_15m.jpg)
15 Functions This system also ensures that the filter cells form a tight seal with the unit frame to comply with EN 1886. All seals are fixed to the unit and do not need replacement when installing new filters. Filter cells from all major filter manufacturers can be used in the DVF unit. Rotary Heat Exchanger DVC DVC is a rotary heat exchanger with a high level of efficiency that can also be used to transfer moisture from warm and humid extract air. This type of heat exchanger is the most efficient of the various heat exchanger systems and is also the most compact, due to its short length....
Open the catalog to page 15![DV catalogue 2009 - 16](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_16m.jpg)
16 Danvent DV Functions Run-around Coil Heat Exchangers DVR DVR is a heat exchanger system where a mixture of water and glycol is circulated between a heating coil positioned in the supply airflow and a cooling coil positioned in the extract airflow. The transfer of heat takes place via a piped circuit that must be fitted after the unit is assembled. DVR heat exchangers have an efficiency of up to 55%. The effectiveness of the system is dependant on its construction and the volume and type of water/glycol mixture circulating between the coils. Run-around coil heat exchangers are used where...
Open the catalog to page 16![DV catalogue 2009 - 17](https://img.directindustry.com/pdf/repository_di/41007/dv-catalogue-2009-128694_17m.jpg)
17 be fitted on the connection pipe on the outside. A drip tray is fitted in the coil section to collect condensation. The drain outlet must be connected to a water trap with sufficient locking height. To eliminate the risk of water droplets being carried into the airflow, the DVK can be supplied with a built-in droplet eliminator. The coil is fully built-in the unit as standard, but comes also in a MAX version where the coil is wider than the standard unit width. This will reduce the air velocity. Cooler DVU Cooler DVU in size 10-40 is a complete cooling system, with all cooling components...
