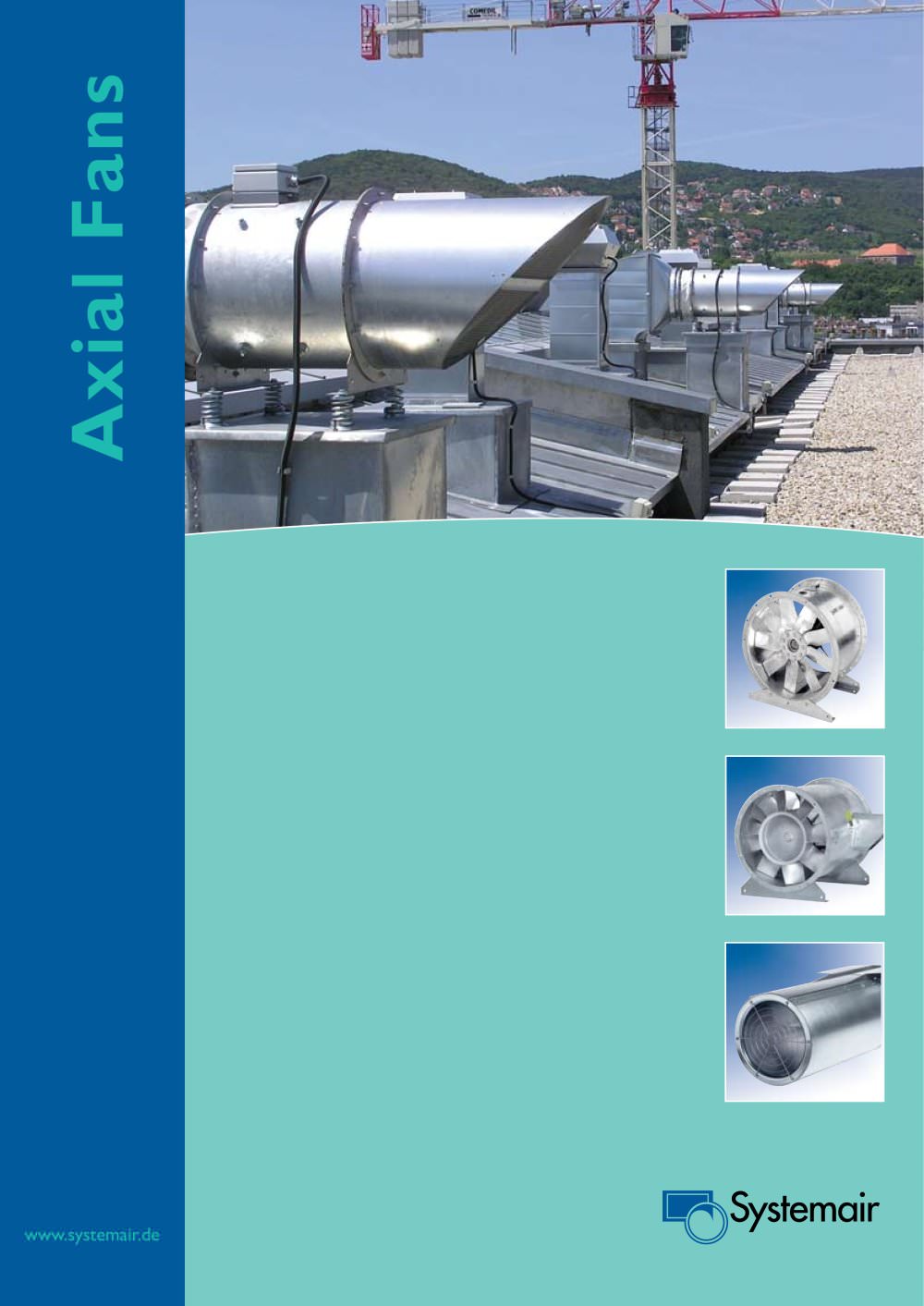

Axial Fans www.systemair.de

2 Systemair GmbH is part of the Systemair Group with headquarters in Skinskatteberg, Sweden. The production facilities are located in Sweden, Norway, Denmark, Germany, Slovenia, Lithuania, Canada, Slovakia and Spain with a total production area of more than 130 000 sqm. Systemair GmbH, Boxberg-Windischbuch, Germany Systemair AB, Skinnskatteberg, Sweden Complete Range of Axial Fans Whatever requirements and applications you may have, the axial fan range of Systemair is just as global and comprising. The fields of operation range from huge shopping centres, to underground car parks, up to...

Open the catalog to page 2

3 Contents General technical description 4 - 5 Axial fans AXC 6 - 7 Smoke extract axial fans 300°C / 120 min. AXC (B) 8 - 9 Stock ranges AXC / AXC (B) 10 - 11 Smoke extract axial fans 400°C / 120 min. HA 12 - 13 Smoke extract axial fans 600°C / 120 min. HABV 14 - 15 Bifurcated axial fans AXCBF 16 - 17 Explosion proof medium pressure axial fans AXC-EX / AXCBF-EX 18 - 21 Car park jet fans AJR / AJ8 22 - 23 Tunnel jet fans AJ (T) 24 - 27 Special applications 28 List of references 29 - 31 Fan Specifications 32 - 39 Systemair test rigs , Skinnskatteberg, Sweden Systemair test rigs,...

Open the catalog to page 3

44 General technical description Systemair offers a wide range of axial fans in various designs. For most applications in the ventilating or air conditioning sector as well as in a lot of industrial and commercial applications a Systemair fan can be selected. Some examples are: mining, tunnelling with truly reversible impellers, car park ventilation, applications in explosion hazardous areas and high temperature fans to extract heat and smoke in case of a fire. Finding the right solution is important from many aspects: Trust in the product and producer, safety in the application, lowest...

Open the catalog to page 4

55 GFL Counterflange RSA (B) Silencer EV-AXC EVH (F400) EVH (F600) Flexible connection LRK (F) Air operated damper Fan ESD-F Bellmouth inlet SG Protection guard MFA Mounting feet SD (4x) AV rubber mounts MP (4x angle 90°) Mounting brackets FSD (4x) AV spring mounts Fan installation with accessories Testing: DIN ISO 5801: “industrial fans, performance testing…” DIN 24163: “fans, performance testing…” AMCA 210-99: “Laboratory methods of testing fans for aerodynamic performance rating” EN 12101-3: “smoke and heat control systems - powered smoke and heat exhaust…” ISO 13350: Jet fans...

Open the catalog to page 5

66 Standard features: • Aerofoil impeller with adjustable pitch angle for maximum efficiency • Die cast aluminium hub and blades • Long casing, hot dip galvanized steel, to DIN EN ISO 1461 • Spun flanges for high rigidity, to DIN 24154 series 3 • Terminal box in IP65 mounted at the outside of the casing for easy wiring • Single- or three-phase motors IP55, insulation class F, in accordance with EN 60034-5/IEC 85 • Suitable for operating temperatures of up to 55°C • Inspection hole to verify correct direction of rotation AXC Axial Fans The Systemair AXC range of long cased medium pressure...

Open the catalog to page 6

77 315 355 400 450 500 560 630 710 800 900 1000 1250 0 15.000 30.000 45.000 60.000 75.000 90.000 105.000 120.000 135.000 150.000 165.000 180.000 195.000 210.000 225.000 240.000 255.000 0 15.000 30.000 45.000 60.000 75.000 90.000 105.000 120.000 135.000 150.000 165.000 180.000 195.000 210.000 225.000 240.000 255.000 max. 2.150 Pa static max. 1.600 Pa static max. 1.300 Pa static max. 1.000 Pa static max. 780 Pa static max. 660 Pa static max. 840 Pa static max. 1.100 Pa static max. 1.200 Pa static max. 1.600 Pa static max. 2.600 Pa static Air volume [m³/h] Size 1400 AXC-G 1600 315 355 400 450...

Open the catalog to page 7

88 AXC (B) Smoke Extract Axial Fans AXC (B) Smoke extract axial fans certified for 300°C/2h in accordance with EN 12101-3 AXC (B) AXC (B)-G The Systemair AXC (B) range of long cased smoke extract axial fans is available in sizes from 315 up to 1.600 mm impeller diameter. The adjustable pitch angle setting offers a wide performance and maximum flexibility to match precisely individual airflow requirements. The AXC (B) axial fans have been performance tested in accordance with DIN ISO 5801, DIN 24163 and AMCA 210-99 on the Systemair fan test rig. High temperature testing at Technical...

Open the catalog to page 8

99 Performance guide AXC (B) for 300°C / 120 min. 0 15.000 30.000 45.000 60.000 75.000 90.000 105.000 120.000 135.000 150.000 165.000 180.000 195.000 210.000 225.000 315 355 400 450 500 560 630 710 800 900 1000 1120 1250 1400 1600 Air volume [m³/h] Size AXC (B) max. 900 Pa static - 6-pole max. 1300 Pa static - 4-pole max. 720 Pa static - 6-pole max. 1100 Pa static - 4-pole max. 750 Pa static - 4-pole max. 600 Pa static - 4-pole max. 500 Pa static - 4-pole max. 400 Pa static - 4-pole max. 1400 Pa static - 2-pole max. 950 Pa static - 2-pole max. 750 Pa static - 2-pole max. 600 Pa static -...

Open the catalog to page 9

1122 HA Smoke Extract Axial Fans HA (F) Smoke extract axial fans certified for 400°C/2h in accordance with EN 12101-3 HA (F) The Systemair HA (F) range of long cased smoke extract axial fans is available in sizes from 315 up to 1.600 mm impeller diameter. The HA (F) axial fans have been performance tested in accordance with DIN ISO 5801, DIN 24163 and AMCA 210-99 on the Systemair fan test rig. High temperature testing at Technical University Munich, Germany. Three years warranty make it a safe choice. Impellers Fully welded steel impellers tailored to match precisely individual air flow and...

Open the catalog to page 12

1133 Performance guide HA for 400°C / 120 min. Selection programme on www.systemair.de 0 50.000 100.000 150.000 200.000 250.000 Air volume [m³/h] 450 500 560 630 710 800 900 1.000 1.120 1.250 1.400 1.600 max. 510 Pa static max. 370 Pa static max. 310 Pa static max. 790 Pa static max. 800 Pa static max. 540 Pa static max. 440 Pa static max. 410 Pa static max. 300 Pa static max. 300 Pa static max. 640 Pa static max. 750 Pa static max. 1000 Pa static max. 600 Pa static max. 880 Pa static HA 400 °C Size 800 900 1.000 1.120 1.250 1.400 1.600 1.800 HABV 600 °C max. 430 Pa static max. 570 Pa...
