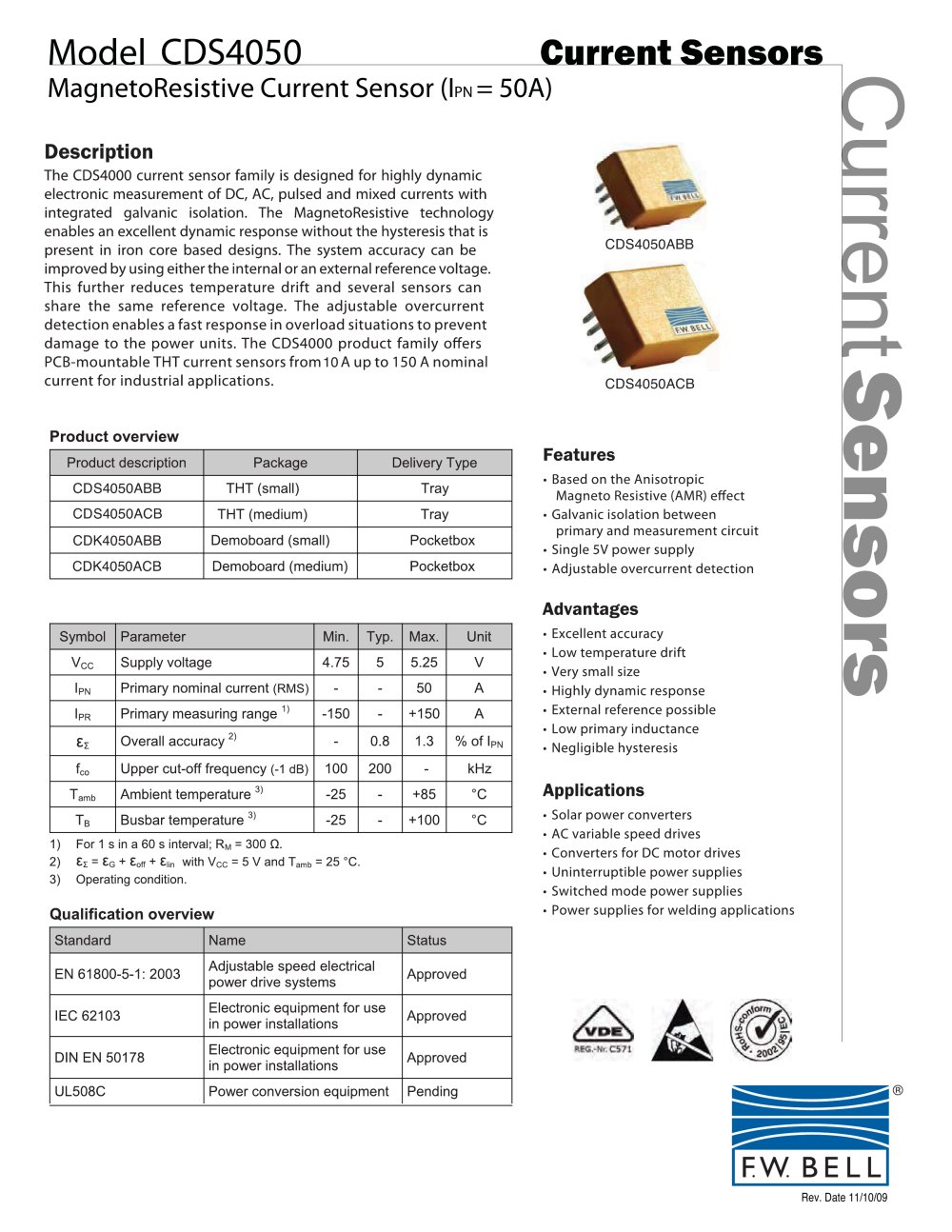

Magnetoresistive Current Sensors CDS4050

Product catalog summary
Product Overview: The CDS4050 is part of the CDS4000 product family, which includes PCB-mountable THT current sensors designed for industrial applications. These sensors support nominal currents ranging from 10 A to 150 A.
Product Variants: The document lists several models with their respective current ratings:
  • CDS4010ABB-Ix: 10 A nominal, 30 A maximum
  • CDS4015ABB-Ix: 15 A nominal, 45 A maximum
  • CDS4025ABB-Ix: 25 A nominal, 75 A maximum
  • CDS4050ABB-Ix: 50 A nominal, 150 A maximum
  • CDS4050ACB-Ix: 50 A nominal, 150 A maximum
  • CDS4100ACB-Ix: 100 A nominal, 300 A maximum
  • CDS4125ACB-Ix: 125 A nominal, 375 A maximum
  • CDS4150ACB-Ix: 150 A nominal, 450 A maximum
Product Status: The products are currently undergoing qualification tests and are available as samples. The status may have changed since the publication of this document, and the latest information can be found on the manufacturer's website.
Figures: The document references figures for pinning configurations of specific models (e.g., CDS4050ABB-IA and CDS4050ACB-IA), but these figures are not included in the text provided.
