Catalog excerpts

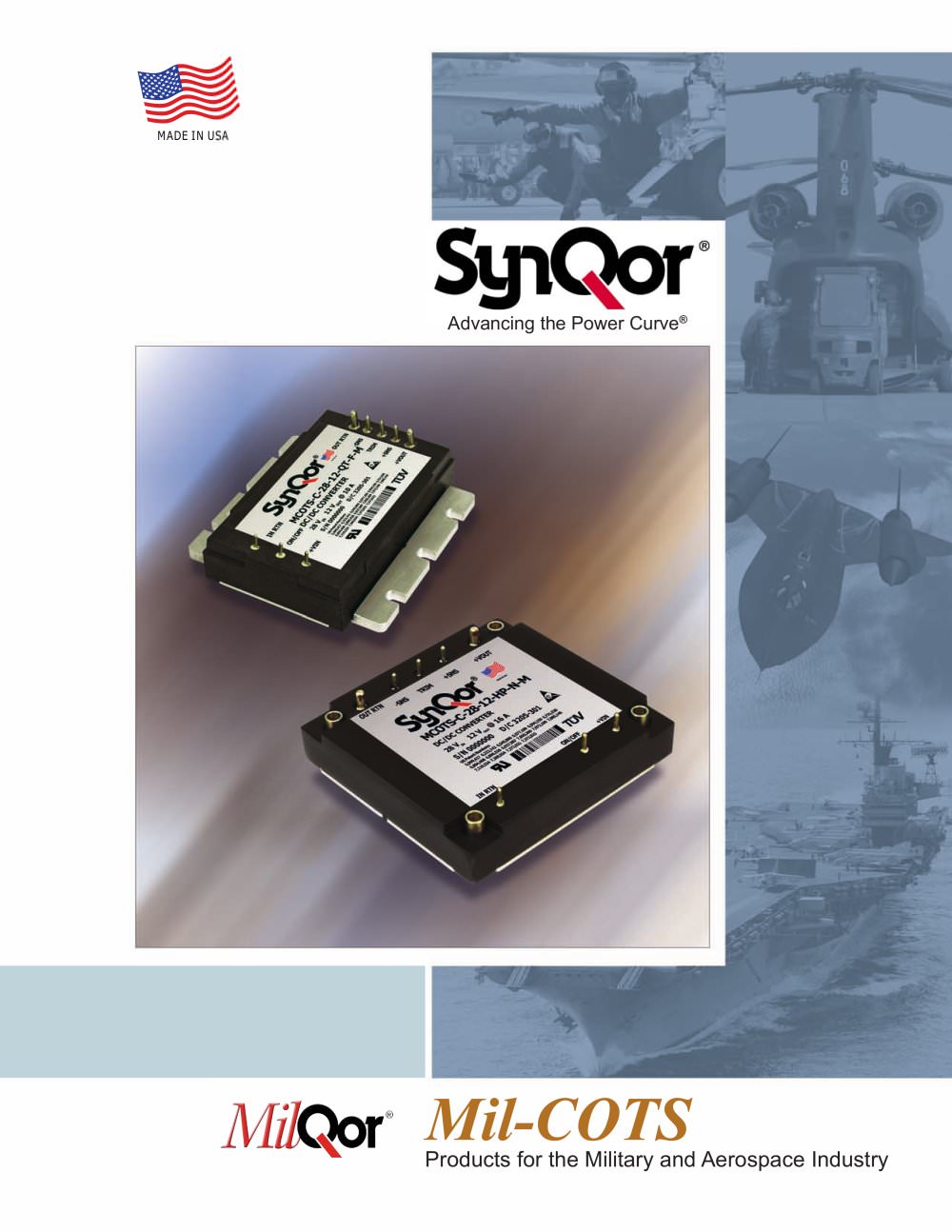

MADE IN USA Mil-COTS Products for the Military and Aerospace Industry Advancing the Power Curve®
Open the catalog to page 1SynQor Headquarters 155 Swanson Road, Boxborough, MA 01719-1316 USA | 1.888.567.9596 (USA only) | www.synqor.com 3 PRODUCT FEATURES Operational Mechanical Protection/Control Military Standards ¡¡High efficiency synchronous rectifier designs ¡¡High power density ¡¡Smaller, lower power modules require less board area and provide greater design flexibility ¡¡Three wide-range continuous (transient) input voltages — 16-40(50)V, 34-75(90)V and 155-425(475)V ranges ¡¡Fixed switching frequency, yields predictable EMI filtering ¡¡Wide variety of output voltages ¡¡Thirteen output voltages from 1.2V...
Open the catalog to page 34 SynQor Headquarters 155 Swanson Road, Boxborough, MA 01719-1316 USA | 1.888.567.9596 (USA only) | www.synqor.com Model Number Current Vin Continuous Vin Transient Vin Absolute Maximum Isolation Voltage Maximum DC Resistance @ 100°C Differential Mode Attenuation (250kHz) Common Mode Attenuation (250kHz) MCOTS-F-28-P 30A 16-40V 50V 1s 60V 2250V 20mÙ >80dB >36dB MCOTS-F-48-P 20A 34-75V 100V 0.1s 100V 2250V 32mÙ >80dB >36dB MCOTS-F-270-P 3A 155-400V 475V 0.1s 550V 2250V 1.4Ù >60dB >50dB Screening Process Description S-Grade M-Grade Baseplate Operating Temperature -55°C to+100°C -55°C to+100°C...
Open the catalog to page 4SynQor Headquarters 155 Swanson Road, Boxborough, MA 01719-1316 USA | 1.888.567.9596 (USA only) | www.synqor.com 5 (60.96)2.40(50.8)2.001.40(35.5)1.00(25.4)0.70(17.8)0.40(10.2)4.60(116.8)1234956874 places M3 standoff Available Threaded & Non-threaded 4.20(106.7)5678M3ThreadedStandoff4Places12342.00(50.8)0.400(10.16)1.000(25.40)1.400(35.56)0.700(17.78)1.90(48.3)0.400(10.16)1.400(35.56)1.90(48.3)2.486±.020(63.14±0.5)0.233±.020(5.92 ±0.5).543±.020(13.79±0.5)2.386±.020(60.6±0.5)0.243±.020(6.17±0.5)1.536±.020 (39.01±0.5)1.030 (26.16)0.600 (15.24)0.300...
Open the catalog to page 5Founded in 1997, SynQor® has become the technology, quality and service leader for high efficiency dc-dc converters for the telecom/datacom marketplace. The PowerQor®, BusQor®, DualQor®, iQor™, and NiQor® product lines, combined with SynQor’s unmatched lead-times, flexibility, design support and lowest total cost of ownership have become the benchmark sought by SynQor’s worldwide customer base. In 2004, SynQor began its successful entry into the military, medical and industrial market segments with the MilQor®, InQor® and ACuQor® product lines. These new technology leading dc-dc and ac-dc...
