VIBRO-ENERGY > ROUND SEPARATORS >

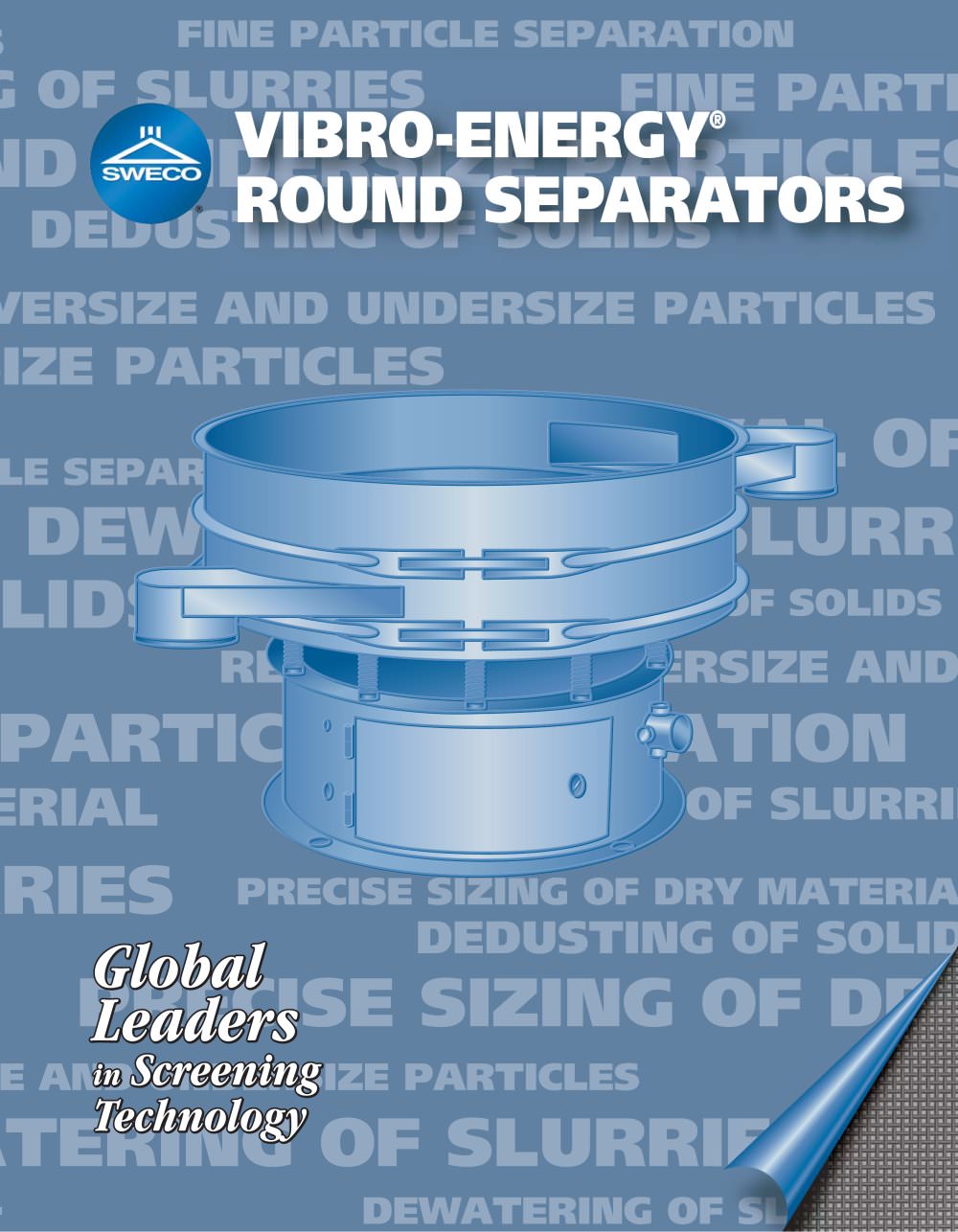

Open the catalog to page 1

Basically, the Sweco Separator is a screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any...

Open the catalog to page 4

Solid/Liquid Mixtures Fruit juices - fish - soybean oil - brewers yeast - sugar beets - other food products - latex - paint - catalyst - pulp and paper - carpets - animal blood - tallow - ceramic - kaolin - metallurgy - pharmaceuticals - ice cream Effluent Streams Potato peelings and waste - fruits - other food products - latex and other chemical products - manure - sewage - fruit - vegetable and pickle canneries - meat - poultry and seafood processors - brewery waste - laundry waste - pulp and paper effluent Dry Material Powdered milk - cereals and grains - sugar - instant coffee granules...

Open the catalog to page 5

Vibro-Energy PharmASep PSI Sanitary Separator The Sweco Sanitary Separator meets all requirements of 3A sanitary standards and FDA requirements for food processing applications. Constructed of 304 stainless steel and polished to a #4 finish, the sanitary separator is designed to prevent product build-up and contamination. Sono-Energy Low Profile High capacity, wet or dry scalping in a compact, low headroom design. Dual motors mounted on opposite sides of the Low Profile allow unrestricted flow of material and create the 3-D motion that allows discharge of oversize material, keeping the...

Open the catalog to page 6

Superior Screening Solutions From spot welded screens to our patented Supertaut > Plus screens, Sweco offers the industryΒs widest variety of screen solutions to meet any separation challenge. In addition to our round screen offerings, Sweco also manufactures Rectangular and White Water Filter screens. And for unique screening applications, Sweco custom manufactures screens to meet any requirements. Sweco offers a full line of Market Grade, Tensile Bolting Cloth, Clear Opening and U.S. Standard Sieve Cloths. Our specialty screen products include Sanitary, 3A Sanitary, UltraSonic, Parallel...

Open the catalog to page 7

No-Tools Center Tie Downs Take the hassle out of changing screens with Swecos patented ғNo-Tools Center Tie Down. This option allows you to change a screen in a fraction of the time and gives you the ability to tension the screen from the top. Center Tie Downs work with or without SwecoԒs Self Cleaning Kit option. They are suited to 220 degrees Fahrenheit and are constructed of Food Grade Nylon. TechLube Rubber Goods To accommodate your different applications, Sweco offers a variety of rubber goods. Sweco gaskets are available in several profiles and a wide array of materials. Our flexible...

Open the catalog to page 8

Construction Material*Sweco Separators are available in various materials of construction. In the model number, the fifth space allocation will be characterized by one of the following: ΓC designates Carbon Steel, ԓS designates 304 Stainless Steel, ԓY designates 316L Stainless Steel and ԓK designates special material. 5.5 F E D C B A 4.72 > 15.00 ODBASE SHELL

Open the catalog to page 9

White Water Filters. Provides high liquid flow rate (up to 4000 gpm) fine mesh centrifugal screening to remove particles larger than screen mesh. Most commonly used for White Water screening in the paper industry, it can also handle other effluent and recycle streams. Units available to remove suspended solids down to 325 mesh (44 microns). Grinding Mills. Most versatile line of mills available today for fast, low-cost particle size reduction to sub-micron range. Vibro-Energy > Sta-Sieve Rectangular Separators. New technology adapts ultra-fine screen mesh for use in rectangular...

Open the catalog to page 13

SWECO EUROPE S.A. SWECO HEADQUARTERS > SWEQUIPOS, S.A. DE C.V. SWECO ASIA > Rue de la Recherche, 8Parc Industriel Sud - Zone 1B-1400 Nivelles, BelgiumTel: +32 (67) 89 34 34Fax: +32 (67) 21 43 68europe@sweco.com 1, New Metalage CompoundSubhash Road, Jogeshwari(East)Mumbai 400 060, IndiaPhone: +91 22 2825 2140Fax: +91 22 2825 5202india@sweco.com 8029 U.S. Highway 25Florence, KY 41042 USAToll Free: +1 (800) 80 SWECOTel: +1 (859) 283-8400Fax: +1 (859) 283-8469info@sweco.com Autopista Mex-Queretaro #3055 Km. 23.2Col. San Andres Atenco54040 Tlalnepantla, Estado de MexicoPhone: +52 (5) 55 5321...
