Sweco Multi-Motion Rectangular Separator

Sweco Multi-Motion Rectangular Separator
2Pages

Catalog excerpts

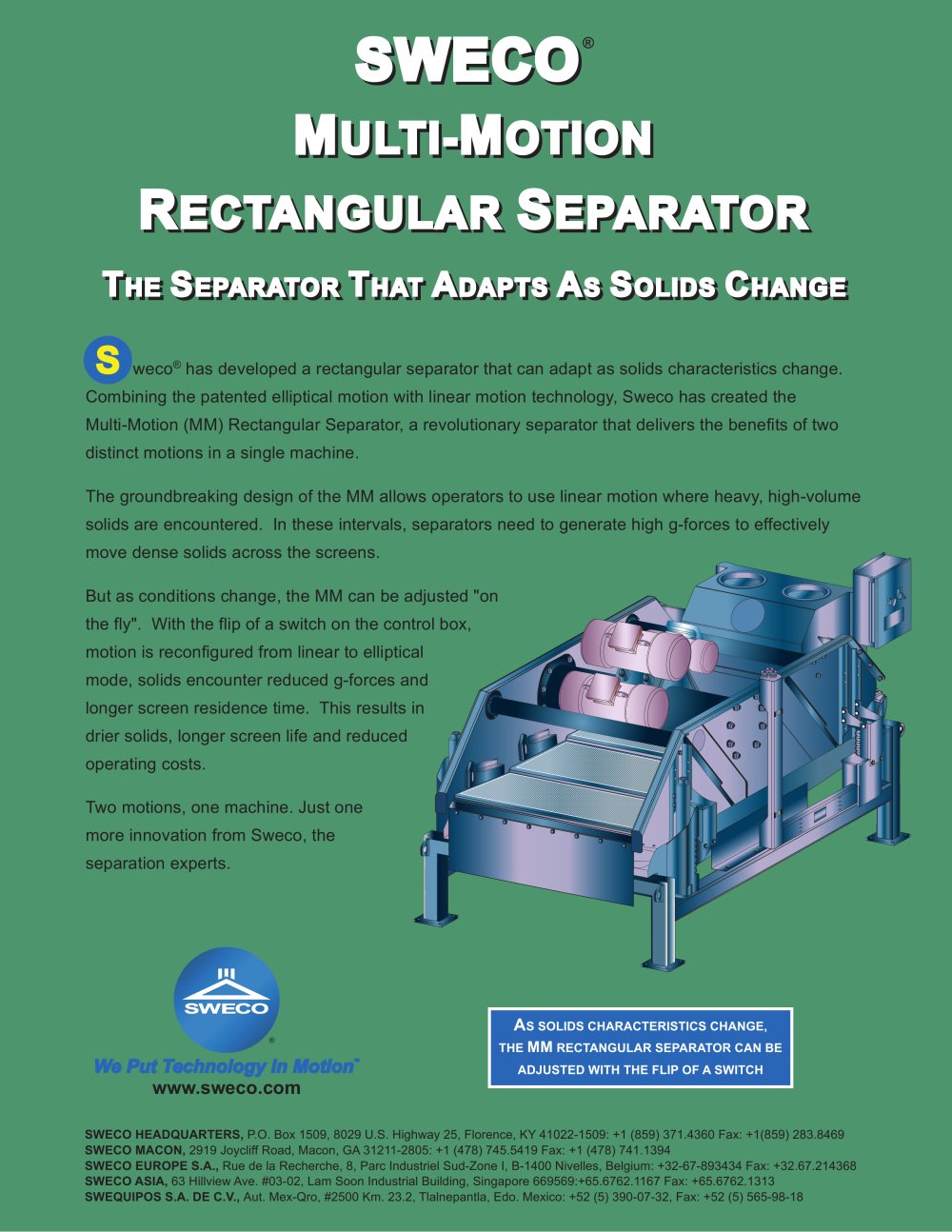

Sweco Multi-Motion Rectangular Separator - 1

EPARATOR EPARATOR EPARATOR EPARATOR > DAPTS DAPTS DAPTS DAPTS > OLIDS OLIDS OLIDS OLIDS > HANGE HANGE HANGE HANGE > weco ή has developed a rectangular separator that can adapt as solids characteristics change. Combining the patented elliptical motion with linear motion technology, Sweco has created the Multi-Motion (MM) Rectangular Separator, a revolutionary separator that delivers the benefits of two distinct motions in a single machine.The groundbreaking design of the MM allows operators to use linear motion where heavy, high-volume solids are encountered. In these intervals, separators need to generate high g-forces to effectively move dense solids across the screens.But as conditions change, the MM can be adjusted "on the fly". With the flip of a switch on the control box, motion is reconfigured from linear to elliptical mode, solids encounter reduced g-forces and longer screen residence time. This results in drier solids, longer screen life and reduced operating costs.Two motions, one machine. Just one more innovation from Sweco, the separation experts. A S SOLIDS CHARACTERISTICS CHANGE,THE Ι MM RECTANGULAR SEPARATOR CAN BEADJUSTED WITH THE FLIP OF A SWITCH We Put Technology In Motion We Put Technology In Motion www.sweco.com SWECO HEADQUARTERS, P.O. Box 1509, 8029 U.S. Highway 25, Florence, KY 41022-1509: +1 (859) 371.4360 Fax: +1(859) 283.8469 SWECO MACON, 2919 Joycliff Road, Macon, GA 31211-2805: +1 (478) 745.5419 Fax: +1 (478) 741.1394 SWECO EUROPE S.A., Rue de la Recherche, 8, Parc Industriel Sud-Zone I, B-1400 Nivelles, Belgium: +32-67-893434 Fax: +32.67.214368 SWECO ASIA, 63 Hillview Ave. #03-02, Lam Soon Industrial Building, Singapore 669569:+65.6762.1167 Fax: +65.6762.1313 SWEQUIPOS S.A. DE C.V., Aut. Mex-Qro, #2500 Km. 23.2, Tlalnepantla, Edo. Mexico: +52 (5) 390-07-32, Fax: +52 (5) 565-98-18 size="-3">

Open the catalog to page 1

Sweco Multi-Motion Rectangular Separator - 2

Unit Specifications Length 115 in (2920 mm) Width 67 in (1700 mm) Weir height 29 in (737 mm) Height 50 in (1270 mm) Weight 3,450 lbs (1560 kg) Deck angle adjustable -2 > CG o o Reduces g-forcesOptimizes solids removal Maximizes liquid throughput Extends screen life to +4 Screen Specifications Screen area 29 ft > 2 (2,7 m > 2 )Screen size 23 x 46 in (584 x 1170 mm) Screen type [quantity] Pre-tensioned [4] > CG Increases g-forcesSpeeds conveyance Enables separator to process heavier solids loads > Multi-Motion - linear motion for fast conveyance and heavy loading plus elliptical motion for...

Open the catalog to page 2
