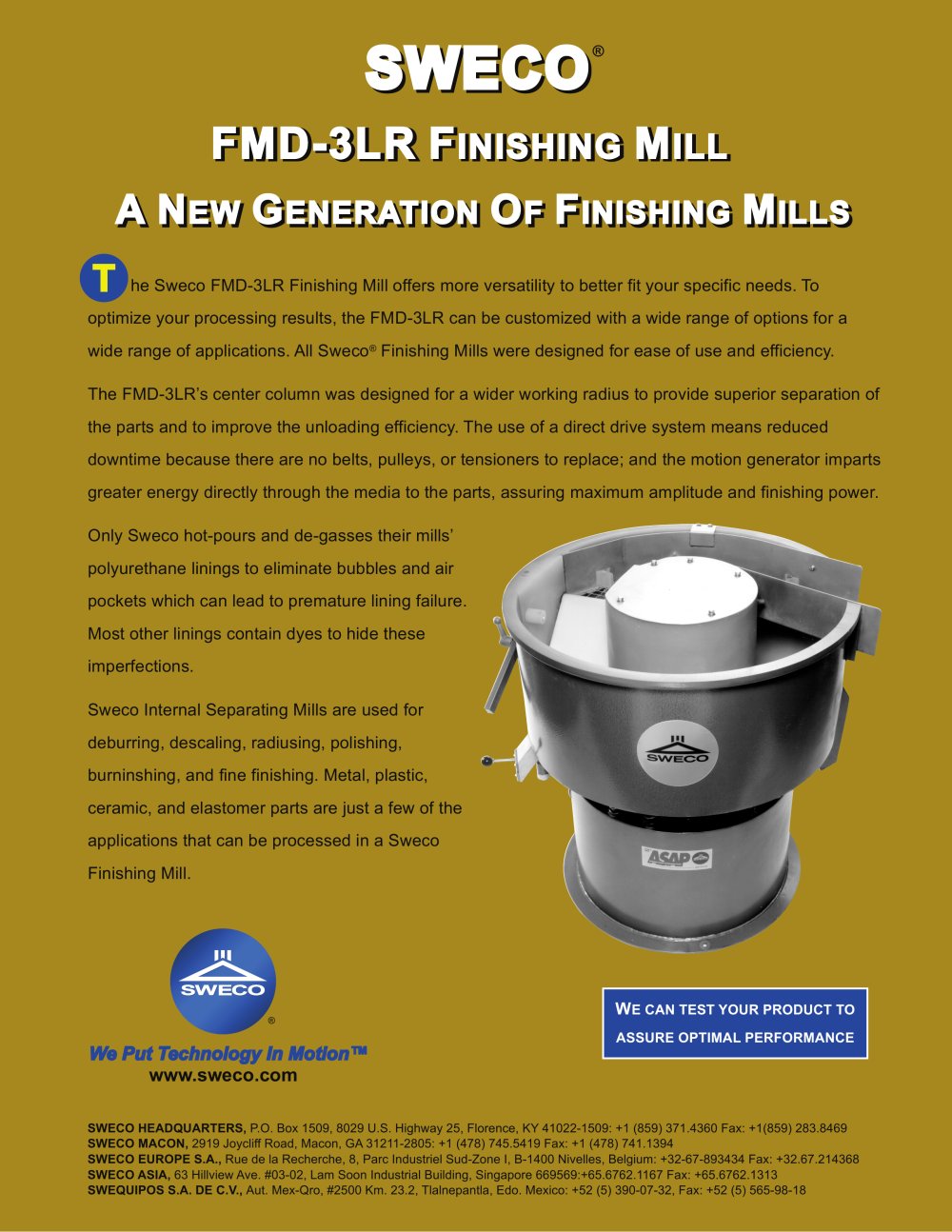

ENERATION ENERATION ENERATION ENERATION > INISHING INISHING INISHING INISHING > ILLS ILLS ILLS ILLS > he Sweco FMD-3LR Finishing Mill offers more versatility to better fit your specific needs. To optimize your processing results, the FMD-3LR can be customized with a wide range of options for a wide range of applications. All Sweco ή Finishing Mills were designed for ease of use and efficiency. The FMD-3LRs center column was designed for a wider working radius to provide superior separation of the parts and to improve the unloading efficiency. The use of a direct drive system means reduced downtime because there are no belts, pulleys, or tensioners to replace; and the motion generator imparts greater energy directly through the media to the parts, assuring maximum amplitude and finishing power.Only Sweco hot-pours and de-gasses their millsҒ polyurethane linings to eliminate bubbles and air pockets which can lead to premature lining failure. Most other linings contain dyes to hide these imperfections.Sweco Internal Separating Mills are used for deburring, descaling, radiusing, polishing, burninshing, and fine finishing. Metal, plastic, ceramic, and elastomer parts are just a few of the applications that can be processed in a Sweco Finishing Mill. W E CAN TEST YOUR PRODUCT TO ASSURE OPTIMAL PERFORMANCE We Put Technology In MotionΙ We Put Technology In Motion www.sweco.com SWECO HEADQUARTERS, P.O. Box 1509, 8029 U.S. Highway 25, Florence, KY 41022-1509: +1 (859) 371.4360 Fax: +1(859) 283.8469 SWECO MACON, 2919 Joycliff Road, Macon, GA 31211-2805: +1 (478) 745.5419 Fax: +1 (478) 741.1394 SWECO EUROPE S.A., Rue de la Recherche, 8, Parc Industriel Sud-Zone I, B-1400 Nivelles, Belgium: +32-67-893434 Fax: +32.67.214368 SWECO ASIA, 63 Hillview Ave. #03-02, Lam Soon Industrial Building, Singapore 669569:+65.6762.1167 Fax: +65.6762.1313 SWEQUIPOS S.A. DE C.V., Aut. Mex-Qro, #2500 Km. 23.2, Tlalnepantla, Edo. Mexico: +52 (5) 390-07-32, Fax: +52 (5) 565-98-18 size="-4">

More Standard Features and Custom More Standard Features and Custom More Standard Features and Custom More Standard Features and Custom Options to Meet Your Specific Requirements Options to Meet Your Specific Requirements Options to Meet Your Specific Requirements Options to Meet Your Specific Requirements > 15.5 in(393.7 mm) 16.0 in(406.4 mm) 38.5 in (977.9 mm) 41.0 in(1,041.4 mm) 16.75 in(425.5 mm)9.5 in (241.3 mm) 16.0 in(406.4 mm) An optional extended unloading screen assures more efficient screening of difficult to separate parts and media.If media is larger than the parts, inverse separation...
