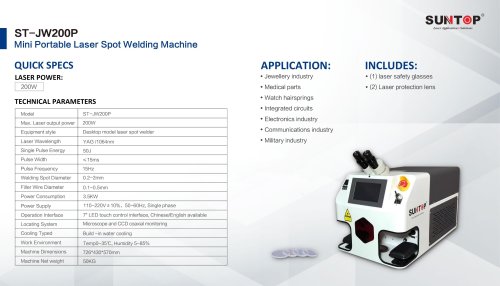

Mini Portable Laser Spot Welding Machine SUNT®P* Laser Application • Solutions QUICK SPECS TECHNICAL PARAMETERS Model APPLICATION: • Jewellery industry • Medical parts • Watch hairsprings • Integrated circuits • Electronics industry • Communications industry • Military industry INCLUDES: • (1) laser safety glasses • (2) Laser protection lens

SUNT®Pe Laser Application • Solutions Adopts UK imported ceramic spotting cavity, corrosion resistant, high temperature resistant, high photoelectric conversion efficiency, spotting cavity life (8-10 years), xenon lamp life over 8 million times. Adopts the world's most advanced automatic shading system, eliminating the stimulation of the eyes during working hours. The energy, pulse width, frequency and spot size can be adjusted over a wide range to achieve a wide range of welding results. Parameters are adjusted by the control lever in the closed cavity, simple and efficient. o Controlling screen...

SUNT®Pe Laser Application • Solutions Laser pulsed xenon lamp The pulsed xenon lamp selects high quality UV filter quartz tube as the lamp material and high quality density alloy tungsten molybdenum as the electrode of the xenon lamp, which has strong loading capacity, high pumping efficiency, good laser beam quality and long life. Emergency button Observation window Laser protection lens (Imported from Singapore) Gold jewelry in the laser welding process, in the state of focal instability, the processing surface may appear the phenomenon of metal melting splash, the protection sheet to play...

Laser Application • Solutions Mainly used for hole filling spot welding of gold and silver ornaments, also can be used for cold welding of high alloy steel, hot forged high alloy steel, nickel tool steel, high-grade steel, copper alloy, beryllium copper, high toughness aluminum alloy, gold, silver and other metal materials. Suzhou Suntop Laser Technology Co.,Ltd Q No 317, Mu Dong RD, Wu Zhong DIST, Suzhou City, Jiangsu Province, China 215156.
