SUTO iTEC GmbH
Product Overview Catalog

Product Overview Catalog

Product catalog summary

Introduction
SUTO iTEC specializes in advanced measurement solutions for compressed air, gases, and liquids, focusing on energy efficiency, cost reduction, and product quality. Their technologies are vital in industries such as food preservation and beverage production.

Importance of Monitoring
Monitoring systems for compressed air and gases is crucial for enhancing energy efficiency and reducing costs. Since air compressors convert much electrical energy into heat, monitoring is essential to improve efficiency. Continuous monitoring ensures filtration systems function correctly, maintaining product quality and safety.

Product Offerings

Flow Meters: These are designed for precise flow measurement in applications involving compressed air, gases, liquids, and steam, supporting energy management, process control, and quality assurance.
Dew Point Meters: These meters monitor air quality and ensure reliability in processes, suitable for various applications including fridge and desiccant dryers, and explosive environments.
Monitoring Solutions: Comprehensive solutions include data logging, on-site analysis via mobile devices, and centralized data management through monitoring software.

Technological Features
SUTO iTEC products are characterized by easy installation, mobile app configuration, robust protection, and compatibility with communication protocols like Modbus/RTU and Modbus/TCP. They cater to both small and large pipe sizes, offering flexibility for different industrial needs.

Service and Expertise
With over 20 years of experience, SUTO iTEC provides reliable, high-performance solutions with excellent after-sales support. Their global presence ensures dedicated local service and expertise.

Conclusion
SUTO iTEC's innovative measurement technologies enhance system performance, reliability, and energy efficiency, making them a trusted partner for industries worldwide.

Specifications

Pressure Range: Instruments operate within 0.3 to 15 MPa, with options for lower pressures.
Signal Outputs: Include Modbus/RTU, Modbus/TCP, USB, and alarm relays, with some models offering 4G/LTE modem connectivity.
Measured Gases: Air, N₂, CO₂, and other gases depending on the instrument and software settings.

Key Instruments

Oil Vapor Monitor (S120): Uses PID sensor technology for fast response and includes an integrated data logger for permanent oil content monitoring.
Laser Particle Counter (S130/S132): Measures particle sizes according to ISO 8573 standards, with easy installation and plug-and-play solutions.
Portable and Stationary Air Purity Analyzers (S600/S601): Designed for air quality audits and permanent monitoring, ensuring compliance with ISO 8573-1 standards.
Breathing Air Systems (S605/S606): Portable and stationary solutions for monitoring breathing air quality, meeting standards like EN 12021.
Leak Detection (S530/S531/S532): Ultrasonic devices for identifying leaks in compressed air systems, aiding in energy savings and efficiency improvements.
Flow and Consumption Meters (S461/S462/S435): For monitoring flow rates and consumption in various applications, including liquids and steam.

Installation and Usage

Most instruments feature easy installation with quick-connect options and plug-and-play capabilities.
Data logging and visualization are supported through integrated displays and IIoT solutions, with options for local and cloud-based data management.

Applications

Instruments are used for monitoring air quality in critical processes across various industries, ensuring compliance with international standards.
Leak detection systems help reduce energy losses and improve system efficiency.
Flow meters provide accurate measurements for process optimization in industrial applications.

Calibration and Certification
SUTO iTEC operates calibration facilities in Germany, Hong Kong, and China, offering high-accuracy flow calibration traceable to national standards. The document emphasizes the importance of annual recalibration for dew point, temperature, and pressure instruments.

Exchange Calibration Service
SUTO iTEC offers an Exchange Calibration Service to minimize downtime by providing pre-calibrated replacements for on-site swapping.

Contact Information
The document lists contact details for SUTO iTEC's offices in Germany, China, Hong Kong, and the USA, along with their sales partners in over 50 countries.

Catalog excerpts

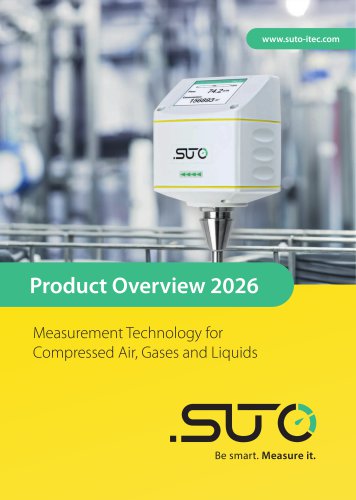

Product Overview 2026 Measurement Technology for Compressed Air, Gases and Liquids

Open the catalog to page 1

Advanced Measurement Solutions Compressed Air and Gas Monitoring -Get Your System Under Control Compressed air and technical gases play a vital role in modern production processes. Compressed air is widely used to drive actuators, operate machines, and control automated systems. Technical gases and compressed air are also used in processes such as food preservation and can even become part of the final product, for example in beverage production. This leads to two crucial aspects: Flow Meters Compressed Air & Gas Air compressors convert about 80-90 % of electrical energy into heat and only 10-20...

Open the catalog to page 2

Be smart. Measure it. SUTO iTEC is Your Expert for Compressed Air and Gas Monitoring We are a trusted global partner for reliable measurement and monitoring solutions for compressed air and gas systems. Our products play a vital role in system processes of leading companies around the world. Since our foundation in 2005, we have offered our customers outstanding service and solutions and continue to innovate dependable measurement technology. Displays / Data Logger / IoT Energy Meter Other Sensors We revolutionize compressed air measurement with smarter, faster, and more efficient technologies....

Open the catalog to page 3

Complete Monitoring of Your System Data Logging and Analysis All collected data is transmitted to a smart monitoring software via our data loggers, providing centralized data analysis and reporting. We provide a full range of monitoring solutions for every stage of your compressed air system: Generation – Flow measurement of wet compressed air directly after the compressor. Power monitoring provides insight into compressor performance. Treatment – Dew point and air quality monitoring after dryers to ensure reliable air quality and process safety. Distribution – Flow and consumption monitoring...

Open the catalog to page 4

Flow Liquids Ultrasonic Transducer Ultrasonic Transducer www.suto-itec.com Air Quality Flow Ex/Harsh Dry Air Flow Meter Flow Meter Flow Consumer Flow Consumer Receiver Tank Leak Detection

Open the catalog to page 5

Flow and Consumption Metersfor Compressed Air and Gases Thermal Mass Flow Meter S401 Insertion Installation Insertion type for pipe sizes DN25 to DN1000, installable under pressure via a 1/2" ball valve. Signal Outputs • Isolated 4 ... 20 mA & Pulse Measured Gases Non-intrusive measurement of compressed air and gas consumption in main and distribution lines, especially suited for larger pipe sizes, supporting energy management, process control, cost allocation and quality assurance. Reliable total flow measurements Easy Installation through 1/2" ball valve under pressure Mobile app for remote...

Open the catalog to page 6

Flow and Consumption Metersfor Compressed Air and Gases Pitot Tube Flow Meter for Wet Air S430 Insertion Installation Insertion type for pipe sizes DN32 to DN1000, installation under pressure via 3/4" ball valve. Measured Gases Wet/dry air (other gases on request) Signal Outputs • Isolated 4 ... 20 mA & Pulse • Flow, pressure and velocity monitoring at the compressor outlet • High temperature flow applications • Compressor efficiency testing with S551 Portable Data Logger and S110-P Power Meter Fast response time for accurate results Easy and efficient monitoring Mobile app for remote configuration...

Open the catalog to page 7

Flow and Consumption Meters for Compressed Air and Gases Stat. Stat. Stat. Stat. Stat. Stat. Compact Thermal Mass Flow Meter In-line type: G inner thread connection DN8, DN15, DN20, DN25, DN32, DN40 or DN50 (ISO 228-1) Measured Gases Point-of-use monitoring of machines and consumers Data logger for measurement data recording Total mass flow: No bypass measurement needed Compact design for easy and flexible installation Compact Thermal Mass Flow Meter for Vacuum Applications S418-V Accurate compressed air and gas flow monitoring, to discover weak points in the process flow, thus ensuring continuity...

Open the catalog to page 8

Flow and Consumption Metersfor Compressed Air and Gases Thermal Mass Flow Meter ** * * * j j-7 I Installation Insertion type for pipe sizes DN32 to DN1000, installation under pressure via 3/4" ball valve. Measured Gases Air, N2,02, CO2 (others on request) Signal Outputs 2 x 4 ... 20 mA, pulse & Modbus/RTU 2 x 4 ... 20 mA, pulse & Ethernet/APL (Modbus/TCP protocol) Application • Outdoor / all-weather flow applications • Explosive environments • Cost overview for gas consumption within the distribution network Easy Cleaning: All wetted parts stainless steel Explosion proof for use in Ex-area applications...

Open the catalog to page 9

Dew Point Metersfor Compressed Air and Gases Dew Point Sensor S215 -20 ... +50 °C Td Installation G1/2" Process connection for installation directly in process or via measuring chambers. Signal Outputs Measured Gases Air, Argon, O2, N2, CO2 Application Dew point measurements after fridge dryers Compact design for easy and flexible installation -20 ... +50 °C Td After fridge dryers High Precision ± 2 °C Td Accuracy Installation G1/2" Process connection for installation directly in process or via measuring chambers. Measured Gases Dew point measurements after desiccant dryers -60 ... +20 °C Td...

Open the catalog to page 10

Installation G1/2" Process connection for installation directly in process or via measuring chambers. Point-of-use & Other Locations Signal Outputs Measured Gases Air, Argon, O2, N2, CO2 Application Dew point measurements for high-tech applications with demanding requirements Compressed Air Quality Monitoring Dual sensor solution (QCM + polymer) for high accuracy -100... +20 °CTd for high-tech applications Precise and stable measurement (± 2 °C Td Accuracy) Dew Point Transmitter for Ex Applications 5230 Installation G1/2" Process connection for installation directly in process or via measuring...

Open the catalog to page 11

Dew Point Meters for Compressed Air and Gases Stationary Installation easy process connection via 6 mm quick connect Measured Gases Dryer Monitoring Non-corrosive gases • Monitor fridge and desiccant dryer • Simple after market installation Signal Outputs • Process humidity monitoring and notification in case of alarms Alarm indication with internal relays or alarm units Fridge and Desiccant Dryer Operating Pressure Plug & Play solution for simple and fast connection -60 ... +50 °C Td Range depending on model Fast response time for efficient monitoring Portable Dew Point Meter S520 Point-of-use...

Open the catalog to page 12
