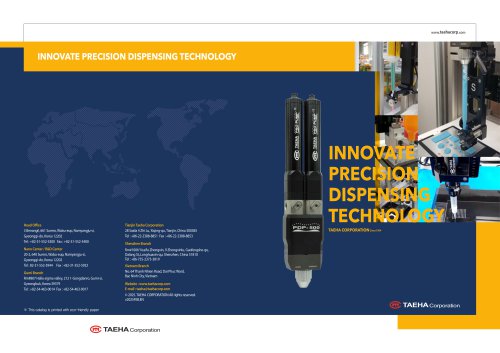

INNOVATE PRECISION DISPENSING TECHNOLOGY Head Office 3 Benangil, 661 Surero, Wabu-eup, Namyangju-si, Gyeonggi-do, Korea 12202 Tel : +82-31-552-5300 Fax : +82-31-552-5400 Tianjin Taeha Corporation 28 Saida 4 Zhi Lu, Xiqing-qu, Tianjin, China 300385 Tel : +86-22-2388-8851 Fax : +86-22-2388-8853 Nano Center / R&D Center 20-2, 640 Surero, Wabu-eup, Namyangju-si, Gyeonggi-do, Korea 12202 Tel : 82-31-552-5944 Fax : +82-31-552-5922 Rm#1006 Yicaifu Zhongxin, 9 Zhongxinlu, Gaofengshe-qu, Dalang St.,Longhuaxin-qu, Shenzhen, China 51810 Tel : +86-755-2373-3819 Gumi Branch Rm#807 Halla-sigma valley, 212 1-Gongdanro, Gumi-si, Gyeongbuk, Korea 39379 Tel : +82-54-463-0014 Fax : +82-54-463-0017 Shenzhen Branch Vietnam Branch No. 64 Thanh Nhien Road, Dai Phuc Ward, Bac Ninh City, Vietnam Website : www.taehacorp.com E-mail : [email protected] © 2025. TAEHA CORPORATION All rights reserved. v2025FEB.EN ※ This catalog is printed with eco-friendly paper INNOVATE PRECISION DISPENSING TECHNOLOGY TAEHA CORPORATION Since1994

PROGRESSIVE CAVITY PUMP PRO-PUMP PCP series is a compact and innovative 1-component dispenser that delivers excellent accuracy to the dispensing of difficult materials. Because there is a perfect sealed space between the rotor and stator, it can maintain a higher degree of vacuum compared to the gear pump, so it has excellent material suction capability. Non-pulsation, this can keep flow rate very constant. The volume of the conveyed material is in proportion to the rotation speed of rotor, regardless of dosing pressure, so adjusting the number of rotor's rotations allows accurate conveyance...

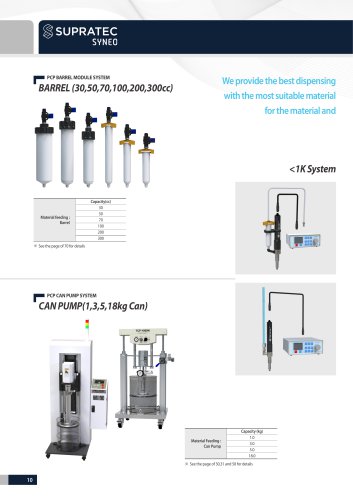

PCP BARREL MODULE SYSTEM We provide the best dispensing with the most suitable material for the material and Material feeding : Barrel system by combining the PCP series feeding container/device/equipment dosing conditions. PCP CARTRIDGE MODULE SYSTEM Material feeding: Cartridge Material Feeding : Can Pump Material Feeding : Pressure Tank

PDP-Series 2K PRO-DUO PUMP PRO The Mix adapter, which is installed when applying a static mixer to the PRO-DUO PUMP, has different models depending on the type of static mixer and mix ratio of 2K materials. Model PRO-DUO PUMP series is a compact and innovative 2-component dispenser that delivers excellent accuracy to the dispensing of difficult materials. This volumetric pump that allows the user to directly control the mix ratio of the 2-component materials It has originality eccentric screw structure, so it is dispensed steadily by mixing 2-component material for a long time. It is highly efficient,...

PDP BARREL MODULE SYSTEM We provide the best dispensing system with the most suitable material feeding for the 2K material and by combining the PDP series container/device/equipment dosing conditions. PDP CARTRIDGE MODULE SYSTEM CARTRIDGE (170,340,650,1000cc,Sealant330cc) <2K System Configuration> Material feeding : DUAL CAN PUMP(1,3,5,18kg Can) H PDP TANK SYSTEM MFEV2(2K Material Feeding Equipment, Vacuum type)

A control device that can be applied to equipment such as desktop robots, articulated robots, inline systems and etc. to select the method of dispensing and to control the dispensing volume. PRO-PUMP CONTROLLER PRO-PUMP or PRO-DUO PUMP software for precision and variety of dispensing process. The touch screen makes the data more recognize and easy to operate. 15 channels of memory function provide excellent compatibility with other equipment such as PC and PLC. External interface features enable a variety of works to be performed continuously. Intuitive work setting and data modification for...
