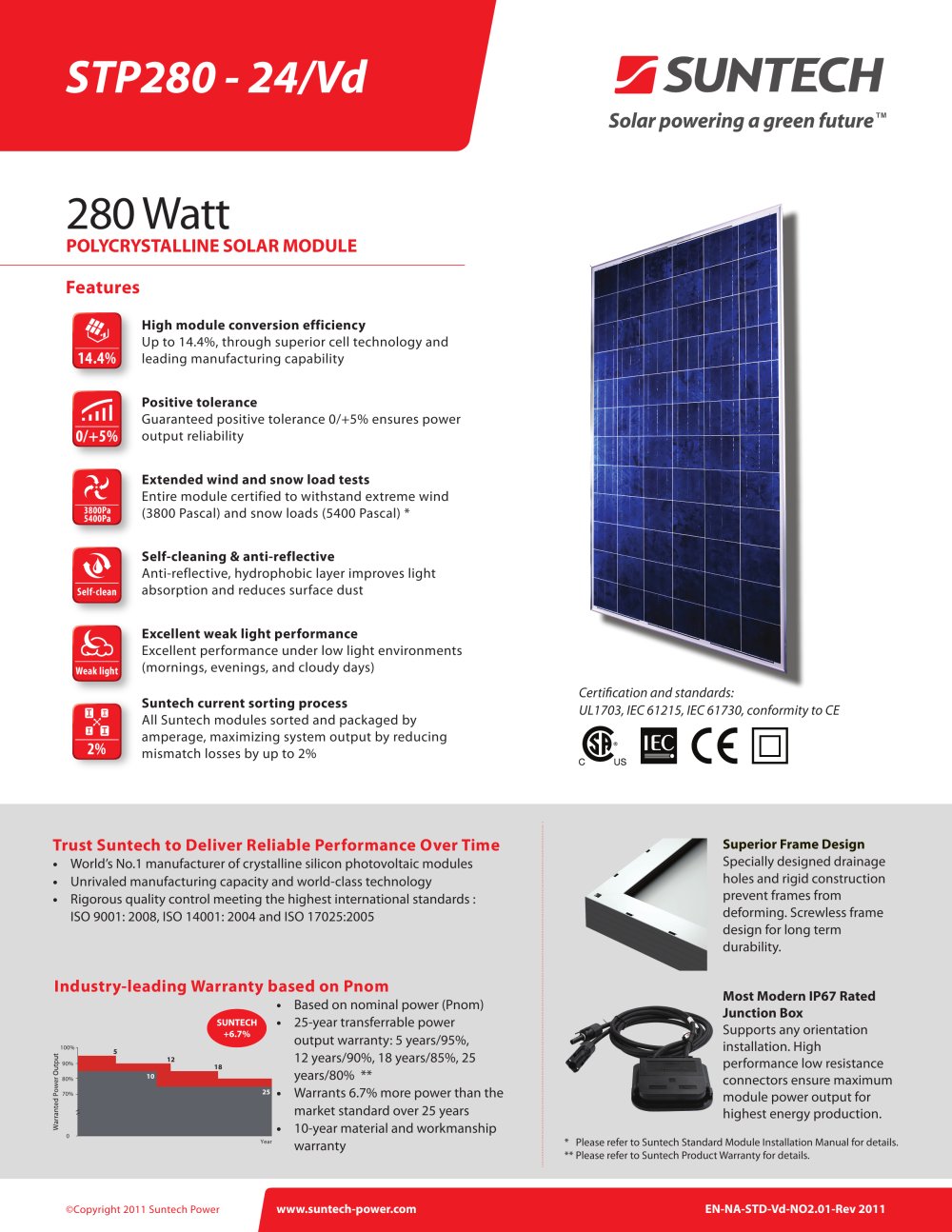

Vd (280 watts) Polycrystalline, Large-Format Module
Product catalog summary
Overview: The document provides detailed specifications and features of the Suntech Power STP280-24/Vd polycrystalline solar module, which delivers 280 Watts of power. It highlights the module's efficiency, durability, and compliance with international standards.
Features:
- High module conversion efficiency of up to 14.4% due to advanced cell technology.
- Positive power tolerance of 0/+5% ensures reliable power output.
- Certified to withstand extreme wind (3800 Pascal) and snow loads (5400 Pascal).
- Anti-reflective and self-cleaning surface enhances light absorption and reduces dust accumulation.
- Excellent performance in low light conditions, maintaining high efficiency even at 200 W/m2 irradiation.
Certifications and Standards:
- Complies with UL1703, IEC 61215, IEC 61730, and CE standards.
- Manufactured under rigorous quality control systems: ISO 9001:2008, ISO 14001:2004, and ISO 17025:2005.
Warranty:
- 25-year transferrable power output warranty with specific performance guarantees over time (5 years/95%, 12 years/90%, 18 years/85%, 25 years/80%).
- 10-year material and workmanship warranty.
Technical Specifications:
- Optimum Operating Voltage (Vmp): 35.2 V
- Optimum Operating Current (Imp): 7.95 A
- Open Circuit Voltage (Voc): 44.8 V
- Short Circuit Current (Isc): 8.33 A
- Maximum System Voltage: 600 V DC (UL)/1000 V DC (IEC)
- Temperature Coefficient of Pmax: -0.44 %/°C
Mechanical Characteristics:
- Dimensions: 1956 × 992 × 50 mm
- Weight: 27.0 kg
- Front Glass: 4.0 mm tempered glass
- Frame: Anodized aluminium alloy
- Junction Box: IP67 rated
Packing Configuration:
- Pieces per pallet: 21
- Pallets per container: 5 (20’ GP), 12 (40’ GP), 24 (40’ HC)
- Pieces per container: 105 (20’ GP), 252 (40’ GP), 504 (40’ HC)
