See Thru
4Pages

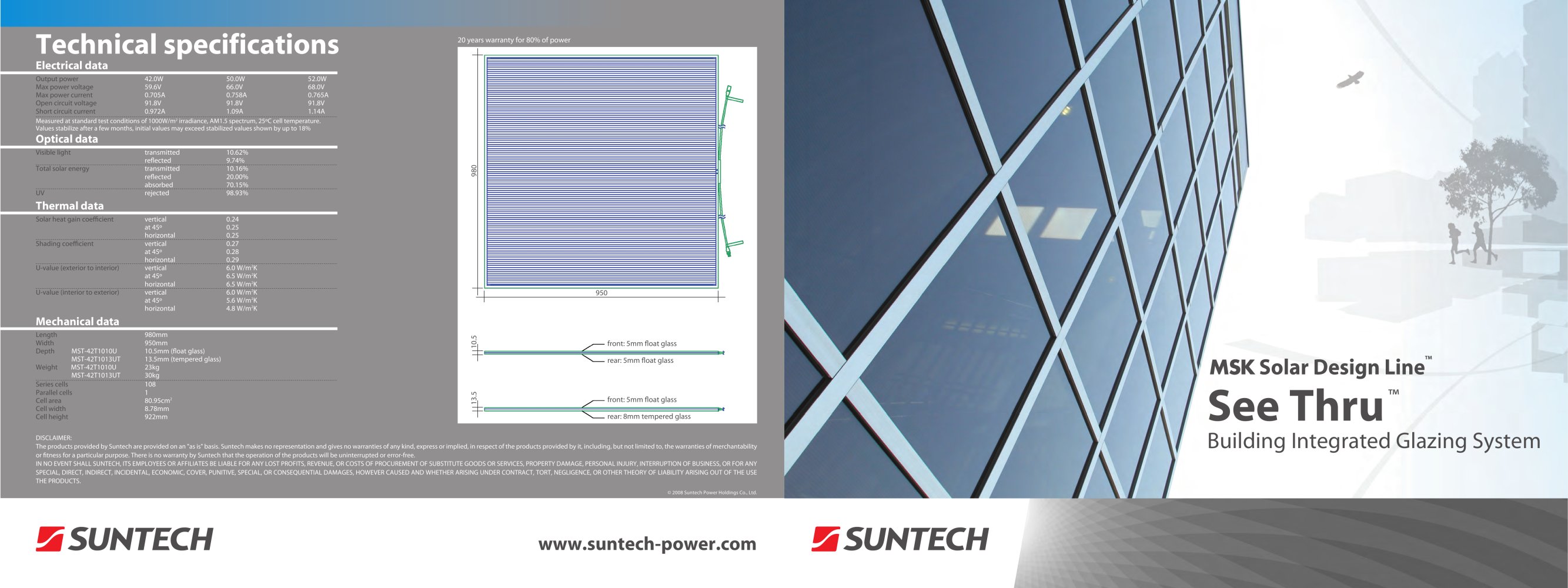

DISCLAIMER: The products provided by Suntech are provided on an "as is" basis. Suntech makes no representation and gives no warranties of any kind, express or implied, in respect of the products provided by it, including, but not limited to, the warranties of merchantability or tness for a particular purpose. There is no warranty by Suntech that the operation of the products will be uninterrupted or error-free. IN NO EVENT SHALL SUNTECH, ITS EMPLOYEES OR AFFILIATES BE LIABLE FOR ANY LOST PROFITS, REVENUE, OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, PROPERTY DAMAGE, PERSONAL INJURY, INTERRUPTION OF BUSINESS, OR FOR ANY SPECIAL, DIRECT, INDIRECT, INCIDENTAL, ECONOMIC, COVER, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND WHETHER ARISING UNDER CONTRACT, TORT, NEGLIGENCE, OR OTHER THEORY OF LIABILITY ARISING OUT OF THE USE THE PRODUCTS. Technical specifications Electrical data Output power 42.0W 50.0W 52.0W Max power voltage 59.6V 66.0V 68.0V Max power current 0.705A 0.758A 0.765A Open circuit voltage 91.8V 91.8V 91.8V Short circuit current 0.972A 1.09A 1.14A Measured at standard test conditions of 1000W/m2 irradiance, AM1.5 spectrum, 25ºC cell temperature. Values stabilize after a few months, initial values may exceed stabilized values shown by up to 18% Optical data Visible light transmitted 10.62% reected 9.74% Total solar energy transmitted 10.16% reected 20.00% absorbed 70.15% UV rejected 98.93% Thermal data Solar heat gain coecient vertical 0.24 at 45º 0.25 horizontal 0.25 Shading coecient vertical 0.27 at 45º 0.28 horizontal 0.29 U-value (exterior to interior) vertical 6.0 W/m2K at 45º 6.5 W/m2K horizontal 6.5 W/m2K U-value (interior to exterior) vertical 6.0 W/m2K at 45º 5.6 W/m2K horizontal 4.8 W/m2K Mechanical data Length 980mm Width 950mm Depth MST-42T1010U 10.5mm (oat glass) MST-42T1013UT 13.5mm (tempered glass) Weight MST-42T1010U 23kg MST-42T1013UT 30kg Series cells 108 Parallel cells 1 Cell area 80.95cm2 Cell width 8.78mm Cell height 922mm www.suntech-power.com 20 years warranty for 80% of power front: 5mm oat glass rear: 5mm oat glass front: 5mm oat glass rear: 8mm tempered glass MST-42T1010U MST-42T1013UT 950 13.5 10.5 980 See Thru ™ Building Integrated Glazing System © 2008 Suntech Power Holdings Co., Ltd.

Key reasons to choose See Thru Aesthetic Appearance: See Thru features the industry’s nest laser scribing process to deliver a unique homogeneous nish, similar to tinted glass. Significant Energy Savings: Due to the properties of amorphous silicon almost 90% of heat is cut, signicantly reducing air conditioning running costs Enhanced Diffusion of Light: See Thru transforms sunlight into delicately diused light, transmitting just enough to maintain exterior views and brighten interiors Substantially Lower UV Levels: See Thru drastically reduces levels of UV radiation, cutting 98.9% Reduced...

SOLAR DESIGN 03 MSK Solar Design Line See Thru The standard glass laminate, measuring 980mm x 950mm comes in 1%, 5% or 10% transparency and 10.5mm or 13.5mm thickness. A variety of custom sizing options are also available and the unit can be fabricated into insulating glass units when a lower U-value is desired. SOLAR DESIGN 04 MSK Solar Design Line See Thru Varied Options to Fit Your Design Needs Reduction of Total Building Electrical Demand See Thru absorbs more solar heat than low-e glass, drastically reducing the annual electricity demand for your building. The electricity generated...

SOLAR DESIGN 05 MSK Solar Design Line See Thru SOLAR DESIGN 06 MSK Solar Design Line See Thru CASE STUDY 1: KANAZAWA BUS TERMINAL The largest installation to date, See Thru (5% transparency) was designed into this massive canopy covering the terminal's various pick up and drop o points. The laminates were customized to meet heavy snow load requirements and other design considerations. Location: Kanazawa, Japan Size: 3000m2 Rated Output: 120kW Design: Todec Installation: Chisansya, Oka Gumi, Honjin Jutaku joint venture CASE STUDY 2: OSKOMERA HQ Factory building facade in Holland. From the...
