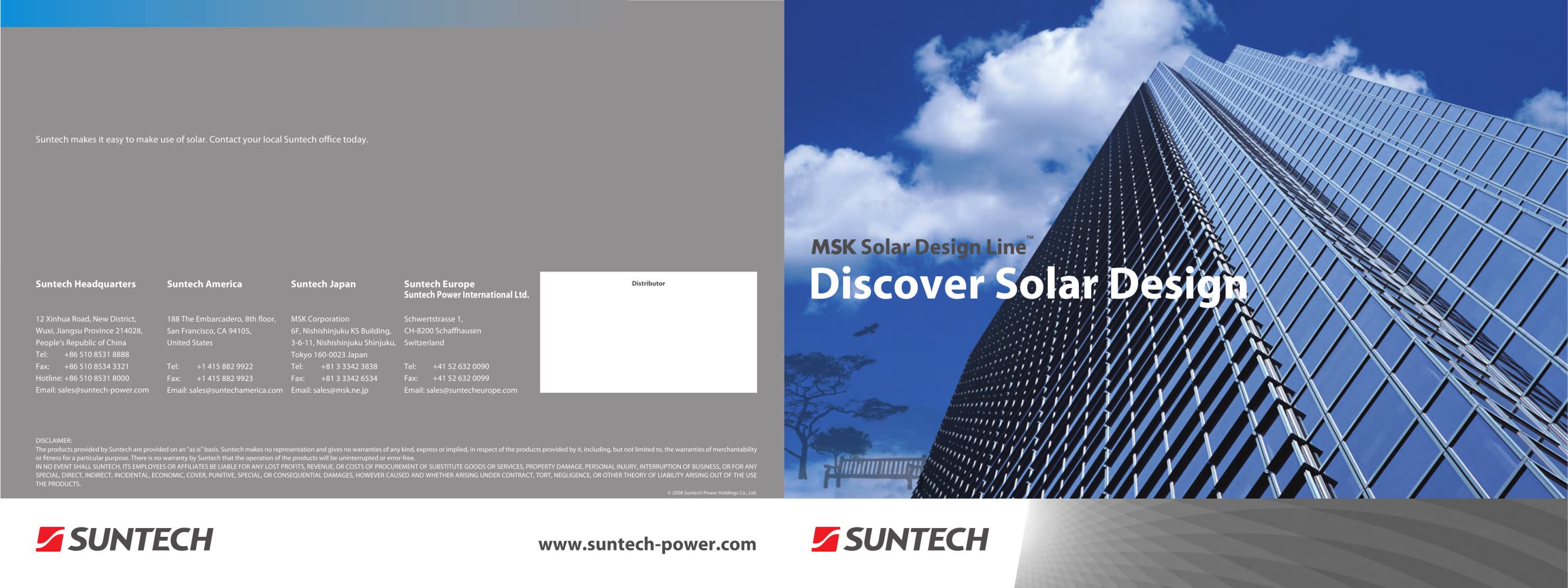

Distributor Discover Solar Design DISCLAIMER: The products provided by Suntech are provided on an "as is" basis. Suntech makes no representation and gives no warranties of any kind, express or implied, in respect of the products provided by it, including, but not limited to, the warranties of merchantability or tness for a particular purpose. There is no warranty by Suntech that the operation of the products will be uninterrupted or error-free. IN NO EVENT SHALL SUNTECH, ITS EMPLOYEES OR AFFILIATES BE LIABLE FOR ANY LOST PROFITS, REVENUE, OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, PROPERTY DAMAGE, PERSONAL INJURY, INTERRUPTION OF BUSINESS, OR FOR ANY SPECIAL, DIRECT, INDIRECT, INCIDENTAL, ECONOMIC, COVER, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND WHETHER ARISING UNDER CONTRACT, TORT, NEGLIGENCE, OR OTHER THEORY OF LIABILITY ARISING OUT OF THE USE THE PRODUCTS. www.suntech-power.com © 2008 Suntech Power Holdings Co., Ltd. Suntech makes it easy to make use of solar. Contact your local Suntech oce today. Suntech America 188 The Embarcadero, 8th oor, San Francisco, CA 94105, United States Tel: +1 415 882 9922 Fax: +1 415 882 9923 Email: sales@suntechamerica.com Suntech Headquarters 12 Xinhua Road, New District, Wuxi, Jiangsu Province 214028, People’s Republic of China Tel: +86 510 8531 8888 Fax: +86 510 8534 3321 Hotline: +86 510 8531 8000 Email: sales@suntech-power.com Suntech Europe Suntech Power International Ltd. Schwertstrasse 1, CH-8200 Schahausen Switzerland Tel: +41 52 632 0090 Fax: +41 52 632 0099 Email: sales@suntecheurope.com Suntech Japan MSK Corporation 6F, Nishishinjuku KS Building, 3-6-11, Nishishinjuku Shinjuku, Tokyo 160-0023 Japan Tel: +81 3 3342 3838 Fax: +81 3 3342 6534 Email: sales@msk.ne.jp

SOLAR DESIGN 01 MSK Solar Design Line Discover Solar design Imagine. A future where buildings power themselves with the sunlight that falls on them. No noise. No visual impact. No carbon emissions. With Suntech this vision has become a reality. SOLAR DESIGN 02 MSK Solar Design Line Discover Solar design Solar has never looked so good! What is Solar Design? Suntech’s MSK Solar Design line of products oer superior aesthetics compared to standard PV modules and can be used to create buildings that are both sustainable and visually stunning. MSK is the name of the Japanese specialist in Solar...

Realize Your Aspirations for Green Design Architects and builders around the world are increasingly embracing sustainability and searching for ways to design buildings that are “green” without having to sacrice architectural excellence. Suntech’s MSK Solar Design Line of products enables architects to achieve their greater architectural ambitions in a green way. Sustainability and Design Merge to Become One With respect to Solar Design, every building has three things in common: Every building needs a weatherproof skin Every building needs electricity Every building has energy falling on it...

SOLAR DESIGN 05 MSK Solar Design Line Discover Solar design SOLAR DESIGN 06 MSK Solar Design Line Discover Solar design Benets of Solar Design MSK Solar Design modules deliver four benefits in one Form MSK Solar Design modules can be used either as a striking and highly visible feature of a building or made to blend in seamlessly with the construction. A remote display unit lets building users see in real time how much energy is being produced and carbon saved, making a solar design system a real talking point for building users. Function In the case of our building-integrated products, the...

SOLAR DESIGN 07 MSK Solar Design Line Discover Solar design SOLAR DESIGN 08 MSK Solar Design Line Discover Solar design Solar is an extremely versatile technology that can be integrated into virtually any part of a building’s exterior to empower your design vision. Designing With Solar Sloped Roof Most common type of installation. Modules can either be installed on top of an existing roof or integrated into the roof structure, forming the roof itself. Flat Roof For commercial buildings modules are often installed on top of at roofs. These can either be installed at an angle or at to the...

Product Name Type Image Summary Availability Electrical Output Technology Module Size Module Weight Installation method Installation time Cable exit point Transparency Glass thickness Frame Warranty Period Certifications Suntech oers the industry’s widest range of Solar Design products. We are constantly expanding our range, but the following table summarizes the MSK Solar Design Line as of April 2008. Please refer to the individual product catalogs for details of each product. Pleas check www.suntech-power.com for the most up-to-date information. SOLAR DESIGN 09 MSK Solar Design Line...

1. Site London Tokyo LA London Tokyo LA Annual insolation (kWh/m2/year) 1,112 1,405 2,028 1,112 1,405 2,028 2. System Light Thru Just Roof System area (m2) 100 100 100 100 100 100 Orientation South South South South South South Angle 30 degrees 30 degrees 30 degrees 30 degrees 30 degrees 30 degrees System rated power (kWp) 8.0 8.0 8.0 13.2 13.2 13.2 3. Energy Output Annual energy output (kWh/yr) 6,686 8,178 11,814 11,032 13,494 19,493 4. Carbon Savings Carbon saving rate (kgCO2/kWh) 0.46 0.36 0.275 0.46 0.36 0.275 Annual carbon saving (kgCO2/yr) 3,076 2,944 3,248 5,075 4,858 5,361 A key...

SOLAR DESIGN 13 MSK Solar Design Line Discover Solar design SOLAR DESIGN 14 MSK Solar Design Line Discover Solar design Q&A How much energy comes from the Sun? The energy received from the Sun is equivalent to a barrel of oil on every square metre of the Earth every year. Put another way, every 2.6 days the Sun delivers energy equivalent to the word’s entire reserves of oil, coal and gas. A 100m2 roof receives around 100 barrels of oil of solar energy annually: 10,000USD worth. With photovoltaic technology, up to 15% of this energy can be converted directly into electricity. How does PV...
