HiPerforma™ Module

Product catalog summary

Introduction
Suntech Power introduces the HiPerforma™ line of solar modules featuring PLUTO™ cells, offering enhanced efficiency and performance.

Specifications
The HiPerforma™ modules, including models PLUTO205-Ade, PLUTO200-Ade, and PLUTO195-Ade, provide 10-15% more efficiency per unit compared to conventional modules. They perform well under low light conditions, delivering 10-12% more electricity during mornings, evenings, and cloudy days. The modules have a better kWh/kW ratio, producing 2-5% more electricity in the field. They are highly reliable with a guaranteed 0/+5 W positive peak power tolerance and can withstand high wind-pressure, snow load, and extreme temperatures, having passed the IEC 5400 Pa mechanical loading test. The modules are also lead-free.

Quality and Safety
The modules come with an industry-leading power output warranty (12/90%, 25/80%) and are manufactured in ISO 9000:2008 and ISO 14001:2004 certified factories.

PLUTO™ Cell Technology
PLUTO cells feature fine cell fingers (~30μm) for reduced surface shading and increased sunlight absorption. They undergo a Gallium-F22 doping process to inhibit Light Induced Degradation to less than 1%. The cells have high shunt resistance for enhanced low light performance and use pyramid texturing technology to reduce light reflection, increasing power output.

Electrical Characteristics
Each module type (PLUTO205-Ade, PLUTO200-Ade, PLUTO195-Ade) has specific electrical characteristics, including open-circuit voltage, optimum operating voltage, short-circuit current, and maximum power at STC. The modules operate within a temperature range of -40°C to +85°C and have a maximum system voltage of 1000 V DC.

Mechanical Characteristics
The modules are composed of 72 monocrystalline cells, measuring 1580 × 808 × 35 mm and weighing 15.5 kg. They feature a 3.2 mm tempered glass front and an anodized aluminum alloy frame.

Temperature Characteristics
The nominal operating cell temperature is 45 ±2 °C, with specific temperature coefficients for Pmax, Voc, and Isc.

Graphical Data
The document includes a current-voltage and power-voltage curve for the 195 W module, illustrating performance under different irradiance levels.

Notes
Specifications are subject to change without notice. For more information, consult your local dealer.

Catalog excerpts

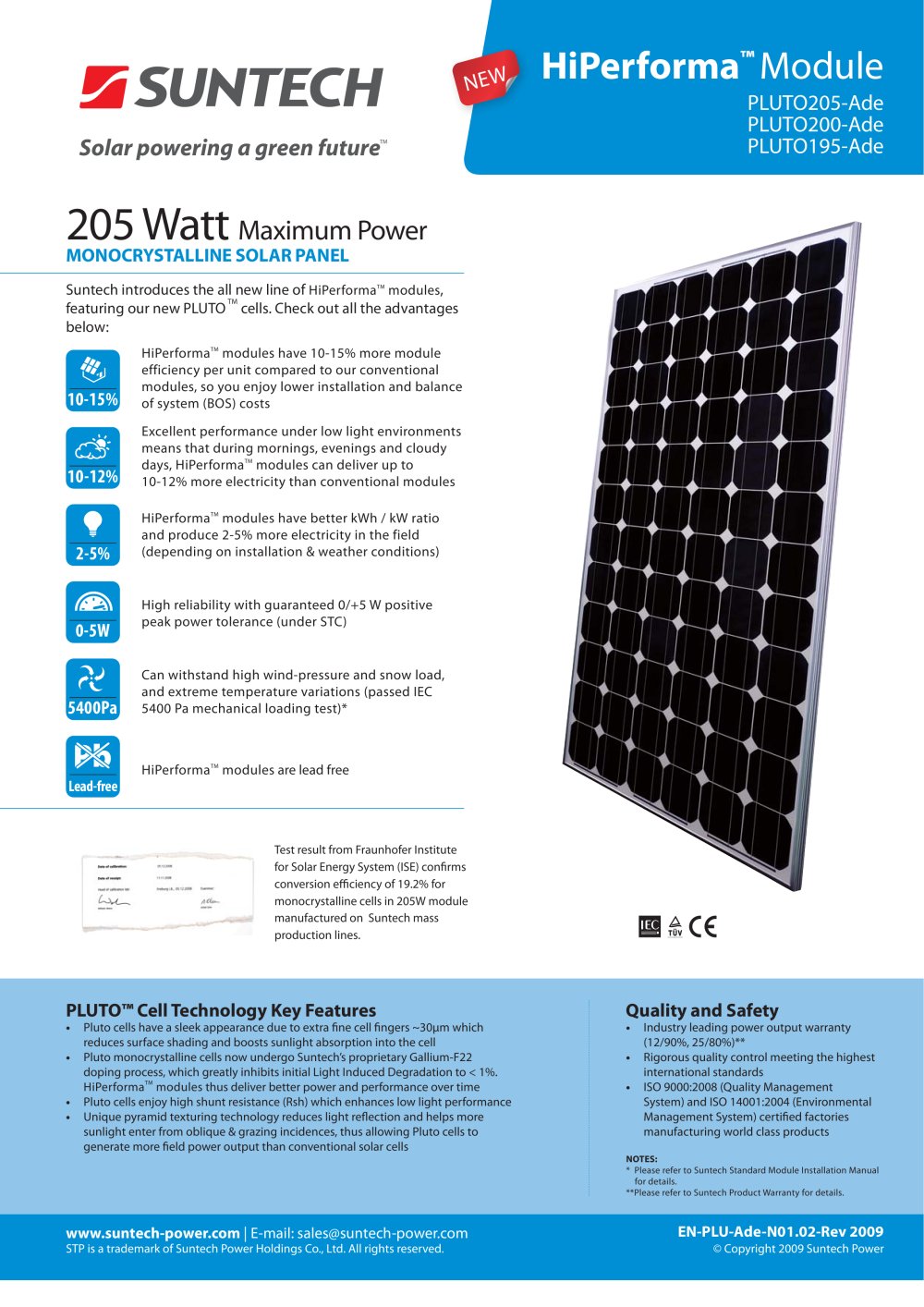

www.suntech-power.com | E-mail: [email protected] EN-PLU-Ade-N01.02-Rev 2009 STP is a trademark of Suntech Power Holdings Co., Ltd. All rights reserved. © Copyright 2009 Suntech Power NEW HiPerforma™ Module PLUTO205-Ade PLUTO200-Ade PLUTO195-Ade Suntech introduces the all new line of HiPerformaTM modules, featuring our new PLUTO TM cells. Check out all the advantages below: HiPerformaTM modules have 10-15% more module efficiency per unit compared to our conventional modules, so you enjoy lower installation and balance of system (BOS) costs Excellent performance under low light environments means that during mornings, evenings and cloudy days, HiPerformaTM modules can deliver up to 10-12% more electricity than conventional modules HiPerformaTM modules have better kWh / kW ratio and produce 2-5% more electricity in the field (depending on installation & weather conditions) High reliability with guaranteed 0/+5 W positive peak power tolerance (under STC) Can withstand high wind-pressure and snow load, and extreme temperature variations (passed IEC 5400 Pa mechanical loading test)* HiPerformaTM modules are lead free MONOCRYSTALLINE SOLAR PANEL 205 Watt Maximum Power Quality and Safety • Industry leading power output warranty (12/90%, 25/80%)** • Rigorous quality control meeting the highest international standards • ISO 9000:2008 (Quality Management System) and ISO 14001:2004 (Environmental Management System) certifi ed factories manufacturing world class products PLUTO™ Cell Technology Key Features • Pluto cells have a sleek appearance due to extra fi ne cell fi ngers ~30ìm which reduces surface shading and boosts sunlight absorption into the cell • Pluto monocrystalline cells now undergo Suntech’s proprietary Gallium-F22 doping process, which greatly inhibits initial Light Induced Degradation to < 1%. HiPerformaTM modules thus deliver better power and performance over time • Pluto cells enjoy high shunt resistance (Rsh) which enhances low light performance • Unique pyramid texturing technology reduces light refl ection and helps more sunlight enter from oblique & grazing incidences, thus allowing Pluto cells to generate more fi eld power output than conventional solar cells Test result from Fraunhofer Institute for Solar Energy System (ISE) confi rms conversion effi ciency of 19.2% for monocrystalline cells in 205W module manufactured on Suntech mass production lines. 10-15% 10-12% 2-5% 0-5W 5400Pa Lead-free NOTES: * Please refer to Suntech Standard Module Installation Manual for details. **Please refer to Suntech Product Warranty for details.

Open the catalog to page 1

www.suntech-power.com | E-mail: [email protected] EN-PLU-Ade-N01.02-Rev 2009 STP is a trademark of Suntech Power Holdings Co., Ltd. All rights reserved. © Copyright 2009 Suntech Power NEW HiPerforma™ Module PLUTO205-Ade PLUTO200-Ade PLUTO195-Ade Electrical Characteristics Module Type PLUTO 205-Ade PLUTO 200-Ade PLUTO 195-Ade Open - Circuit Voltage (Voc) 45.8 V 45.7 V 45.4 V Optimum Operating Voltage (Vmp) 38.1 V 37.9 V 37.6 V Short - Circuit Current (Isc) 5.73 A 5.62 A 5.52 A Optimum Operating Current (Imp) 5.38 A 5.28 A 5.19 A Maximum Power at STC (Pmax) 205 W 200 W 195 W Operating Temperature...

Open the catalog to page 2
