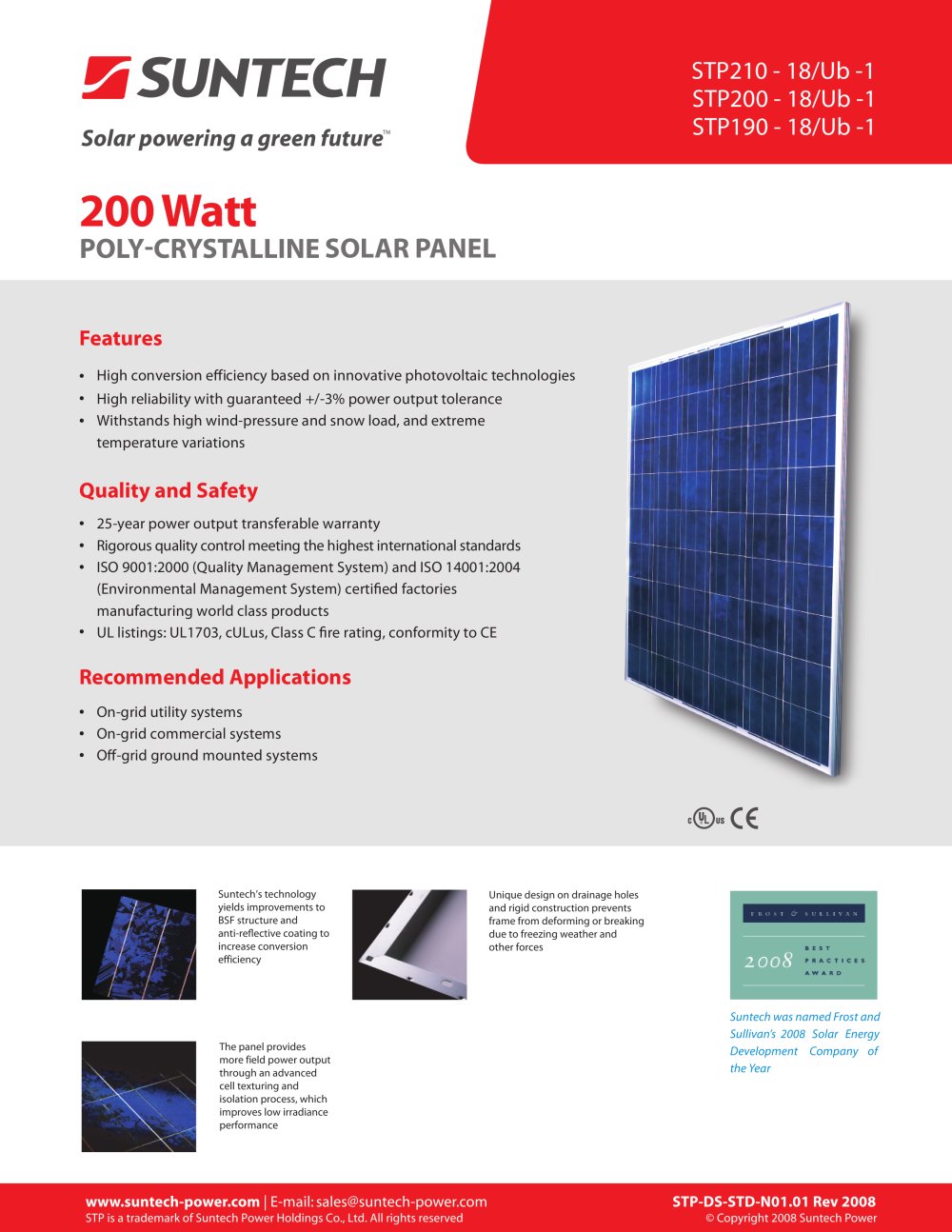

200 Watt S OLAR P ANEL www.suntech-power.com | E-mail: [email protected] STP-DS-STD-N01.01 Rev 2008 © Copyright 2008 Suntech Power Suntech was named Frost and Sullivan’s 2008 Solar Energy Development Company of the Year Suntech’s technology yields improvements to BSF structure and anti-reective coating to increase conversion e ciency The panel provides more f eld power output through an advanced cell texturing and isolation process, which improves low irradiance performance i i Unique design on drainage holes and rigid construction prevents frame from deforming or breaking due to freezing weather and other forces STP is a trademark of Suntech Power Holdings Co., Ltd. All rights reserved STP210 - 18/Ub -1 STP200 - 18/Ub -1 STP190 - 18/Ub -1 Features High conversion e ciency based on innovative photovoltaic technologies Quality and Safety 25-year power output transferable warranty Rigorous quality control meeting the highest international standards ISO 9001:2000 (Quality Management System) and ISO 14001:2004 (Environmental Management System) certied factories manufacturing world class products UL listings: UL1703, cULus, Class C re rating, conformity to CE • • • • • • • Recommended Applications On-grid utility systems On-grid commercial systems O-grid ground mounted systems • • • High reliability with guaranteed +/-3% power output tolerance Withstands high wind-pressure and snow load, and extreme temperature variations i

Electrical Characteristics Characteristics STP210-18/Ub-1 STP200-18/Ub-1 STP190-18/Ub-1 Open - Circuit Voltage (Voc) 33.6V 33.4V 33V Optimum Operating Voltage (Vmp) 26.4V 26.2V 26V Short - Circuit Current (Isc) 8.33A 8.12A 7.89A Optimum Operating Current (Imp) 7.95A 7.63A 7.31A Maximum Power at STC (Pmax) 210Wp 200Wp 190Wp Operating Temperature -40ºC to +85ºC -40ºC to +85ºC -40ºC to +85ºC Maximum System Voltage 600V DC 600V DC 600V DC Maximum Series Fuse Rating 20AMPS 20AMPS 20AMPS Power Tolerance ±3 % ±3 % ±3 % STC: lrradiance 1000W/m2, Module temperature 25ºC, AM=1.5 Mechanical Characteristics...
