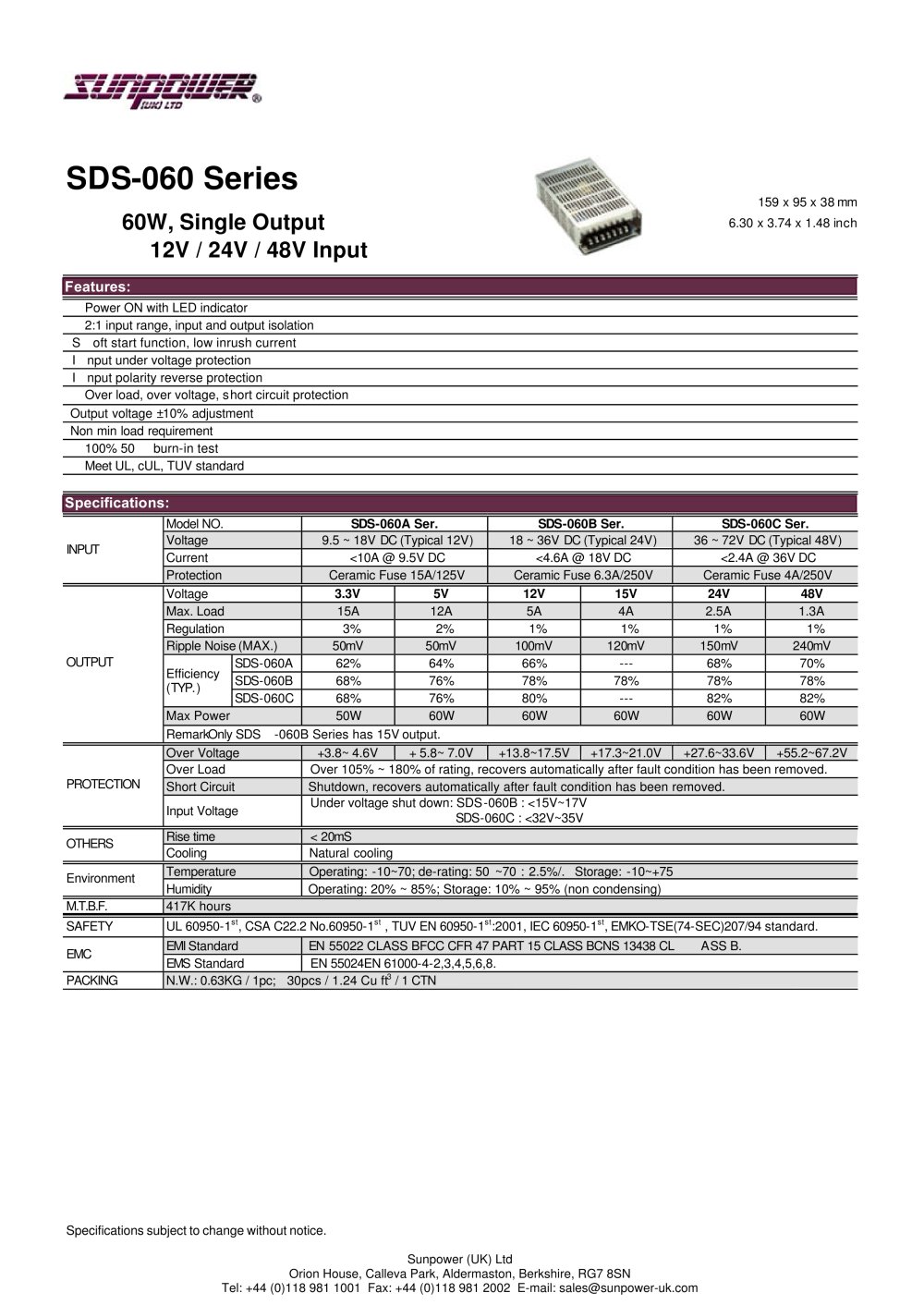

Overview: The document provides technical specifications for the SDS-060 Series power supply units by Sunpower Technology Corp. These units are designed for various input voltage ranges and offer multiple protective features.

Features: The SDS-060 Series includes features such as a power-on LED indicator, 2:1 input range with input and output isolation, soft start function to reduce inrush current, input under-voltage and polarity reverse protection, and protection against overload, over-voltage, and short circuits. The output voltage can be adjusted by ±10%, and there is no minimum load requirement. The units undergo a 100% burn-in test at 50℃ and meet UL, cUL, and TUV standards, with a two-year warranty.

Specifications: The series is divided into three models: SDS-060A, SDS-060B, and SDS-060C, each supporting different input voltage ranges (9.5-18V, 18-36V, and 36-72V respectively). The output voltage options include 3.3V, 5V, 12V, 15V, 24V, and 48V, with varying maximum loads and regulation percentages. Efficiency ranges from 62% to 82% depending on the model and output voltage. The maximum power output is 60W.

Protection: The units feature over-voltage protection with specific voltage ranges for each output, overload protection that automatically recovers after fault removal, and short circuit protection with automatic recovery. Under-voltage shutdown thresholds are specified for SDS-060B and SDS-060C models.

Environmental Conditions: Operating temperature ranges from -10℃ to 70℃, with de-rating above 50℃. Storage temperature ranges from -10℃ to +75℃. Operating humidity is 20% to 85%, and storage humidity is 10% to 95% (non-condensing). The mean time between failures (MTBF) is 417,000 hours.

Safety and Standards: The units comply with safety standards such as UL 60950-1, CSA C22.2 No.60950-1, TUV EN 60950-1:2001, and IEC 60950-1. EMI standards include EN 55022 CLASS B, FCC CFR 47 PART 15 CLASS B, and CNS 13438 CLASS B. EMC standards include EN 55024 and EN 61000-4 series.

Physical Dimensions: The SDS-060 Series units measure 159 x 95 x 38 mm (6.30 x 3.74 x 1.48 inches) and weigh 0.63 kg per unit. Packaging includes 30 units per carton.
