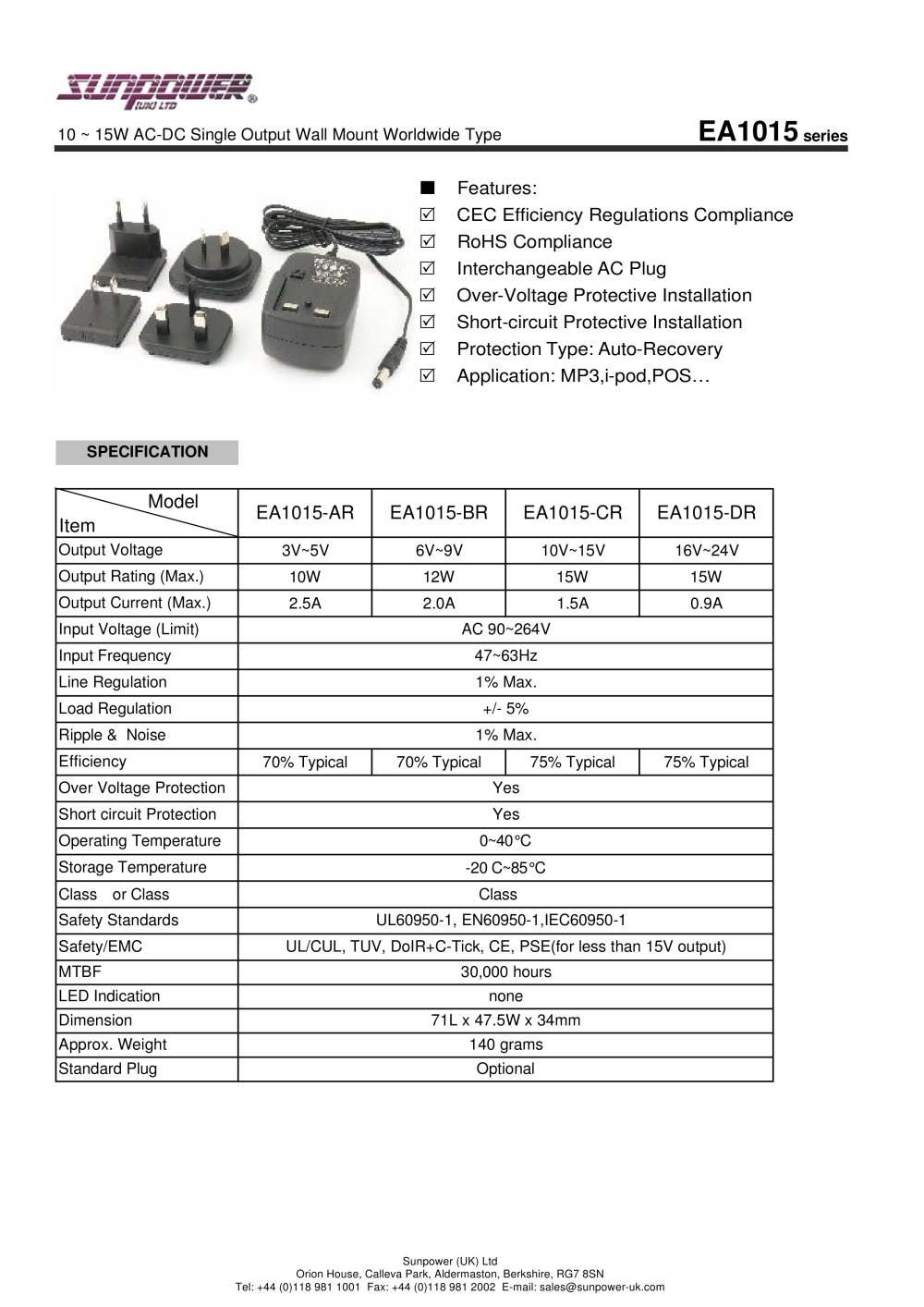

Specifications:
The EA1015 series offers models with output voltages ranging from 3V to 24V, with maximum output ratings of 10W to 15W and output currents from 0.9A to 2.5A. The input voltage limit is AC 90~264V with a frequency of 47~63Hz. Line and load regulation are both within 1% max, and ripple & noise are also 1% max. Efficiency is typically 70% to 75% depending on the model.

Environmental Conditions:
Operating temperature ranges from 0°C to 40°C, while storage temperature ranges from -20°C to 85°C. The product is classified as Class II.

Safety Standards:
The EA1015 series complies with UL60950-1, EN60950-1, and IEC60950-1 standards. It also meets UL/CUL, TUV, DoIR+C-Tick, CE, and PSE standards for outputs less than 15V.

Protection Features:
The series includes over-voltage and short-circuit protection with auto-recovery. It is compliant with CEC Efficiency Regulations and RoHS.

Physical Characteristics:
The dimensions are 71L x 47.5W x 34mm, and the approximate weight is 140 grams. The product includes an LED indication feature.

Additional Features:
The EA1015 series supports interchangeable AC plugs and is suitable for applications such as MP3 players, iPods, and POS systems. The Mean Time Between Failures (MTBF) is 30,000 hours.
