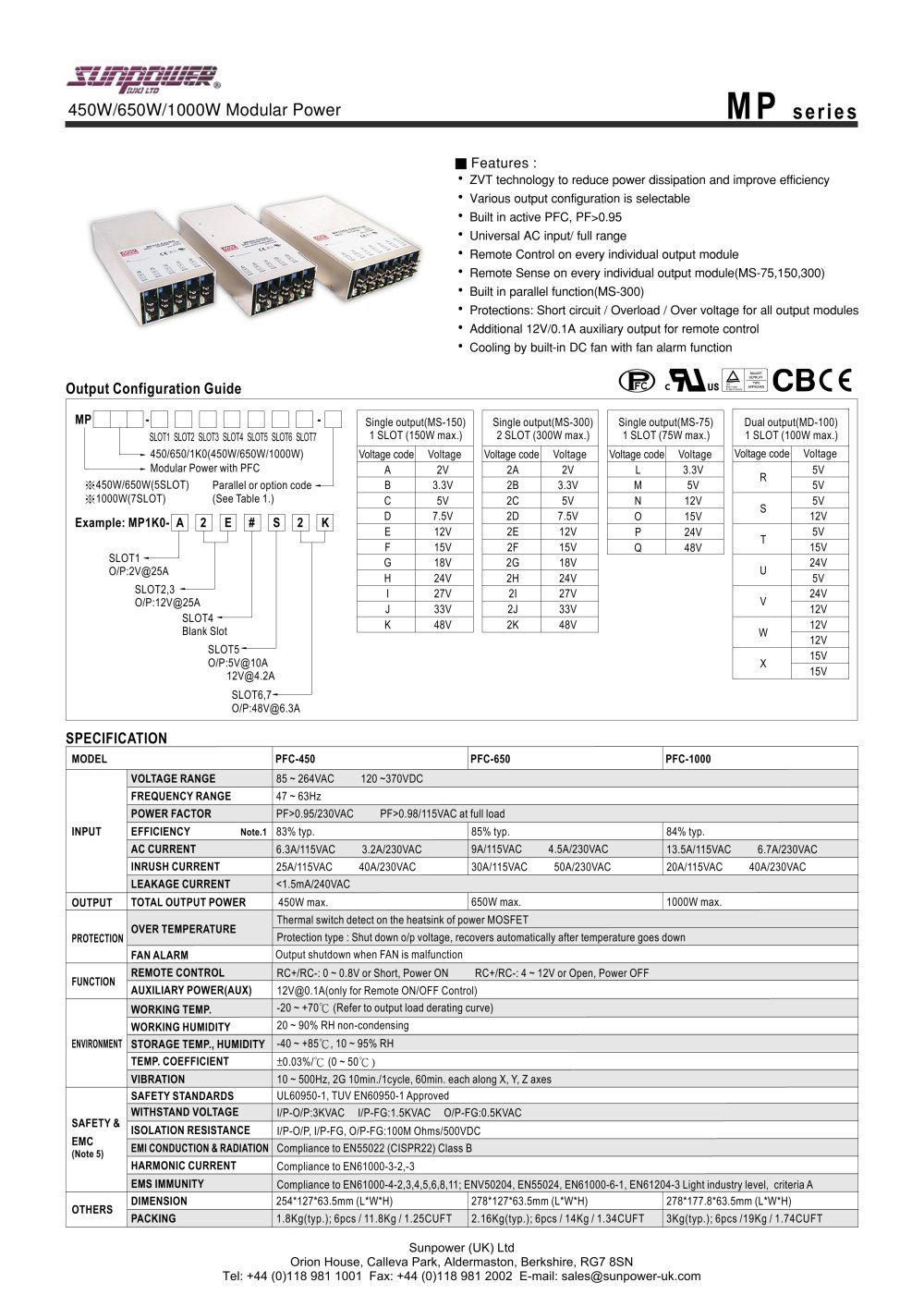

Overview: This document provides a detailed configuration guide for the Modular Power (MP) series, including specifications for various output modules and their configurations. It covers power ratings, voltage outputs, and protection features.

Specifications: The MP series offers modular power supplies with power ratings of 450W, 650W, and 1000W. The input voltage range is 85 ~ 264VAC or 120 ~ 370VDC, with a frequency range of 47 ~ 63Hz. The power factor is greater than 0.95 at 230VAC and 0.98 at 115VAC at full load. Efficiency varies between 83% and 85% depending on the model.

Output Configuration: The document details various slot configurations for different power outputs. For example, SLOT1 provides 2V at 25A, while SLOT6 and SLOT7 provide 48V at 6.3A. The MP series supports single and dual output configurations with specific voltage codes for each output.

Protection Features: The MP series includes protections against short circuits, overload, and overvoltage. It also features a built-in active Power Factor Correction (PFC) and a parallel function for the MS-300 model. Additional features include remote control and sensing capabilities for individual output modules.

Environmental and Safety Standards: The power supplies comply with UL60950-1 and TUV EN60950-1 safety standards and meet various EMC directives. They operate within a temperature range of -20 to +70 degrees Celsius and a humidity range of 20% to 90% RH non-condensing.

Mechanical Specifications: The document provides detailed mechanical specifications, including dimensions and connector assignments for different models. It also includes derating curves and static characteristics for performance evaluation.

Additional Notes: The document includes notes on ripple and noise measurement, tolerance definitions, and the importance of confirming EMC compliance in final equipment installations.
