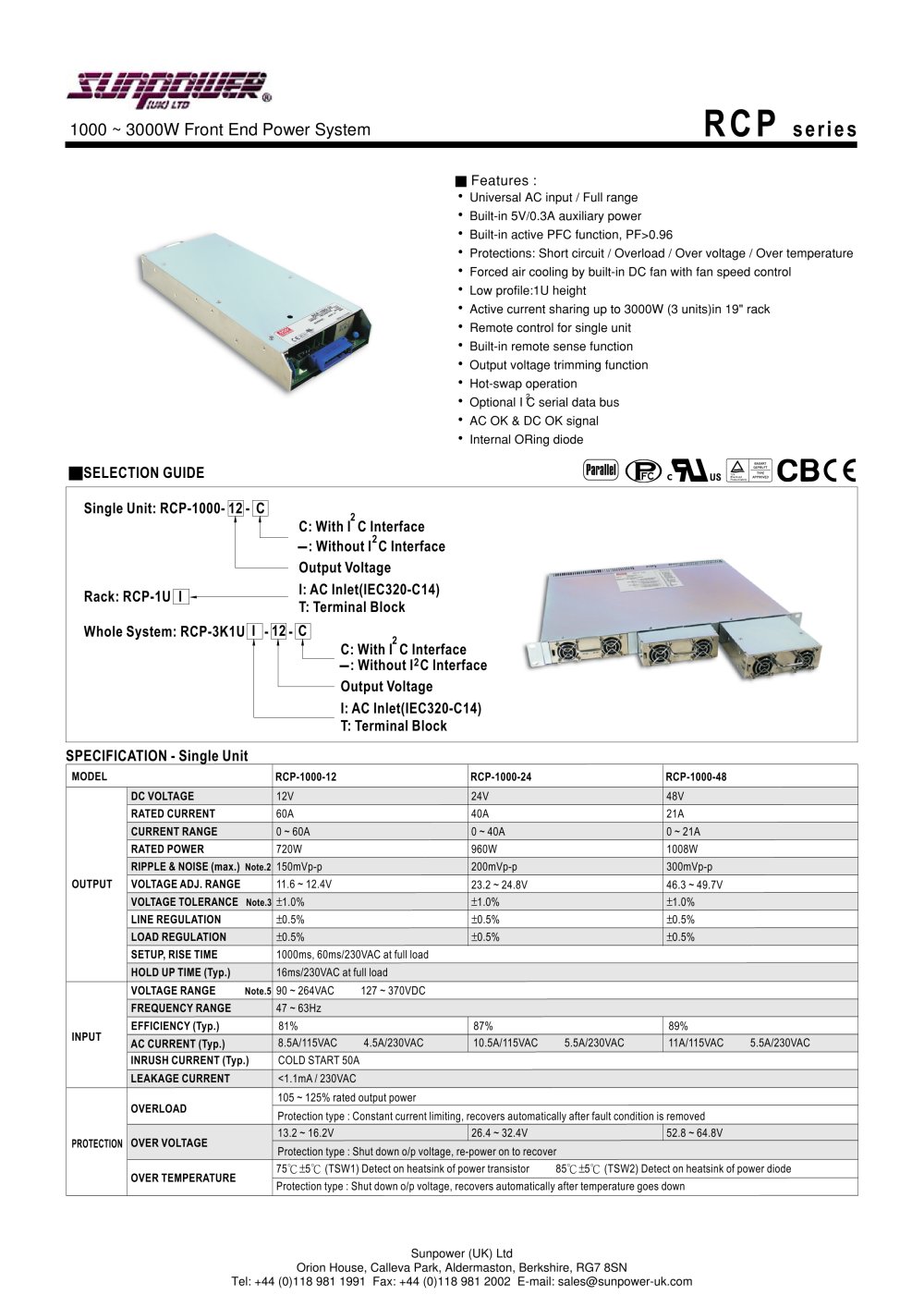

1000W Front End Power System

Product catalog summary

Specifications:
The document outlines the specifications for the RCP-1000 series power supply units, including models RCP-1000-12, RCP-1000-24, and RCP-1000-48. Key specifications include:

DC Voltage: 12V, 24V, 48V
Rated Current: 60A, 40A, 21A
Rated Power: 720W, 960W, 1008W
Efficiency: 81% to 89%
Input Voltage Range: 90 ~ 264VAC / 127 ~ 370VDC
Frequency Range: 47 ~ 63Hz

Features:
The RCP series includes features such as:

Built-in active PFC function with PF > 0.96
Protections against short circuit, overload, over voltage, and over temperature
Forced air cooling with fan speed control
Remote control and sense functions
Hot-swap operation and optional I2C serial data bus
3-year warranty

Protection Mechanisms:
The units are equipped with various protection mechanisms:

Overload: 105 ~ 125% rated output power
Over Voltage: 13.2 ~ 16.2V, 26.4 ~ 32.4V, 52.8 ~ 64.8V
Over Temperature: Shutdown and automatic recovery

Rack System Specifications:
The RCP-3K1U rack system supports:

Voltage Range: 90 ~ 264VAC / 127 ~ 370VDC
Max Output Power: 2160W to 3024W
Max Output Current: 180A to 63A

Safety and Standards:
The units comply with:

UL60950-1, TUV EN60950-1
EN55022 (CISPR22) Class B
EN61000-3-2,-3 and EN61000-4-2,3,4,5,6,8,11

Environmental Conditions:
Operating conditions include:

Working Temperature: -20 ~ +60°C
Storage Temperature: -40 ~ +85°C
Humidity: 20 ~ 90% RH non-condensing

Functions and Controls:
The document details various functions such as:

Remote ON/OFF control
Voltage drop compensation
Output voltage trimming
Front panel indicators for AC OK, DC OK, and temperature alarms

Additional Features:
The power supply units include:

Analog and digital functions for monitoring and control
EEPROM for storing configuration data
I2C bus interface for communication
