VL LED Indicator

VL LED Indicator
1 / 5Pages

Catalog excerpts

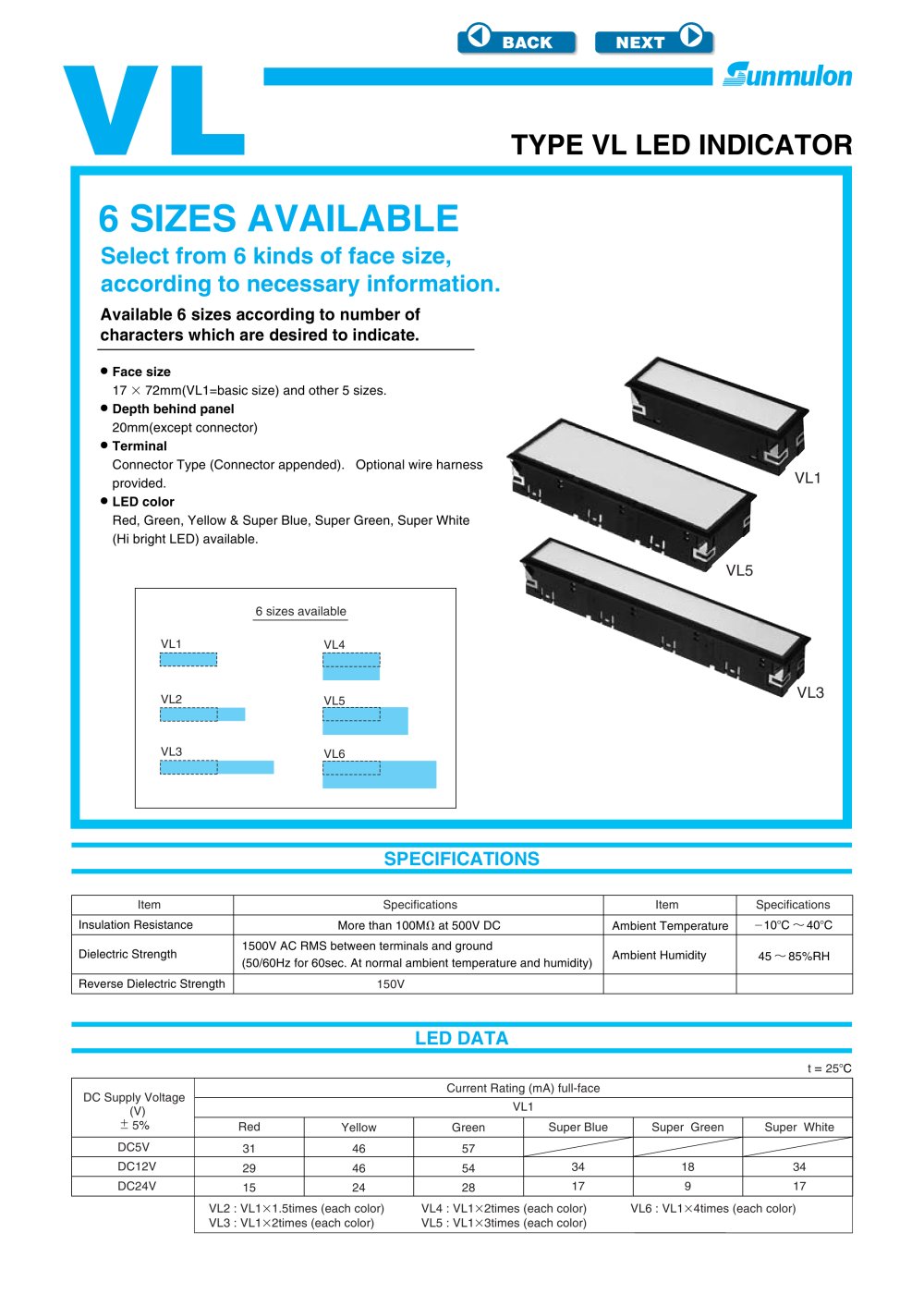

VL SPECIFICATIONS LED DATA 6 SIZES AVAILABLE Select from 6 kinds of face size, according to necessary information. Available 6 sizes according to number of characters which are desired to indicate. Face size 17 72mm(VL1=basic size) and other 5 sizes. Depth behind panel 20mm(except connector) Terminal Connector Type (Connector appended). Optional wire harness provided. LED color Red, Green, Yellow & Super Blue, Super Green, Super White (Hi bright LED) available. TYPE VL LED INDICATOR Item 6 sizes available Specifications Item Specifications Insulation Resistance Dielectric Strength Reverse Dielectric Strength More than 100M at 500V DC 1500V AC RMS between terminals and ground (50/60Hz for 60sec. At normal ambient temperature and humidity) 150V 10C 40C 45 85%RH Ambient Temperature Ambient Humidity VL1 VL1 VL5 VL2 VL3 VL3 VL6 VL5 VL4 DC Supply Voltage (V) 5% DC5V DC12V DC24V VL1 VL2 : VL11.5times (each color) VL3 : VL12times (each color) VL4 : VL12times (each color) VL5 : VL13times (each color) VL6 : VL14times (each color) Current Rating (mA) full-face t = 25C Red Yellow Green Super Blue Super Green Super White 31 29 15 46 46 24 57 54 28 34 17 18 9 34 17 BACK NEXT

Open the catalog to page 1

80 25 72 77 22 20 2.5 17 Sunmulon Mark 20 2.5 116 25 113 22 17 108 Sunmulon Mark VL STRUCTURE DIMENSIONS Tolerance : 0.4mm VL1 (1772) VL2 (17108) Cover Filter Case Light Cartridge (LED portion) is not removable. (Impossible to replace LED) VL 1 BACK NEXT

Open the catalog to page 2

VL ACCESSORIES 1 6 A A length 100cm 200cm Part No EH-3250-1 Pin no. EH-3250-2 Wire Color Brown Red Orange Yellow Green Blue 1 2 3 4 5 6 ORDERING CODE VL 1 2 3 4 1 2 1 2 3 4 5 6 17 72 17 108 17 144 35 72 35 108 35 144 SIZE W0 Full-face ILLUMINATION 1 2 For Horiz. Mtg. For Vert. Mtg. 1 2 3 Black Grey K H K N A K C Clear HOUSING COLOR COVER MOUNTING SUPPLY VOLTAGE LED CIRCUIT CONNECTOR Appended Not appended Anode Common Cathode Common Built-in Resistor 5V Built-in Resistor 12V Built-in Resistor 24V FILTER COLOR 1 2 3 4 6 Red Green Orange Yellow Milk White Blue LED COLOR 7 8 9 14 16 18 Red...
