VH Miniature Lighted Pushbutton Switch
9Pages

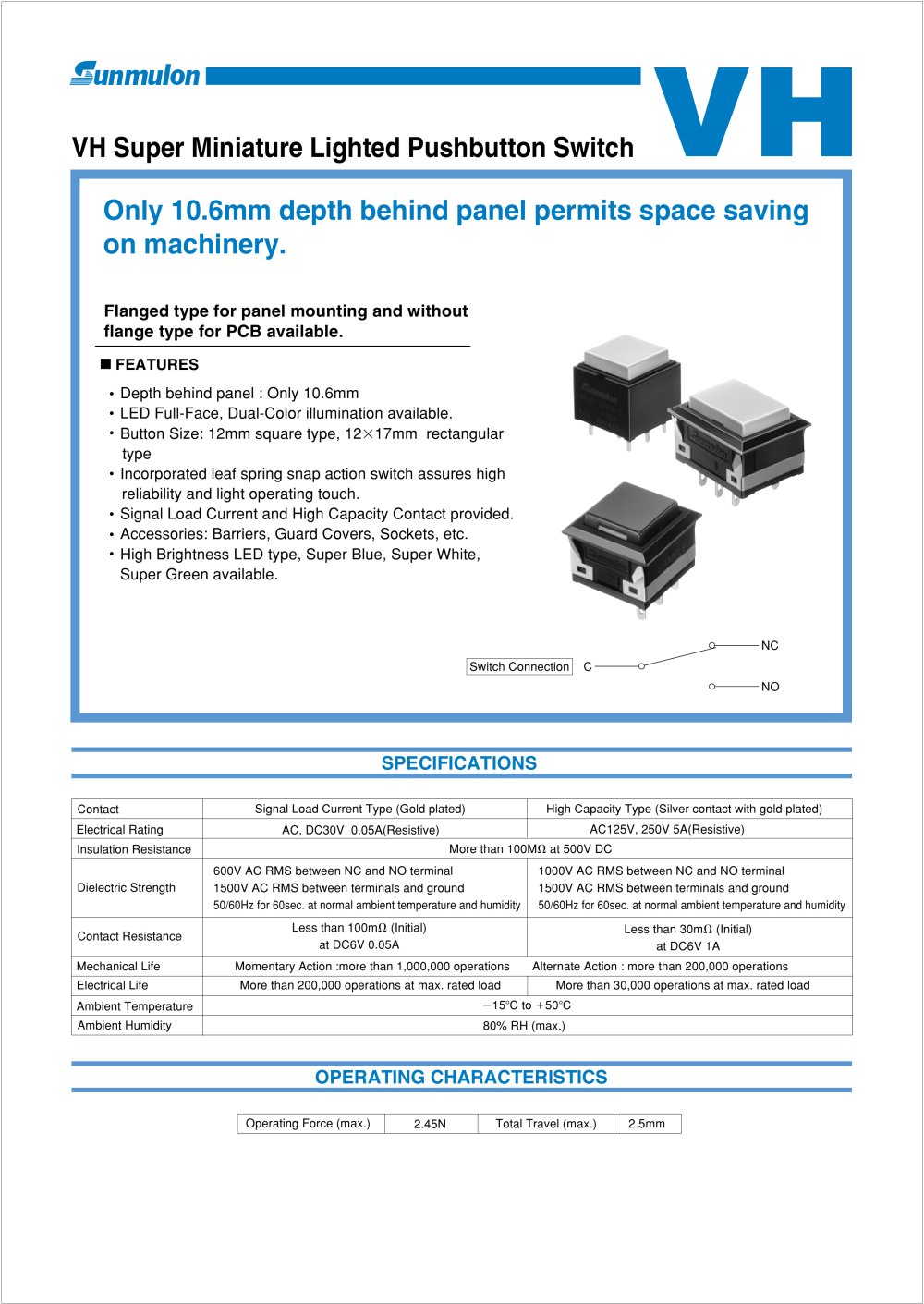

VH Only 10.6mm depth behind panel permits space saving on machinery. Depth behind panel : Only 10.6mm LED Full-Face, Dual-Color illumination available. Button Size: 12mm square type, 1217mm rectangular type Incorporated leaf spring snap action switch assures high reliability and light operating touch. Signal Load Current and High Capacity Contact provided. Accessories: Barriers, Guard Covers, Sockets, etc. High Brightness LED type, Super Blue, Super White, Super Green available. SPECIFICATIONS Contact Electrical Rating Insulation Resistance Dielectric Strength 600V AC RMS between NC and NO terminal 1500V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity 1000V AC RMS between NC and NO terminal 1500V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity Contact Resistance Mechanical Life Alternate Action : more than 200,000 operations Electrical Life Ambient Temperature Ambient Humidity OPERATING CHARACTERISTICS Operating Force (max.) AC, DC30V 0.05A(Resistive) AC125V, 250V 5A(Resistive) More than 100M at 500V DC Less than 100m (Initial) at DC6V 0.05A Less than 30m (Initial) at DC6V 1A Momentary Action :more than 1,000,000 operations More than 200,000 operations at max. rated load More than 30,000 operations at max. rated load 15C to 50C 80% RH (max.) 2.45N Total Travel (max.) 2.5mm Signal Load Current Type (Gold plated) High Capacity Type (Silver contact with gold plated) FEATURES Flanged type for panel mounting and without flange type for PCB available. VH Super Miniature Lighted Pushbutton Switch C NO NC Switch Connection

STRUCTURE DIMENSIONS VH 17.78 22.8 17 (15.6) 5 10.6 1.4 2.5 2.05 0.5 (15.6) 5 10.6 1.4 2.5 21 16 17.7 12 0.5 2.05 NC C NO NC NO C Without Flange With Flange Without Flange With Flange HOUSING FILTER (Use with clear button) BUTTON With Flange Sunmulon mark Sunmulon mark Top View Top View Tolerance : 0.4mm 1217mm Rect. Button 12mm Square Button 16 12

VH DIMENSIONS INTERNAL CONNECTION ARRANGEMENTS 5.080.1 5.080.1 5.080.1 5.080.1 5.080.1 5.080.1 20.3 18.6 17 2.5 4 11.4 0.6 2 1 0.5 (16) (16) 4 11.4 0.6 2.5 15.2 13.6 12 0.5 1 NC NO C NC C NO LC L2 L1 L2 L1 BOTTOM VIEW TOP VIEW BOTTOM VIEW TOP VIEW 5.080.1 5.080.1 5.080.1 5.080.1 LC()L2 LC()L1 Red Green Green Yellow Yellow Red Dual-Color Combination Mono-Color Dual-Color Any Voltage LED Full-Face (Rectangular) LED (Red, Green, Yellow) LED Full-Face (Square) 1217mm Rect. Button 12mm Square Button Without Flange Sunmulon mark Sunmulon mark Sunmulon mark Sunmulon mark Sunmulon mark Sunmulon...

TERMINALS TERMINAL SHAPE / PCB HOLE CUT-OUT VH 3 1.6 5.080.1 5.080.1 5.080.1 5.080.1 5.080.1 5.080.1 8-1.2 5.080.1 2.540.1 5.080.1 9-1.2 5.3 4 0.3 2.05 0.8 0.5 0.5 2 1 5.080.1 5.080.1 C NO NC C NO NC C NO NC C NO NC C NO C NO NC NC L1 L2 C NO NC L1 L2 L1 L2 C NO NC C NO NC L1 L2 LC C NO NC L1 L2 LC L1 L2 LC C NO C NO NC NC C NO NC NC NO C C NO NC L1 L2 NC NO C 10.16 2.3 5.08 5.08 5.08 5.08 5.08 6 10.16 2.3 5.08 5.08 5.08 5.08 5.08 6 10.16 2.3 2.54 5.08 6 10.16 2.3 5.08 6 BOTTOM VIEW BOTTOM VIEW BOTTOM VIEW BOTTOM VIEW NC NC LC NC NC NO NO NO NO C C C L1 C L2 In case of mounting switches...

VH LED DATA PANEL LAYOUT / PANEL CUT DIMENSIONS Max. operating current IFM (mA) DC reverse voltage VR (V) Forward voltage VF (V) Recommended operating current IF (mA) ITEM Current Reduced Factor (Over 25C working Temperature) Wiring Diagram 0.4mA/C 0.4mA/C Mono-Color Dual-Color Red Green Yellow Fig.1 Fig.2 30 10 4 20 30 10 4.4 20 30 10 4.2 20 As LED protection resistor is not built-in, please apply external resistor according to following: Red, Yellow 20 10 4.2 7 Green 20 10 4.2 16 S. Blue 20 4 3.3 9.2 S. White 20 4 3.3 6.8 S. Green 20 4 3.3 3.8 5(5%) 12(5%) 24(5%) Red, Yellow 130 1/8W 1300...

VH PANEL LAYOUT / PANEL CUT DIMENSIONS ACCESSORIES VH-0975-K VH-0975-G VH-1089-K VH-1089-H VH-2252-K VH-2252-H VH-2026-K VH-2026-H VH-2253-K VH-2253-H VH-0976-K VH-0976-G 21.4 10.1 10.9 21 6.5 9 6.5 26.4 10.1 10.9 21 6.5 22.4 26.4 10.1 10.9 17.5 21 17.3 21.4 10.1 10.9 17.5 9 6.5 21 14.7 4.4 19 4.2 14.7 4.4 19 4.2 18.221.4(n1) 23.426.4(n1) 18.2 18.2 t 10 10t 0.15 0.1 0.15 0.1 0.15 0.1 0.15 0.1 * The cover to be opened 90 and stopped. * The cover to be opened 90 and stopped. GUARD COVER 12mm Square Button Guard Cover prevents inadvertent and unintentional operations. GUARD COVER Gray Black...

ACCESSORIES FILTER DIMENSIONS REPLACEMENT PARTS VH Red, Yellow VH-3631-1 130 1/2W VH-3632-1 1300 1/2W VH-3633-1 3300 1/2W Green S. Blue S. White S. Green VH-3631-2 51 1/2W VH-3632-2 510 1/2W VH-3633-2 1300 1/2W VH-3631-3 160 1/2W VH-3632-3 910 1/2W VH-3633-3 2200 1/2W VH-3631-4 240 1/2W VH-3632-4 1300 1/2W VH-3633-4 3000 1/2W VH-3631-5 510 1/2W VH-3632-5 2400 1/2W VH-3633-5 5600 1/2W VH-1052 5V 12V 24V Voltage Color 16 5.08 10.16 9 5.08 5.08 17.2 16 5.08 10.16 9 2.54 5.08 17.2 NC NO C NO C NC NC NO C NO C NC 10.35 1.4 15.35 1.35 10.4 VH-2195 VH-0859 VH-0858-1R VH-2193-1R VH-0859-R VH-2195-R...

VH ORDERING CODE VH 1 2 M A L 0 1 2 3 4 S C K G 1 2 3 4 S W * R G Y K M C 1 2 * Non illuminated only 1) In case of Dual-Color, button should be C (clear) with Milk-White filter or Milk-White button. 2) Please be noted that the color of "Yellow" for LED, Button, Filter is actually "Orange Yellow" not Lemon Yellow. NOTES PCB Solder TERMINAL Note : Filter not to be used with colored button. Please note Alternate type is ava ilable only for Squre Butten FILTER HOUSING COLOR With Flange Without Flange FLANGE BUTTON COLOR ILLUMINATION TYPE BUTTON SHAPE DPDT SPDT DPDT SPDT CONTACT Indicator...
