TL LED Indicator

TL LED Indicator
4Pages

Catalog excerpts

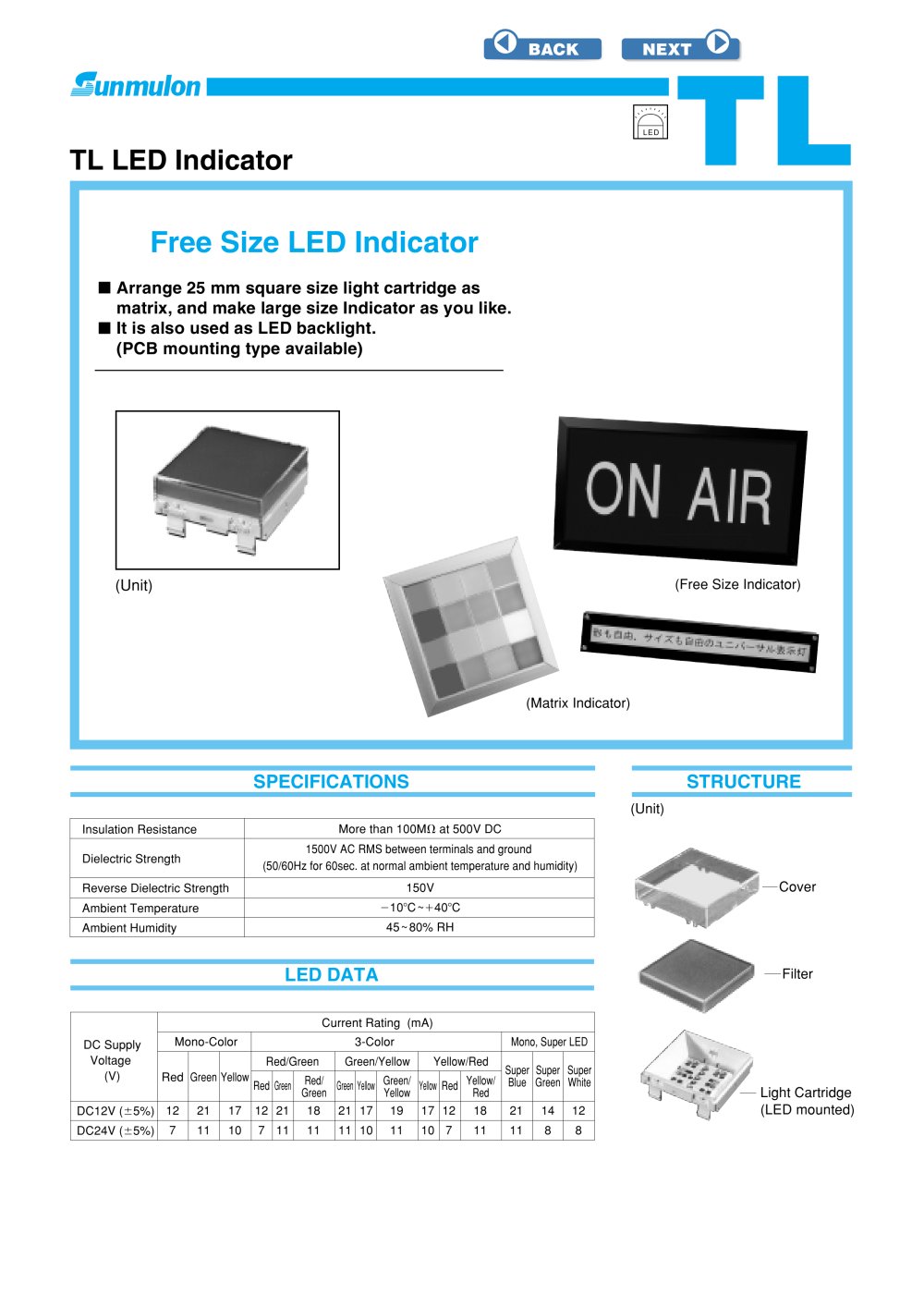

TL LED Indicator TL Free Size LED Indicator (Free Size Indicator) (Matrix Indicator) Insulation Resistance Dielectric Strength Reverse Dielectric Strength Ambient Temperature Ambient Humidity More than 100M at 500V DC 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity) 150V 10C~40C 45~80% RH Mono-Color 3-Color Red/Green Green/Yellow DC Supply Mono, Super LED Voltage (V) Current Rating (mA) DC12V (5%) DC24V (5%) 12 7 Red 21 11 Green Yellow 21 11 Super Blue 14 8 Super Green 12 8 Super White 17 10 21 11 Green 17 10 19 11 12 7 Red 21 11 Green Red/ Green Green/ Yellow Yellow/ Red 18 11 Yellow/Red 17 10 Yellow Yellow Red 12 7 18 11 STRUCTURE LED DATA SPECIFICATIONS Cover (Unit) Filter Light Cartridge (LED mounted) (Unit) BACK NEXT LED Arrange 25 mm square size light cartridge as matrix, and make large size Indicator as you like. It is also used as LED backlight. (PCB mounting type available)

Open the catalog to page 1

TL TERMINAL Wire size Diameter AWG #24-28 1.0~1.5mm Terminal No. Mono Color Mono Color 3-Color (G/R) 3-Color (Y/R) 3-Color (G/Y) Bright 1 2 3 Anode () Cathode () Cathode () Anode () Anode () Cathode () Anode () Anode () Anode () Anode () Anode () Anode () Cathode () Green Cathode () Red Cathode () G/R Cathode () Yellow Cathode () Red Cathode () Y/R Cathode () Yellow Cathode () Green Cathode () G/Y 4 5 Projection (Matrix, Free size) Sunmulon Mark (Unit) 0.635 5 4 3 2 1 5 4 3 2 1 5 4 3 2 1 5.74 5-0.9 hole 5.080.1 10.160.1 Min.25.1 Min.25.1 BACK NEXT TERMINAL LAYOUT TERMINAL SHAPE PCB HOLE...

Open the catalog to page 3

ORDERING CODE UNIT FREE SIZE INDICATOR MATRIX INDICATOR S0 Mono-color 3-color Mono-color, super LED S3 S4 2 12V 3 24V C Transparent Without cover C PCB terminal 7 Mono-color : Put color no. into the frame 1 3-Color : Put color no. into the frame 1, 2 (color combination : 87, 89, 97) In case of 3-color type, filter to be selected 4 (Milk White). Simultaneous lighting while no.3 & 4 terminal is impossible. 87 Green, Red, G/R 89 Green, Yellow, G/Y 97 Yellow, Red, Y/R Mono-color, super LED : Put color no. into the frame 1(3-color type is not provided) 8 9 18 14 16 Red Green Yellow Super Green...

Open the catalog to page 4
