TA 2-action Lighted Switch

TA 2-action Lighted Switch

Product catalog summary

Operating Characteristics:
The TA 2-action lighted switch has varying operating forces and travel distances depending on the model. Models TA1, TA2, TA5, TA6, and TA7 require a maximum operating force of 3.92N, while models TA3 and TA4 require 4.9N. The total travel is 3mm for TA1, TA2, and TA5, and 5mm for TA3, TA4, TA6, and TA7.

Specifications:
The switch features a silver contact with gold plating and a W/E Alloy #1 cross-bar contact. It supports electrical ratings of AC125V, 250V at 5A resistive, and AC125V, DC30V at 0.1A resistive. Insulation resistance is more than 100MΩ at 500V DC, and contact resistance is less than 30mΩ initially at DC6V 1A. The switch has a mechanical life of over 200,000 operations for alternate action and over 1,000,000 for momentary action. It can withstand vibrations of double amplitude 1.5mm at 10-55Hz for 2 hours and shocks of more than 30G for miss indication and more than 50G for endurance.

Environmental Conditions:
The switch operates in ambient temperatures from -15°C to 50°C and humidity less than 80% RH.

Lighting and Illumination:
The switch offers LED illumination options including full-face, split-face, and dual-color with Hi-Bright LED options in Super Blue and Super Green. It includes a built-in resistor for 5V, 12V, and 24V use, and the light cartridge is removable from the front panel.

Features:
The switch is designed for controlling two directions such as UP/DOWN or LEFT/RIGHT. It includes a precision-snap action switch movement with a coil spring for long life and tactile feedback. An accessory guard cover is available to prevent unintentional operations.

Dimensions and Connections:
The switch has specific dimensions and internal connections, with a depth behind the panel of only 22.5mm. It supports SPDT terminal layouts and various LED configurations.

Ordering Information:
The ordering code includes options for operation type, contact type, illumination, housing color, LED color, mounting, and terminal type. Specific configurations are available for mono-color, split-face, and dual-color illumination.

Catalog excerpts

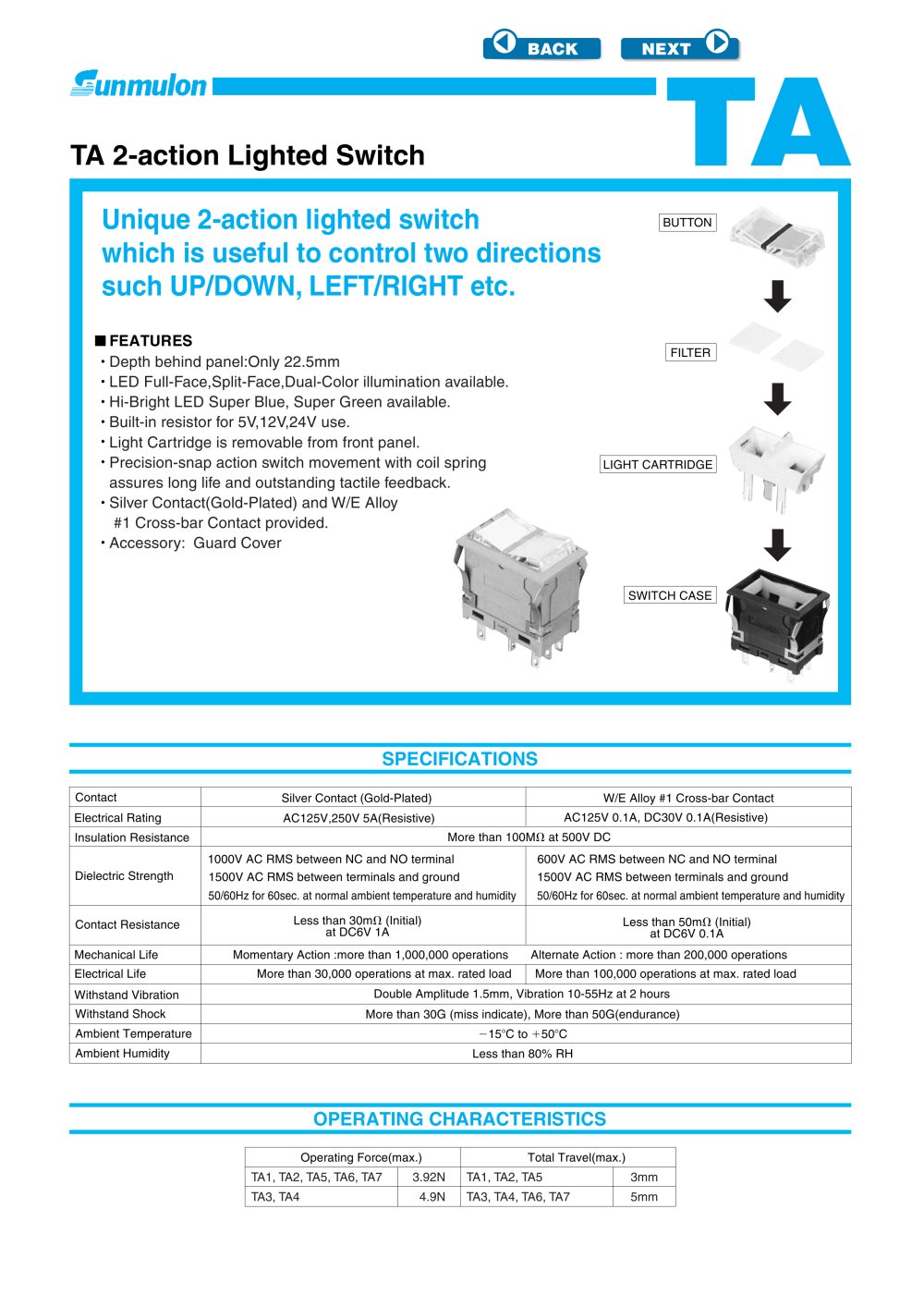

Unique 2-action lighted switch which is useful to control two directions such UP/DOWN, LEFT/RIGHT etc. • Depth behind panehOnly 22.5mm • LED Full-Face,Split-Face,Dual-Color illumination available. • Hi-Bright LED Super Blue, Super Green available. • Light Cartridge is removable from front panel. • Precision-snap action switch movement with coil spring assures long life and outstanding tactile feedback. • Silver Contact(Gold-Plated) and W/E Alloy #1 Cross-bar Contact provided. • Accessory: Guard Cover LIGHT CARTRIDGE OPERATING CHARACTERISTICS
