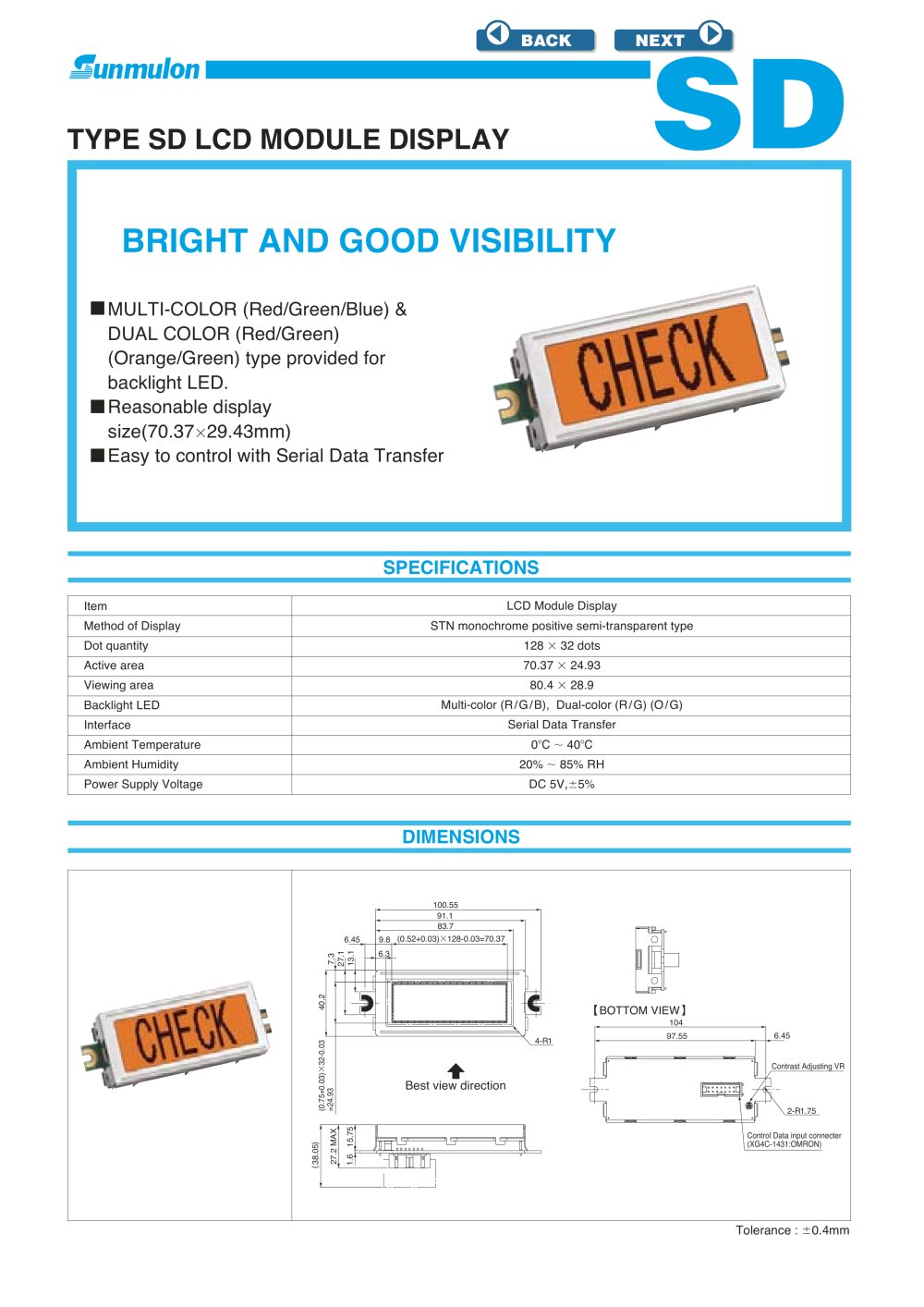

BACK NEXTSD TYPE SD LCD MODULE DISPLAY BRIGHT AND GOOD VISIBILITY SPECIFICATIONS DIMENSIONS LCD Module Display STN monochrome positive semi-transparent type 128 32 dots 70.37 24.93 80.4 28.9 Multi-color (R/G/B), Dual-color (R/G) (O/G) Serial Data Transfer 0C 40C 20% 85% RH DC 5V,5% MULTI-COLOR (Red/Green/Blue) & DUAL COLOR (Red/Green) (Orange/Green) type provided for backlight LED. Reasonable display size(70.3729.43mm) Easy to control with Serial Data Transfer Item Method of Display Dot quantity Active area Viewing area Backlight LED Interface Ambient Temperature Ambient Humidity Power Supply Voltage Control Data input connecter (XG4C-1431:OMRON) BOTTOM VIEW Contrast Adjusting VR 40.2 (0.52+0.03)128-0.03=70.37 (0.75+0.03)32-0.03 27.2 MAX =24.93 1.6 15.75 38.05 91.1 100.55 83.7 9.8 6.3 13.1 27.1 7.3 97.55 6.45 104 6.45 4-R1 2-R1.75 ( ) Best view direction Tolerance : 0.4mm

Open the catalog to page 1

BACK NEXT 0 -0.5 Stud(Inner Screw M3X0.5) 13.75 0.2 75.4 0.2 26.8+0.5 0 104 +0.5 0 15.5 For the purpose of protecting LCD panel,it is recommended to provide protecting panel such as clear acryl plate. It is needed to give a adequate space between panel surfasce and plate to avoid supress LCD. This panel mounting method is just for your reference.You can adjust mounting method according to your situation. Tolerance : 0.4mm Panel Cut Dimensions for reference SD TERMINAL LAYOUT/ TERMINAL FUNCTION TABLE ORDERING CODE CONNECTER: OMRON XG4C-1431 SD 1 Backlight LED 718 1819 20 Dual Color...

Open the catalog to page 2
