ML LED Indicator

ML LED Indicator
5Pages

Catalog excerpts

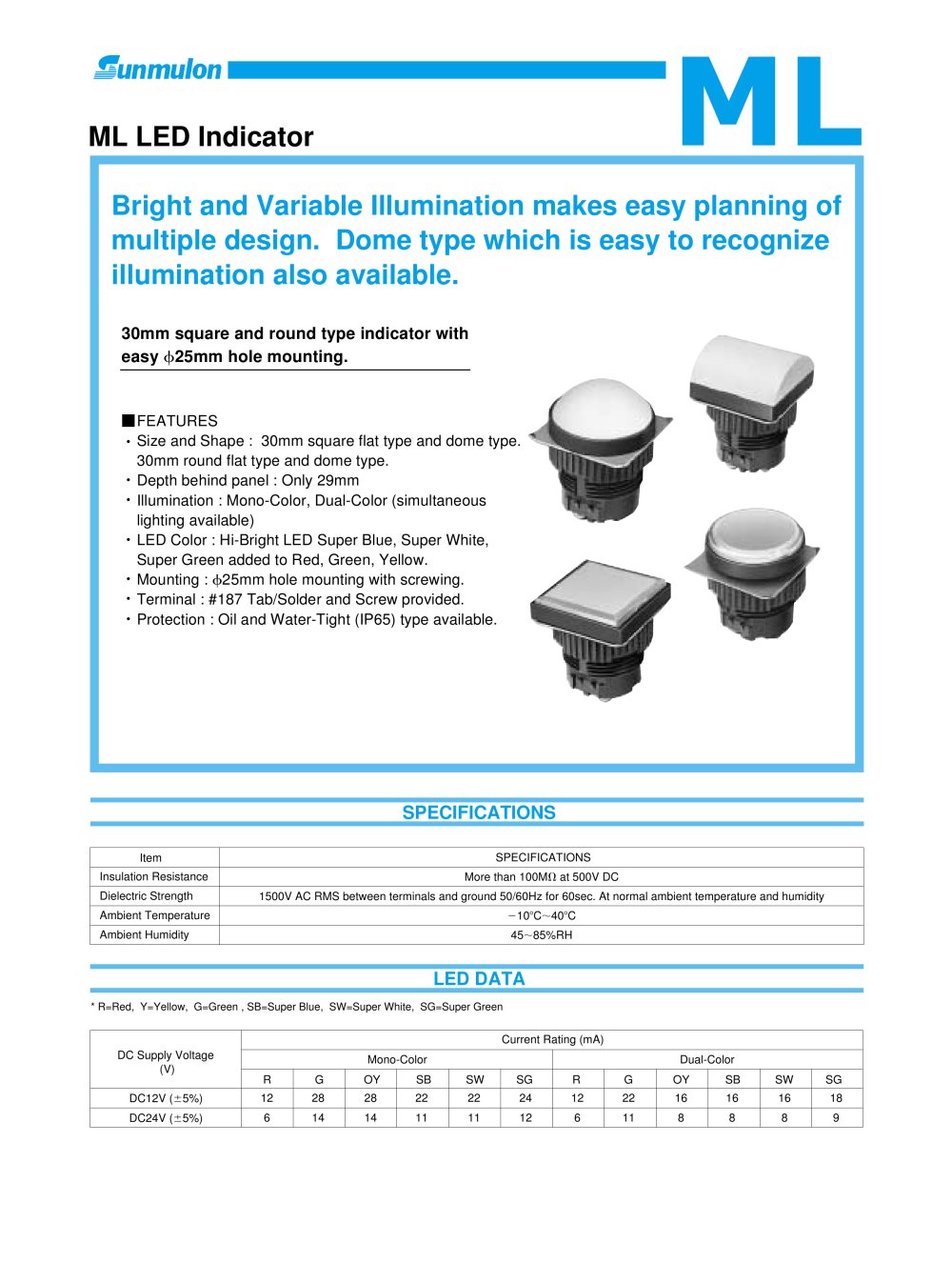

ML 12 6 28 14 22 11 22 11 24 12 28 14 12 6 22 11 16 8 16 8 18 9 16 8 DC12V (5%) DC24V (5%) ML LED Indicator Bright and Variable Illumination makes easy planning of multiple design. Dome type which is easy to recognize illumination also available. 30mm square and round type indicator with easy 25mm hole mounting. FEATURES Size and Shape : 30mm square flat type and dome type. 30mm round flat type and dome type. Depth behind panel : Only 29mm Illumination : Mono-Color, Dual-Color (simultaneous lighting available) LED Color : Hi-Bright LED Super Blue, Super White, Super Green added to Red, Green, Yellow. Mounting : 25mm hole mounting with screwing. Terminal : #187 Tab/Solder and Screw provided. Protection : Oil and Water-Tight (IP65) type available. SPECIFICATIONS SPECIFICATIONS LED DATA 1500V AC RMS between terminals and ground 50/60Hz for 60sec. At normal ambient temperature and humidity Insulation Resistance Dielectric Strength Ambient Temperature Ambient Humidity More than 100M at 500V DC 10C40C 4585%RH DC Supply Voltage (V) Current Rating (mA) Mono-Color Dual-Color R G OY SB SW SG R G OY SB SW SG Item * R=Red, Y=Yellow, G=Green , SB=Super Blue, SW=Super White, SG=Super Green

Open the catalog to page 1

M251.5 30 27.7 25 5 2 M251.5 R17.8 25 5 9.5 30 29 29 ML STRUCTURE DIMENSIONS Cover Filter (Not for dome) Light Cartridge (LED mounted) Housing Square Flat Square Dome Round Flat Round Dome 30mm square Dome type Flat type Sunmulon mark Top View Sunmulon mark Top View Tolerance : 0.4mm

Open the catalog to page 2

30 27.7 30 27.7 25 5 2 R15.5 25 5 9.5 L1 L2 L1 L2 L1 L2 L3 L1 L2 L3 L1 L2 L3 29 29 L1 L2 L3 L1 L2 L1 L2 L1L2 L1L3 R G OY OY SB R SB G G OY OY OY SB R L1L2 L1L3 SW R SW G SG R SG G SW SG ML INTERNAL CONNECTION ARRANGEMENTS * R=Red, Y=Yellow, G=Green , SB=Super Blue, SW=Super White, SG=Super Green DIMENSIONS M251.5 Sunmulon mark Top View M251.5 Sunmulon mark Top View 30mm round 24V 12V Dome type Flat type 24V 12V Mono-Color Dual-Color R, G, Y SB, SW, SG Combination of R, G, Y Combination of R, G, Y and SB, SW, SG Dual-Color Combination Tolerance : 0.4mm

Open the catalog to page 3

L1 L2 L3 30m 30n 30m 30n 30m 30n 30m 30n 25 0.2 0 2.4 R0.7 4.75 0.5 3.18 6.35 10 L2 L1 L3 5 5 3.75 6.5 L2 L1 L3 5 5 0.8 3.55 ML TERMINALS Panel Layout / Panel Cut Dimensions Sunmulon mark Sunmulon mark TERMINAL LAYOUT TERMINAL SHAPE #187 Tab/solder terminal Screw terminal #187 Tab/solder terminal Screw terminal Pan screw with M3 washer Panel thickness: 1 6mm Round Dome Round Flat Square Dome Square Flat Panel Layout Panel Cut Dimensions Minimum 30 Minimum 30 Tolerance : 0.4mm n : number of unit (horizontal) m : number of unit (vertical) *Panel Cut Dimension should be after panel paintings....

Open the catalog to page 4

ML-0566-CC ML-0567-CC ML-0568-LR ML-0569-LR ML-0568-LG ML-0569-LG ML-0568-LO ML-0569-LO ML-0568-LY ML-0569-LY ML-0568-LB ML-0569-LB ML-0568-LM ML-0569-LM ML-0570-LR ML-0572-LR ML-0570-LG ML-0572-LG ML-0570-LO ML-0572-LO ML-0570-LY ML-0572-LY ML-0570-LB ML-0572-LB ML-0570-LM ML-0572-LM ML-0570 ML-0572 24.8 1.2 22.9 1.2 1.2 0 0.1 24.8 0 0.1 0 0.1 ML ACCESSORIES FILTER DIMENSIONS Legend face Legend face ML 2 3 4 6 8 1 3 12V 24V 2 R G O Y B M C B P S0 T0 R0 M0 S3 T3 R3 M3 7 8 9 14 16 18 R G OY SB SW SG ORDERING CODE Mono-Color : Put color no. into the frame 1 Dual-Color Put color no. into the...

Open the catalog to page 5
