ED Super Miniature Digital Display Unit

ED Super Miniature Digital Display Unit

Product catalog summary

Overview: This document provides technical specifications and details for the ED Super Miniature Digital Display Unit, a compact 7-segment display unit designed for easy panel mounting and efficient numerical display.

Specifications:

Panel Cut Dimension: Should be determined after panel paintings. Tolerance is ±0.4mm.
Panel Thickness: Ranges from 1.0 to 4.0mm.
Series Connection: Up to 8 units can be connected in series.
Display Unit: Compact R-shaped design with a smoked cover, available in red and green LED colors.
Character Height: 8mm with a depth behind the panel of 33mm.
Terminal Connection: IC pitch (2.54mm pitch) terminal for connectors.

Electrical Specifications:

Supply Voltage: DC5V ±5%, DC12V ±10%, DC24V ±10%.
Current Consumption: 65mA max for one unit.
Input Voltage Levels: Low level: 0V to 1.5V, High level: 3.5V to 5V.

General Specifications:

Operating Temperature: -15°C to 50°C.
Humidity: Up to 80% RH.
Display Pattern: 7-segment LED displaying 0-9 with a decimal point.

Connection and Input:

Input Circuit: Operates with 5V; user side output should be an open collector circuit or less than 5V impression circuit.
Input Timing: Latch input and BCD data with specific timing requirements (t1: 0.25ms, t2: 0.5ms, t3: 0.25ms, PW: 1ms).

LED Ratings:

Forward Current: 10mA max.
Reverse Current: Max 100µA.
Luminous Intensity: 6.3mcd for green, 563nm peak wavelength; 6.3mcd for red, 610nm peak wavelength.

Additional Notes:

Side plates for panel mounting are to be ordered separately.
Connectors are not included and must be procured separately.

Catalog excerpts

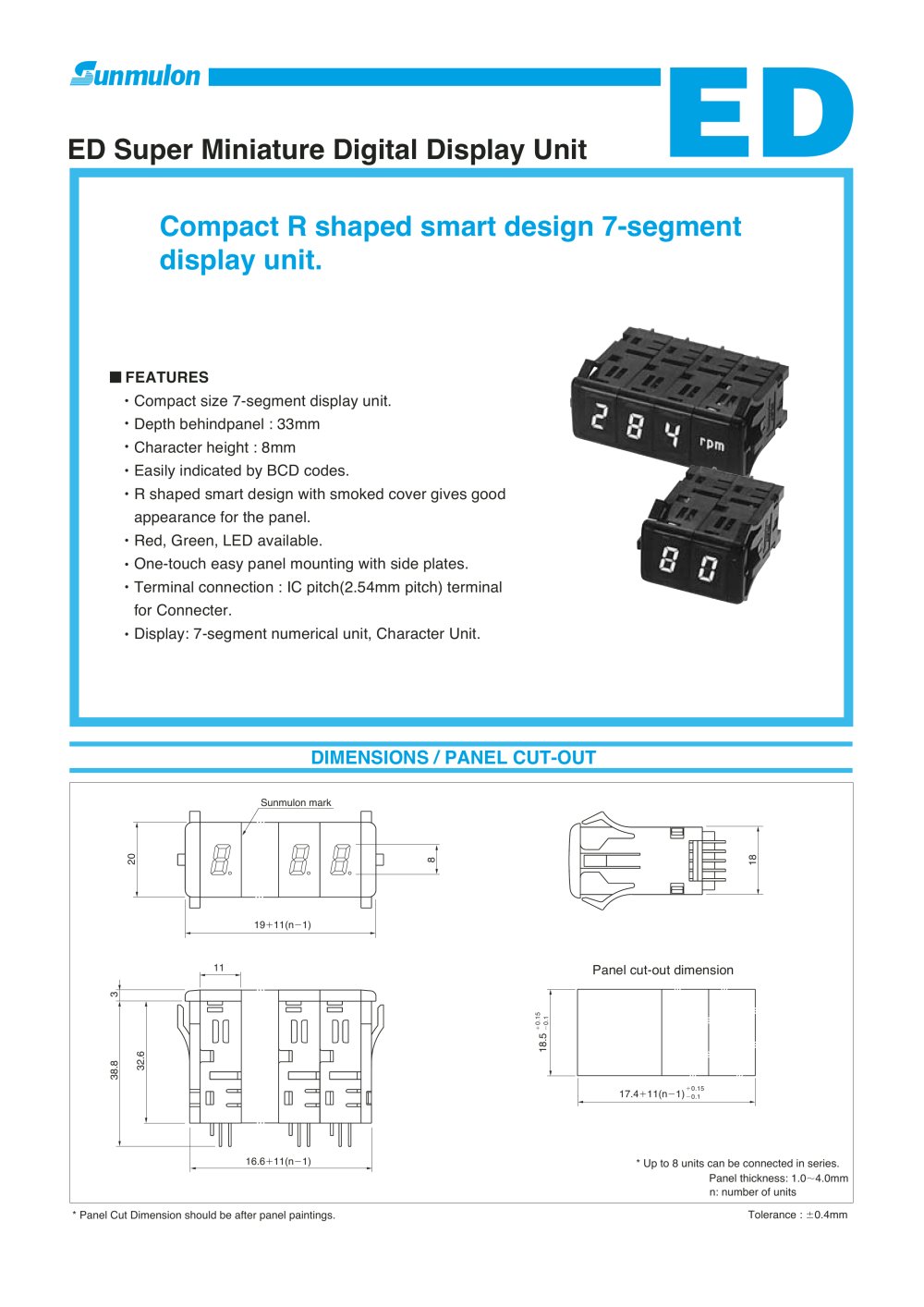

ED Super Miniature Digital Display Unit-1

ED 18 18.5 20 8 11 38.8 32.6 3 * Panel Cut Dimension should be after panel paintings. n: number of units Panel thickness: 1.04.0mm * Up to 8 units can be connected in series. Panel cut-out dimension DIMENSIONS / PANEL CUT-OUT Tolerance : 0.4mm 17.411(n1)0.15 0.1 0.15 0.1 1911(n1) 16.611(n1) Sunmulon mark Compact R shaped smart design 7-segment display unit. ED Super Miniature Digital Display Unit FEATURES Compact size 7-segment display unit. Depth behindpanel : 33mm Character height : 8mm Easily indicated by BCD codes. R shaped smart design with smoked cover gives good appearance for the panel. Red, Green, LED available. One-touch easy panel mounting with side plates. Terminal connection : IC pitch(2.54mm pitch) terminal for Connecter. Display: 7-segment numerical unit, Character Unit.

Open the catalog to page 1

ED Super Miniature Digital Display Unit-2

ED PW t1 t2 t3 1 10 2 3 4 5 6 7 8 9 A B C D LE BI DP GND VDD DC5V5% DC12V10% DC24V10% 65mA MAX (1 unit) 3.5V5V Low level input voltage 0V1.5V High level input voltage Current consumption Supply voltage Item Type Electrical Rating Numerical Unit (with circuit) SPECIFICATIONS ED-BN 1 ED-BN 2 ED-BN 3 1550C 80%RH Positive, Negative Red, Green 7-segment LED : 09, Decimal point BCD Numerical unit Ambient Humidity Ambient Temperature Input logic(Data only) Luminous element Display pattern General Specification 5V Block Diagram Note: 5V type has no Constant voltage circuit. Numerical unit Decoder driver...

Open the catalog to page 2

ED Super Miniature Digital Display Unit-3

ED DP BI LE D C B A BCD H H H H H H H H H H H H H H H H L X X H H H H H H H H H H H H H H H H X L X L L L L L L L L L L L L L L L L X X H L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) H(L) H(L) H(L) H(L) H(L) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) H(L) H(L) H(L) L(H) L(H) H(L) H(L) L(H) L(H) H(L) H(L) L(H) L(H) H(L) H(L) H(L) H(L) L(H) L(H) L(H) L(H) H(L) H(L) H(L) H(L) H(L) H(L) H(L) H(L) H(L) H(L) H(L) 20 20 20 5V 12V 24V 15 60 3 IFDC/seg IFP/seg VR 20 60 3 mA mA V VR3V IF10mA IF10mA IF10mA VF IR IV P IF10mA 2.0 Max.100 6.3 610 40 2.1 Max.100...

Open the catalog to page 3

ED Super Miniature Digital Display Unit-4

ED ED ED D 0 A BN D 1 1 2 1 2 3 5V 12V 24V R G R G 1 2 3 0 5V 12V 24V A ED E 1 E R G ED 0120 K BCD Numerical unit BCD Numerical unit(B) * Side plates to be ordered separately. * Side plates to be ordered separately. * Side plates to be ordered separately. NUMERICAL UNIT (WITHOUT CIRCUIT) Character Unit SUPPLY VOLTAGE Green Red LED COLOR DISPLAY Numerical Unit (with circuit) ORDERING CODE Negative Positive INPUT LOGIC Attached LEGEND PLATE SUPPLY VOLTAGE Green Red LED COLOR Full-Face DISPLAY TYPE Character Unit DISPLAY Red Green * A pair of Side Plate (Right/Left) is necessary for mounting on...

Open the catalog to page 4
