CA Cross Action Switch

CA Cross Action Switch
4Pages

Catalog excerpts

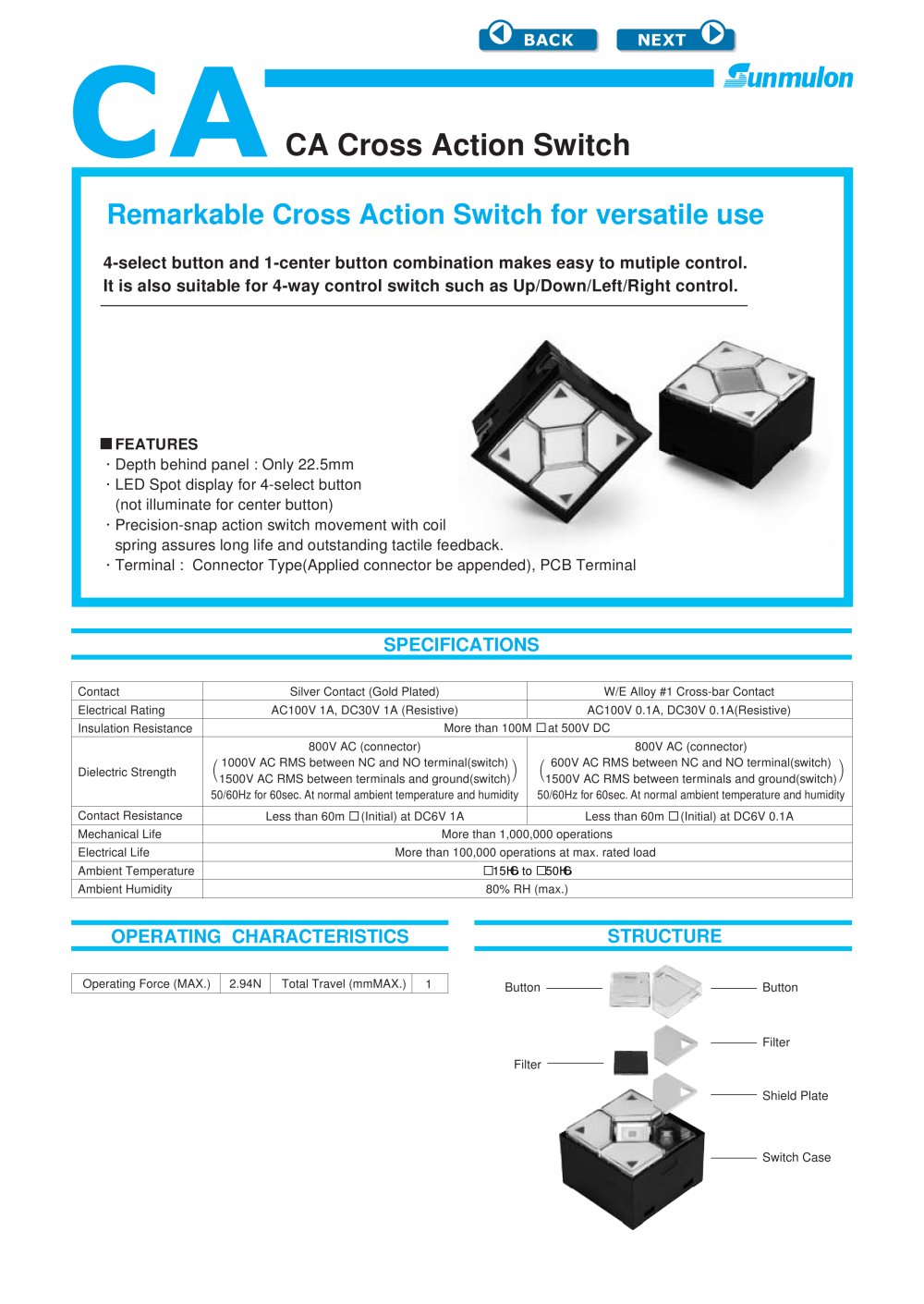

Button Button Filter Filter Shield Plate Switch Case CA 4-select button and 1-center button combination makes easy to mutiple control. It is also suitable for 4-way control switch such as Up/Down/Left/Right control. SPECIFICATIONS OPERATING CHARACTERISTICS STRUCTURE Silver Contact (Gold Plated) AC100V 1A, DC30V 1A (Resistive) 800V AC (connector) 1000V AC RMS between NC and NO terminal(switch) 1500V AC RMS between terminals and ground(switch) 50/60Hz for 60sec. At normal ambient temperature and humidity 800V AC (connector) 600V AC RMS between NC and NO terminal(switch) 1500V AC RMS between terminals and ground(switch) 50/60Hz for 60sec. At normal ambient temperature and humidity W/E Alloy #1 Cross-bar Contact AC100V 0.1A, DC30V 0.1A(Resistive) More than 100M at 500V DC Less than 60m (Initial) at DC6V 1A Less than 60m (Initial) at DC6V 0.1A More than 1,000,000 operations More than 100,000 operations at max. rated load 15C to 50C 80% RH (max.) Operating Force (MAX.) 2.94N Total Travel (mmMAX.) 1 Remarkable Cross Action Switch for versatile use Contact Electrical Rating Insulation Resistance Dielectric Strength Contact Resistance Mechanical Life Electrical Life Ambient Temperature Ambient Humidity BACK NEXT FEATURES Depth behind panel : Only 22.5mm LED Spot display for 4-select button (not illuminate for center button) Precision-snap action switch movement with coil spring assures long life and outstanding tactile feedback. Terminal : Connector Type(Applied connector be appended), PCB Terminal CA Cross Action Switch

Open the catalog to page 1

DIMENSIONS CA TERMINALS LAYOUT TERMINAL SHAPE/HOLE DIMENSION INTERNAL CONNECTION ARRANGEMENTS Tolerance : 0.4mm Sunmulon Mark Sunmulon Mark SW LED 123456 654321 (BOTTOM VIEW) This LED circuit is Anode common. In case of Cathode common circuit, polarities to be reversed With Flange Without Flange 12- 1 12.7 0.1 7.62 0.1 2.54 0.1 12.7 0.1 SW LED SW LED 12.7 2 5 10 2.54 5 12.7 10 123456 654321 123456 654321 Sunmulon Mark Sunmulon Mark (BOTTOM VIEW) Hole Dmension of PCB. 36 40 23.3 22.5 2.5 (25.8) Sunmulon Mark 36 22.5 2.5 Sunmulon Mark 33.2 33.2 Top View Top View With Flange Without Flange 1 2...

Open the catalog to page 2

CA LED RATINGS Panel Layout/Panel Cut Dimensions APPLIED CONNECTOR REPLACEMENT PARTS LED RATINGS The value of the series resistor for other voltage use can be determined by theformula (Switch should be non resistor type): VCC VF IF : Supply Voltage : Forward Voltage : Forward Current R VccVF IF Red 10 8 8 5 12 24 Green 10 8 8 Yellow 10 8 8 Blue 2 2 2 Supply Voltage(V) Current Rating (mA) 5% EXTERNAL RESISTOR Red 30 4.0 2.0 20 0.4 30 4.0 2.0 20 0.4 30 4.0 2.1 20 0.4 30 4.0 3.7 20 0.4 Green Yellow Blue Any voltage BUTTON/FILTER Clear Red Green Yellow CH-2325-CC CA-3453-CC CH-2326-LR...

Open the catalog to page 3

CA ORDERING CODE CAM C 1 1 3 2 5 4 2 3 4 5 OPERATION M Momentary BUTTON COLOR C Clear SWITCH CIRCUIT 4 5 4-Circuit 5-Circuit CONTACT S3 S5 Silver (Gold Plated) W/E Alloy #1Crossbar LED CIRCUIT With Flange (Panel Mounting) Without Flange (PCB Mounting) LED COLOR 1) 3) 2) CONNECTOR 4) K N Appended Not Appended 4 5 6 14 Red Green Yellow Blue Without LED SUPPLY VOLTAGE TO LED 1 2 3 4 5V Built-in Resistor 12V Built-in Resistor 24V Built-in Resistor Non Resistor Without LED A K Anode Common Cathode Common Without LED Filter Color 1 2 3 4 Red Green Yellow Milk White Without Filter Housing Color K...

Open the catalog to page 4
