BL LED Indicator
7Pages

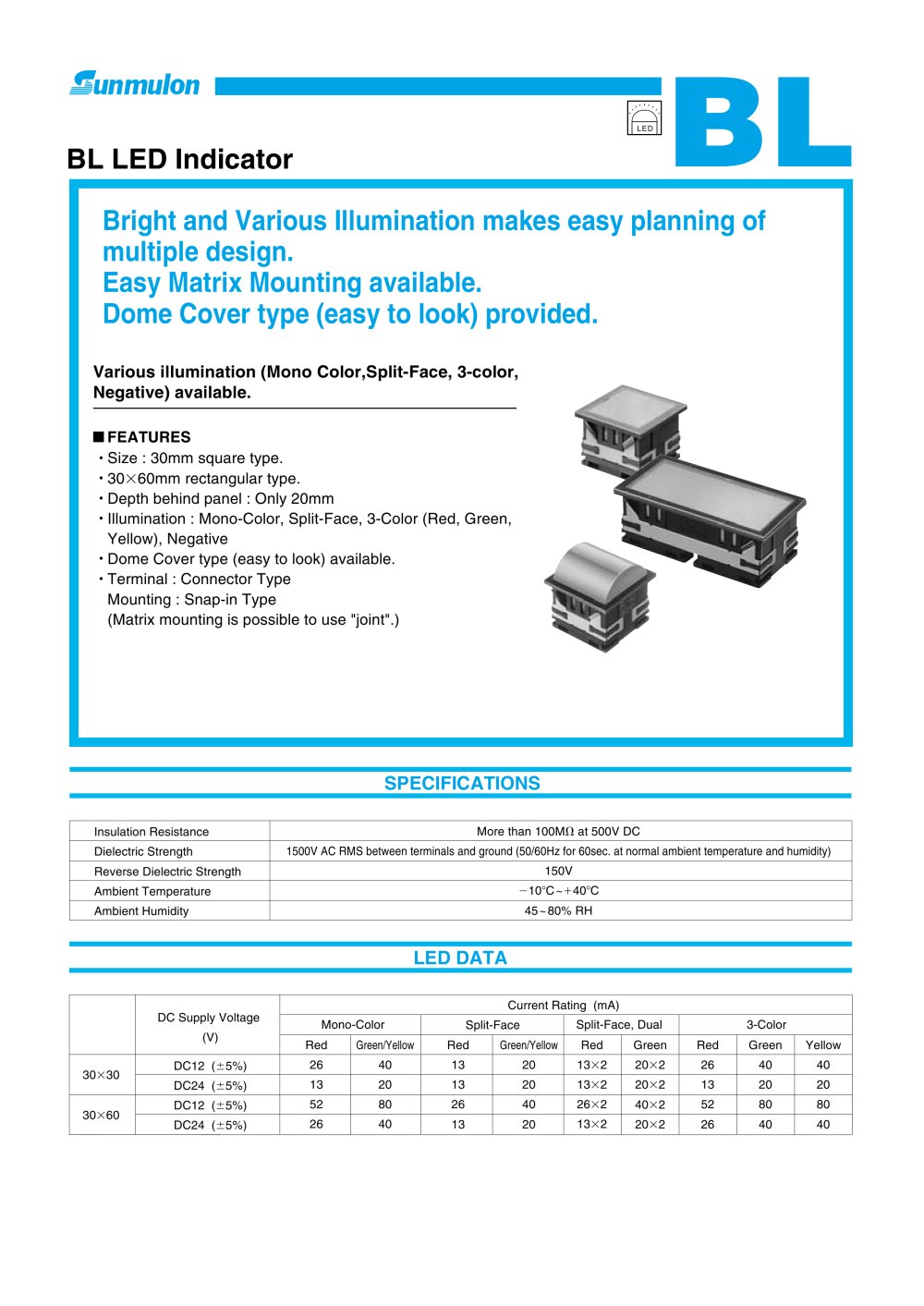

BL LED Indicator BL Bright and Various Illumination makes easy planning of multiple design. Easy Matrix Mounting available. Dome Cover type (easy to look) provided. SPECIFICATIONS LED DATA Mono-Color Red 26 13 52 26 Green/Yellow 40 20 80 40 DC Supply Voltage (V) Current Rating (mA) DC12 (5%) DC24 (5%) DC12 (5%) DC24 (5%) 3030 3060 Split-Face Red 13 13 26 13 Green/Yellow 20 20 40 20 Split-Face, Dual 3-Color Red 132 132 262 132 Green 202 202 402 202 Red 26 13 52 26 Green 40 20 80 40 Yellow 40 20 80 40 Various illumination (Mono Color,Split-Face, 3-color, Negative) available. More than 100M at 500V DC 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity) 150V 10C~40C 45~80% RH Insulation Resistance Dielectric Strength Reverse Dielectric Strength Ambient Temperature Ambient Humidity LED Size : 30mm square type. 3060mm rectangular type. Depth behind panel : Only 20mm Illumination : Mono-Color, Split-Face, 3-Color (Red, Green, Yellow), Negative Dome Cover type (easy to look) available. Terminal : Connector Type Mounting : Snap-in Type (Matrix mounting is possible to use "joint".) FEATURES

BL DIMENSIONS 26.8 30 Top View 30 20 2.5 MULON Mark JAPAN 26.8 30 25.3 Top View 30 1.5 8.6 20 MULON Mark R13.6 STRUCTURE Cover Plate Cover, Dome Cover, Dome Cover Plate Filter (not for dome) Filter (not for dome) Light Cartridge (LED mounted) Housing Connector Light Cartridge (LED mounted) Housing Connector 30mm square 3060mm Rectangular JAPAN 30mm square Dome type Flat type Tolerance : 0.4mm

BL DIMENSIONS 57 26.8 60.2 30 Top View 30 20 2.5 Sunmulon Mark Sunmulon Mark JAPAN JAPAN 57 26.8 60.2 55.5 30 25.3 Top View n : Number of A size (Row/Column) m: Number of B size (Row/Column) 30 1.58.6 20 R13.6 A A A B Row Square Rectangular Panel Cut Dimension JAPAN JAPAN (30.2n60.4m)2.8 0.4 0 0.4 (30.2n60.4m)2.8 0 (30.2n60.4m)3.2 30.2n60.4m (30.2n60.4m)3.2 30.2n60.4m 30 20 2.5 Panel Thickness 1mm~4mm Column Matrix Mounting (Without Matrix Frame) 3060mm Rectangular Dome type Flat type Tolerance : 0.4mm

BL INTERNAL CONNECTION ARRANGEMENTS Full-Face 3-Color Split, Horiz. Split,Horiz.,Dual Split, Vert. Split,Vert.,Dual Split, Vert.,Dual Split, Horiz., Dual Full-Face 3-Color Split, Vert. Split, Horiz. No.1 No.1 No.1 No.1 No.1 No.1 No.2 No.3 No.3 No.2 No.1 No.3 No.2 No.3 No.2 No.4 (Green) No.5 (Yellow) No.3 (Red) No.2 (Red) No.4 (Green) No.3 (Red) No.5 (Green) No.5 (Green) No.3 (Red) No.4 (Green) No.2 (Red) No.5 (Green) No.3 (Red) No.4 (Green) No.2 (Red) No.2 (Red) No.4 (Green) No.3 (Red) No.5 (Green) No.4 (Green) No.5 (Yellow) No.3 (Red) No.1, No.2 No.1, No.2 54 3 21 54 3 21 MULON mark BOTTOM...

BL Panel Cut Dimensions ACCESSORIES Connector (appended) Joint (Use for Matrix mounting) Wire Hearness Panel Layout Panel Cut Dimensions Panel thickness : 1~4mm Contact Pin press Tool Housing Wire : UL1061, AWG26 Contact Pin Honda Tsushin Kogyo made (HKP-F403) Connector (1Housing & 5 Contact Pins) to be appended. Pin no. 1 2 3 4 5 Red Green Yellow Blue Grey A Length 50cm 100cm Part No. CL-0230 Color CL-0231 Honda Tsushin Kogyo made (KP-309) n : number of indicators 30n1 30 60.2n1 30 30n1 60.2 27.2 27.230.2(n1) 27.2 57.860.5(n1) 57.8 27.230.2(n1) 1 2 3 4 5 A Part No. BL-0077 Part No. BL-0065...

BL ORDERING CODE BL 1 2 1 2 SHAPE & ILLUMINATION LED COLOR COVER PLATE FILTER COLOR HOUSING COLOR MOUNTING SUPPLY VOLTAGE DOME COVER 2 3 12V 24V Without LED K S0 S1 S2 S3 S4 S5 W0 W1 W2 W3 W4 W5 30mm square, Full-Face 30mm square, Split,Vert. 30mm square, Split, Horiz. 30mm square, 3-Color 30mm square, Split, Vert.,Dual 30mm square, Split, Horiz., Dual 3060mm Rect., Full-Face 3060mm Rect., Split,Vert. 3060mm Rect., Split, Horiz. 3060mm Rect., 3-Color 3060mm Rect., Split, Vert.,Dual 3060mm Rect., Split, Horiz., Dual T0 T3 H0 H3 30mm square, Full-Face, Dome 30mm square, 3-Color, Dome 3060mm...
