BD Miniature Digital Display Unit

BD Miniature Digital Display Unit

Product catalog summary

Specifications:
- Panel thickness ranges from 1.0 to 4.0mm.
- Up to 8 units can be connected in series.
- Panel cut-out dimensions should be determined after panel paintings.
- The display unit features a 7-segment numerical display with a character height of 14mm.
- Power supply options include DC5V ±5%, DC12V ±10%, and DC24V ±10% with a maximum current consumption of 65mA per unit.
- Operating temperature range is 15 to 50°C with a humidity of 80% RH.
- The unit uses BCD codes for numerical display and has a compact design with a depth of 40mm behind the panel.

Features:
- Compact size with a smart R-shaped design and smoked cover for aesthetic appeal.
- One-touch easy panel mounting with side plates.
- Terminal connection uses IC pitch (2.54mm pitch) terminals for connectors.
- The display pattern includes a 7-segment LED for numbers 0-9 and a decimal point.

Electrical Ratings:
- Low-level input voltage: 0V to 1.5V.
- High-level input voltage: 3.5V to 5V.
- Current consumption: 2mA max.
- Supply voltage: 5V, 12V, 24V.
- Duty ratio is 1/10 with a pulse width of 1ms.

Input and Output Circuits:
- The internal circuit operates at 5V, requiring an open collector circuit or less than 5V impression circuit on the user side.
- The input circuit should not be impressed with low voltage when power is not supplied.

LED Ratings:
- Forward voltage: 2.0V for red, 2.0V for green.
- Reverse current: 0.56µA for red, 1.00µA for green.
- Luminous intensity: 700mcd for red, 565mcd for green.
- Peak radiation wavelength: 100nm for red, 30nm for green.

Connection and Mounting:
- Connectors are not included and must be procured separately.
- Side plates are necessary for mounting on the panel and must be ordered separately.

General Notes:
- The unit features a latch input and BCD data input timing.
- The terminal function table provides details on power input, decimal point activation, and data latching.

Catalog excerpts

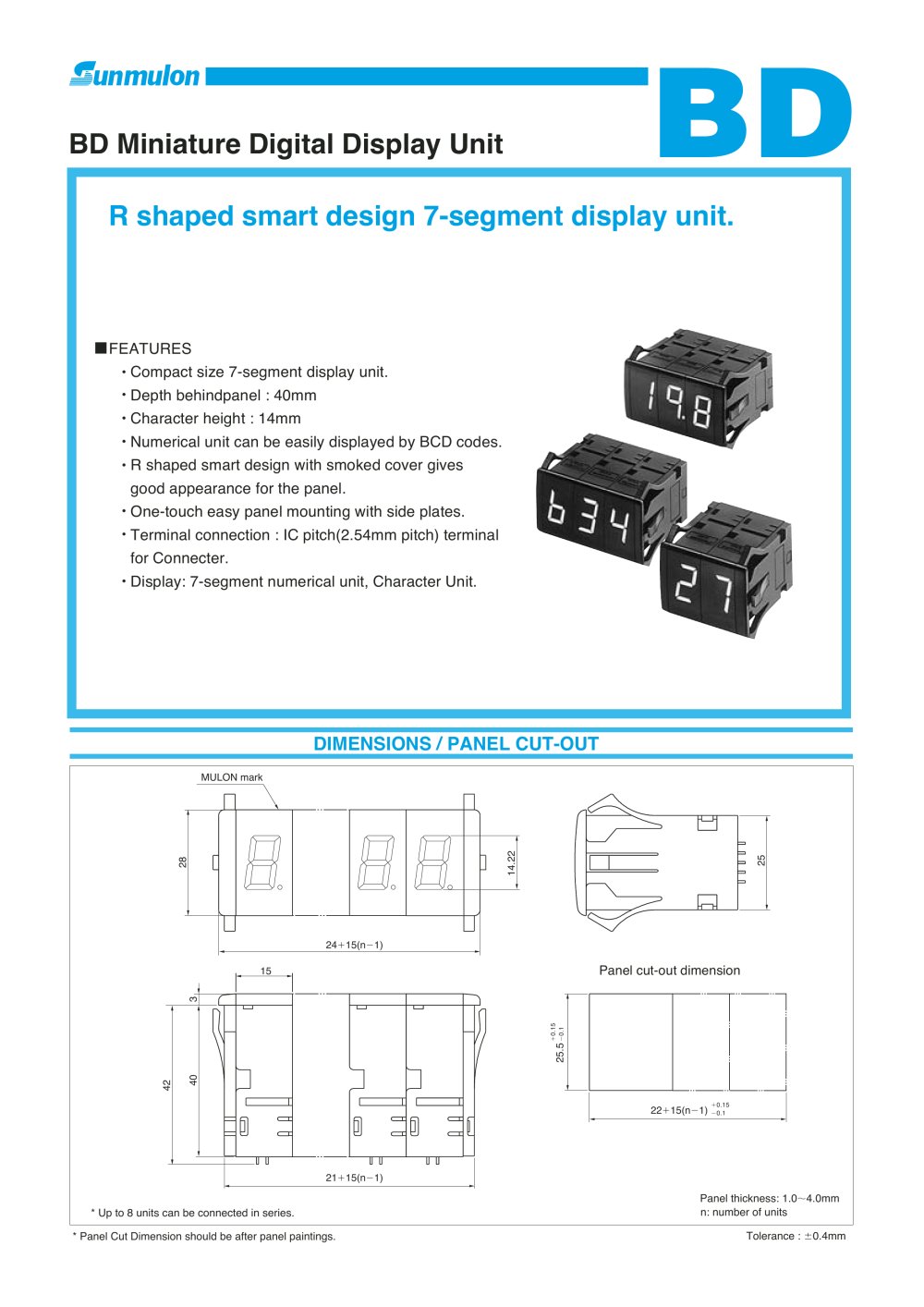

2415(n1) 2115(n1) 2215(n1) 15 28 14.22 25 42 40 3 25.5 BD * Panel Cut Dimension should be after panel paintings. n: number of units Panel thickness: 1.04.0mm * Up to 8 units can be connected in series. Panel cut-out dimension MULON mark DIMENSIONS / PANEL CUT-OUT R shaped smart design 7-segment display unit. BD Miniature Digital Display Unit 0.15 0.1 0.15 0.1 Tolerance : 0.4mm FEATURES Compact size 7-segment display unit. Depth behindpanel : 40mm Character height : 14mm Numerical unit can be easily displayed by BCD codes. R shaped smart design with smoked cover gives good appearance for the panel. One-touch easy panel mounting with side plates. Terminal connection : IC pitch(2.54mm pitch) terminal for Connecter. Display: 7-segment numerical unit, Character Unit.

Open the catalog to page 1

DC5V5% DC12V10% DC24V10% 65mA MAX (1 unit) 3.5V5V 0V1.5V 1550C 80%RH 5V 2mA MAX 4.7K PW t1 t2 t3 (AD) (LE) 1 10 2 3 4 5 6 7 8 9 A B C D LE BI DP G/R GND VDD 5V BD BD-BN 1 BD-BN 2 BD-BN 3 t1 0.25mS t2 0.5mS t3 0.25mS PW 1mS Block Diagram Latch input BCD Data Input Timing Note 1) Since internal circuit is operated with 5V, user side output should be Open Collector Circuit, or less than 5V impression circuit. 2) While power is not supplied in the unit, even low voltage not to be impressed on the input circuit. Output circuit (user side) Input circuit (BD) Sink current Input circuit and connection...

Open the catalog to page 2

G/R DP BI LE D C B A X X X X X X X X X X X X X X X X X X X H L H H H H H H H H H H H H H H H H L X X X X H H H H H H H H H H H H H H H H X L X X X L L L L L L L L L L L L L L L L X X H X X L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) L(H) H(L) H(L) H(L) H(L) H(L) H(L) H(L) H(L) H(L) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) H(L) L(H) L(H) H(L) H(L) L(H) L(H) H(L) H(L) L(H) L(H) H(L) H(L) L(H) L(H) H(L) H(L) H(L) H(L) L(H) L(H) L(H) L(H) H(L) H(L) H(L) H(L) X X X X X X X X X X X X X X X X X X X X BCD 5V 12V 24V 40 20 20 IFDC/seg IFP/seg VR 20 110...

Open the catalog to page 3

(Ta25C) VF IR IV P IF10mA IF10mA IF10mA IF10mA VR6V 2.0 0.56 700 100 2.0 1.00 565 30 V A mcd nm nm 2.54 2.54 0.635 6 10.16 5.73 9 10 1 2 a 2 b 3 f 5 g 6 c 7 e 8 DP 9 d 4 COM a b c d e f g DP BD Spectral half-width Peak radiation wavelength Luminous intensity/Segment Reverse current Forward voltage * Connecters are not appended, please procure above connecter set or prepare equivalent. XG5Z-1002 OMRON XG4M-1030 XG4T-1004 Connecter Set (Type No. BD-0556) Terminals shape Sunmulon mark Terminals Arrangement TERMINALS Terminal No. 1 Connecting Circuit Max. 5 Max. 5 Item Mark Measment Condition Red...

Open the catalog to page 4
