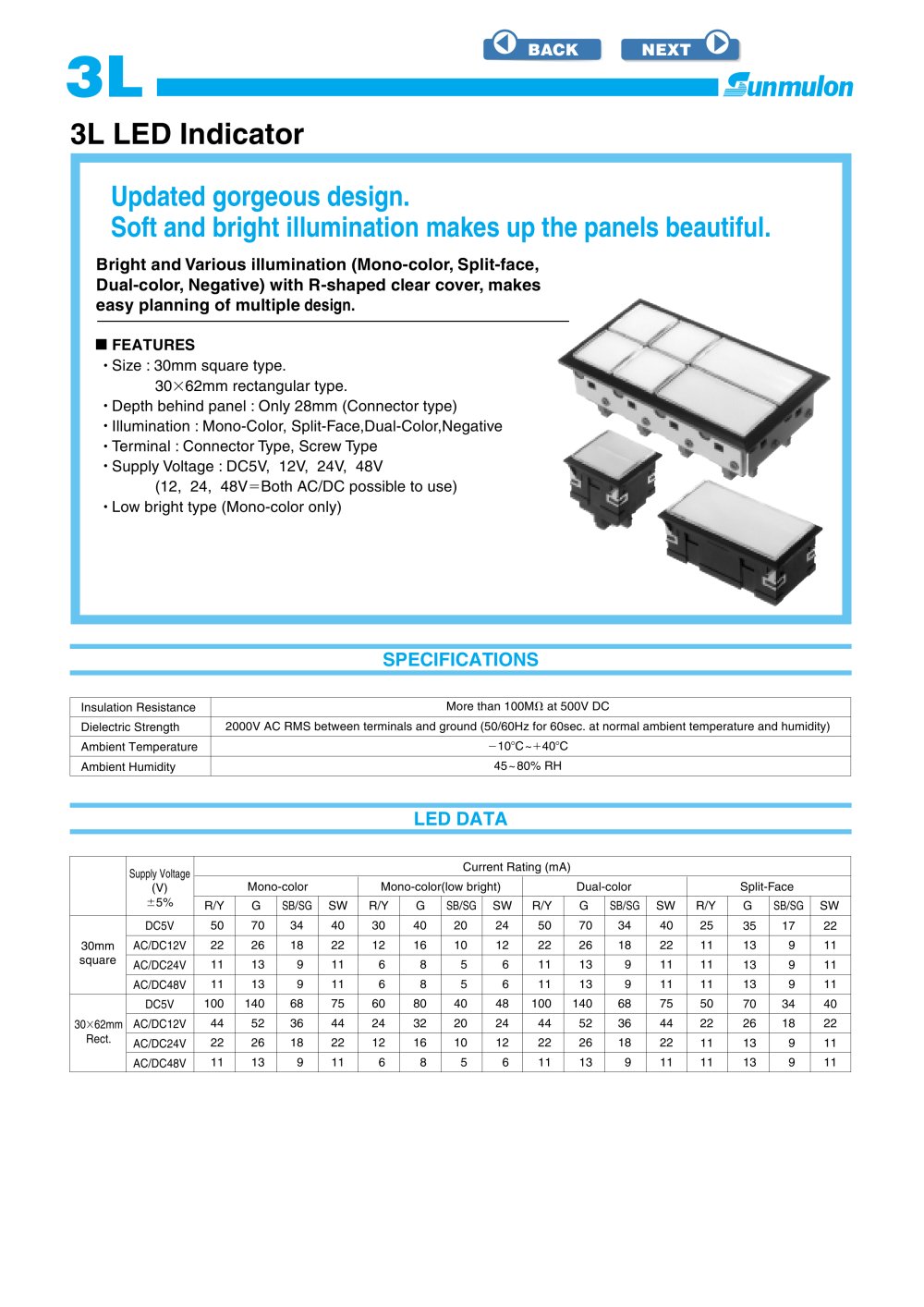

3L LED Indicator

Product catalog summary

Specifications

Insulation Resistance: More than 100MΩ at 500V DC.
Dielectric Strength: 2000V AC RMS between terminals and ground (50/60Hz for 60 seconds at normal ambient temperature and humidity).
Ambient Temperature: -10°C to 40°C.
Ambient Humidity: 45% to 80% RH.
Supply Voltage: DC5V, AC/DC12V, AC/DC24V, AC/DC48V.

Features

Updated design with soft and bright illumination.
Available in mono-color, split-face, dual-color, and negative illumination.
R-shaped clear cover for easy design planning.

Dimensions

Size: 30mm square type and 30x62mm rectangular type.
Depth behind panel: Only 28mm (Connector type).
Panel Thickness: 1mm to 6mm.

Internal Connection Arrangements

Compatible with AC/DC 12V, 24V, 48V, and DC 5V.
Specific arrangements for mono-color, low bright, dual-color, and split-face types.

Terminal Layout

Panel layout and cut dimensions provided for both square and rectangular types.
Connector and screw types available.

Accessories

Includes connector, terminal protection cover, and joint wiring bar.
Wire harness part numbers and specifications provided.

Ordering Code

Details on shape, illumination, LED color, cover, filter color, terminal, supply voltage, mounting, and housing color.
Notes on specific configurations and color options.

Catalog excerpts

3L STRUCTURE DIMENSIONS 30mm square Cover Filter Light Cartridge (LED mounted) Housing 3062mm Rectangular 30mm square, Connector type Connector type Screw type Connector type Screw type 30mm square, Screw type 32 36 30 40 23.5 4.8 36 28 23.5 4.8 32 30 Sunmulon mark Sunmulon mark Top View Top View BACK NEXT Tolerance : 0.4mm

Open the catalog to page 2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } .font5 { font:18.00pt "Arial", sans-serif; } .font6 { font:21.00pt "Arial", sans-serif; } .font7 { font:24.00pt "Arial", sans-serif; } .font8 { font:33.00pt "Arial", sans-serif; } .font9 { font:35.00pt "Arial", sans-serif; } .font10 { font:42.00pt "Arial", sans-serif; } .font11 { font:54.00pt "Arial", sans-serif; } 3L BACK...

Open the catalog to page 3

3L INTERNAL CONNECTION ARRANGEMENTS AC/DC 12V, 24V, 48V to 3 or 3 to 2 or 4 to 4 or 2 to 1 or 1 to 1 or 1 to 2 or 4 to 3 or 3 to 4 or 2 to 1 or 1 to 1 or 1 to 2 or 4 to 3 or 3 to 3 or 3 to 1 or 1 to 3 or 3 to 4 or 2 to 4 or 2 to 4 or 2 to 1 or 1 to 2 or 4 to 2 or 4 to 2 or 4 to 3 or 3 to 4 or 2 DC 5V AC/DC 12V, 24V, 48V Sunmulon mark Sunmulon mark 2 4 1 3 2 4 1 3 1234 1234 Sunmulon mark Sunmulon mark DC 5V In case of Mono-color, low bright type, please provide like a following circuit to prevent the current flow to another circuit. (example) SW SW Vcc 5V BACK NEXT 30mm square Split-face Dual-color...

Open the catalog to page 4

3L INTERNAL CONNECTION ARRANGEMENTS Sunmulon mark Sunmulon mark Sunmulon mark Sunmulon mark Left : to 1 or 1 Left : to 1 or 1 Left : to 1 or 1 Left : to 1 or 1 Left : to 1 or 1 Left : to 1 or 1 Right : to 1 or 1 Left : to 1 or 1 Right : to 1 or 1 Right : to 1 or 1 Right : to 1 or 1 Right : to 1 or 1 Right : to 1 or 1 Right : to 1 or 1 Right : to 1 or 1 Right : to 2 or 4 Right : to 2 or 4 Right : to 2 or 4 Left : to 2 or 4 Left : to 2 or 4 Left : to 2 or 4 Left : to 2 or 4 Right : to 2 or 4 1 4 1 4 Left Side Right Side Left Side Right Side DC 5V AC/DC 12V, 24V, 48V BACK NEXT Split-Face (Horizontal)...

Open the catalog to page 5

3L TERMINAL LAYOUT Panel Layout/Panel Cut Dimensions Panel Layout Panel Cut Dimensions 3 1 4 2 Sunmulon mark Sunmulon mark Sunmulon mark Sunmulon mark 3 1 4 2 1 2 3 4 1 2 3 4 2 4 1 3 1 2 3 4 36 36n1 32.2 32.236(n1) 68n1 36 32.2 64.268(n1) 68 36n1 64.2 32.236(n1) CONNECTOR 30mm square SCREW 30mm square 3062mm Rectangular 3062mm Rectangular Term. No. Term. No.( 5) 1. Please refer (ORDERING CODE). No.1 = Frame 1 2. Please refer (ORDERING CODE). No.2 = Frame 2 3. Please refer (ORDERING CODE), figure of split-face. (Window No. 1) 4. Please refer (ORDERING CODE), figure of split-face. (Window No. 2)...

Open the catalog to page 6

3L ACCESSORIES 4 1 Connector (appended) Joint wiring bar Terminal protection cover (appended with screw type) Part No. Wire Hearness Pin no. A Length 50cm 3L-0921-1 100cm 3L-0921-2 1 2 3 4 Color Brown Red Orange Yellow 3L-0922 3L-0892-1 3L-0892-2 3L-0884 Housing : XHP-4 Contact Pin : SXH-001T-P0.6 Connector (1 housing & 4 contact pins) to be appended. For matrix joint wiring (Screw type only). (Japan Solderless Terminal Mfg. made) No.1 No.1 Wire : UL1061, AWG22 equivalent Housing Contact Pin 64 32 A Part No. Part No. Part No. Part No. 3L 1 2 1 2 1 2 unnecessary necessary 1 2 For Horiz. Mtg. For...
