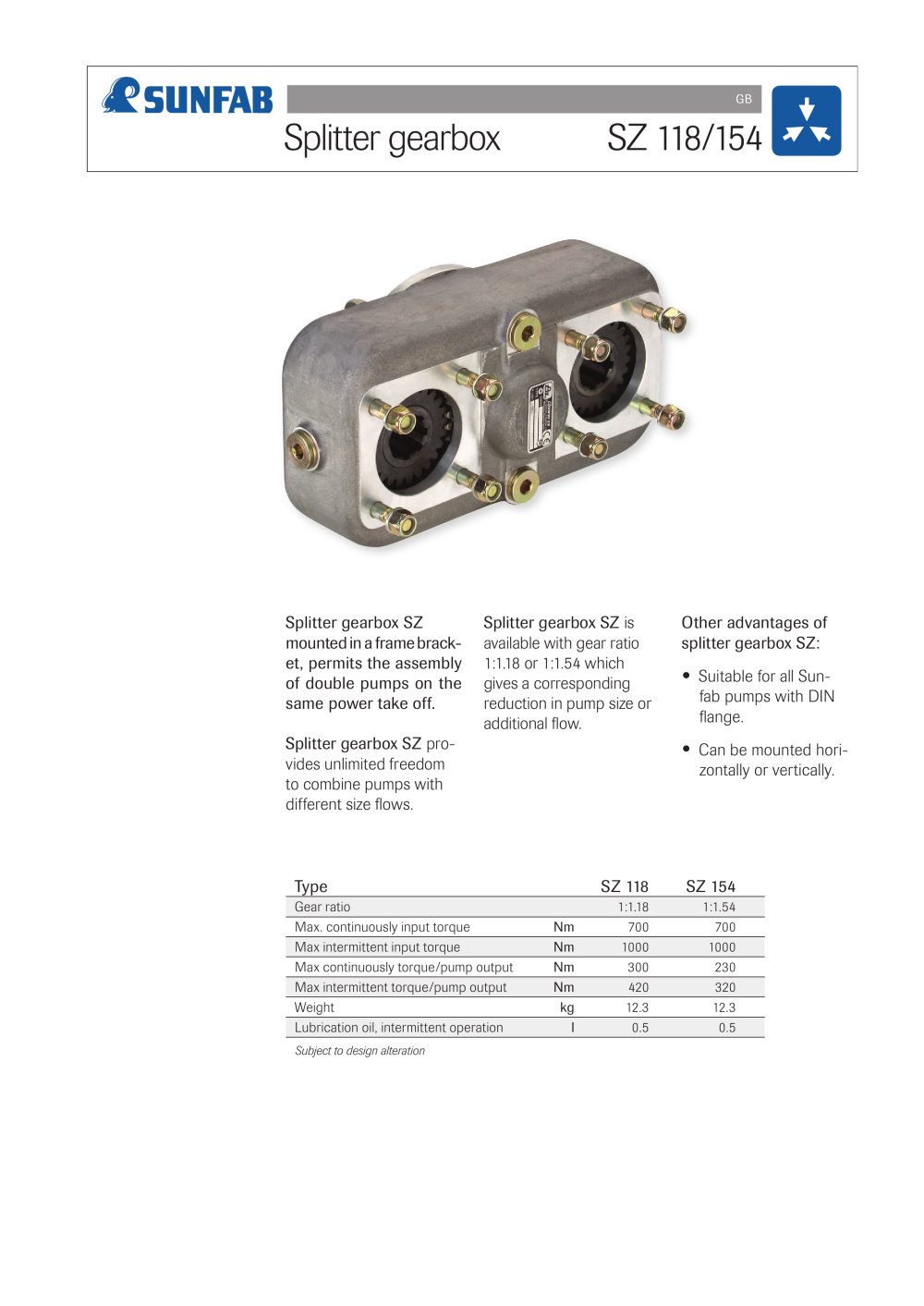

GB Splitter gearbox Splitter gearbox SZ mounted in a frame bracket, permits the assembly of double pumps on the same power take off. SZ 118/154 Splitter gearbox SZ is available with gear ratio 1:1.18 or 1:1.54 which gives a corresponding reduction in pump size or additional flow. Splitter gearbox SZ provides unlimited freedom to combine pumps with different size flows. Subject to design alteration • Suitable for all Sun- fab pumps with DIN flange. • Can be mounted horizontally or vertically. Type Gear ratio Max. continuously input torque Max intermittent input torque Max continuously torque/pump output Max intermittent torque/pump output Weight Lubrication oil, intermittent operation Other advantages of splitter gearbox SZ: SZ 118 SZ 154 1:1.18 1:1.54 Nm 700 700 Nm 1000 1000 Nm 300 230 Nm 420 320 kg 12.3 12.3 l 0.5 0.5

Open the catalog to page 1

140 310 100 93 93 M12 25 100 SC 012–034 = 202 SC 047–064 = 228 SC 084–108 = 259 160 With intermittent operation the gearbox should be filled with 0.5 litres of hypoid oil. Circulation lubrication is required with continuous operation to ensure cooling. Intermediate shaft connection 3405GB0602 The gearbox can also be equipped with an outgoing intermediate shaft on an optional pump output. An adapter and drive flange are required for this. For component parts see the accessory catalogue. Produced in Sweden by Bohman Information AB / Gävle Offset The flange for the drive shaft fits directly on...
