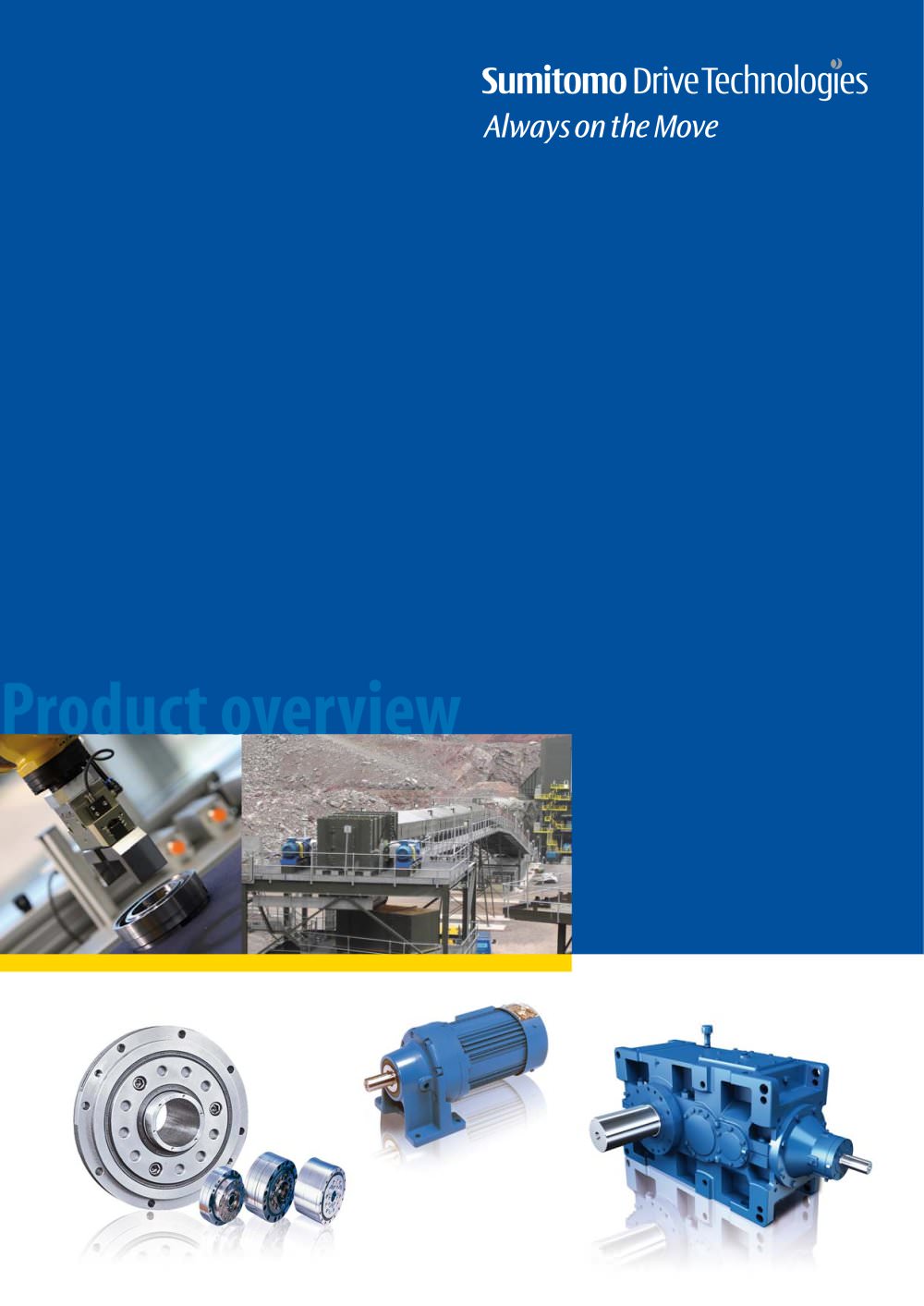

Product brochure Product overview

2 · 3 Sumitomo Drive Technologies History Some 400 ago, Masatomo Sumitomo opened a bookstore and pharmacy in the Japanese city of Kyoto. The Sumitomo family earned themselves a leading position in copper refining and opened a copper mine. Sumitomo grew continuously over the next centuries, developing and diversifying into numerous separate companies, which today form one of the largest company groups of the world. The Igeta symbol, which represents the lip of a well, now stands for the many values and ideals shared by the different Sumitomo companies. Sumitomo’s industrial sectors Sumitomo’s...

Motion Control Drives At a glance Zero backlash gears and installation sets-the Fine Cyclo series 4 Low backlash gear drives-servo planetary gear drives 6 Low backlash gear drives-servo cycloidal gear drives, servomotors 7 Cyclo Drive 6000 8 HBB and HSM parallel shaft gearboxes/gear motors 9 BBB and Neo Hyponic right angled gearboxes/gear motors 9 Paramax 9000 10 Paramax SPA and Paramax conveyor drives 11 Paramax SFC 12 Cyclo Drive and planetary gear drives 13 Custom solutions 14 Precision gears for Europe from Germany 15 Global service network 15 Gear drives/drive motors Industrial drives Centrifuge...

4 · 5 Fine Cyclo Zero backlash gear drives and installation kits – the Fine Cyclo series More and more applications require short cycle times and precision positioning in order to increase the efficiency of machines or to open up new application areas. For these types of applications, Sumitomo Drive Technologies has developed a range of finely graded, zero-play precision drive series. Compared with conventional gear drives, their construction principle provides extremely high torsional rigidity and low moment of inertia – ideal for highly dynamic applications. High gear ratios per reduction stage...

Precision drive with numerous variants FC-A type Installation set without output side bearings F1C-A type Sealed drive with output flange and integrated cross-roller bearing F2C-A type Sealed drive with output flange and integrated tapered roller bearings Variants: F2C-A cylindrical housing F2CF-A flange housing F3C-A type Sealed drive with output shaft and rigid tapered roller bearings on output side Up to 6 sizes .. Reduction ratios (single stage) 29/59/89/119/179 .. Nominal output torque up to 5,140 Nm .. Acceleration torque up to 7,610 Nm .. Lost motion < 1 arcmin Precision drive with hollow...

6 · 7 PPG EPG Motion Control Drives Sumitomo Drive Technologies offers scaled ranges of servo planetary gear drives: The Precision Line: for demanding, highly dynamic applications Economic Line: economic drive solutions for the medium performance range Features of these drive series include the ability to install the drives in any position and zero maintenance. Generously dimensioned bearings and optimised tooth meshing help enable long service life and smooth running. Low backlash gear drives – servo planetary gear drives .. Handling and robotics .. Packaging machines .. Materials handling .....

SERVO 100 SERVO 6000 Traction drives need to have low mass in order to deliver the required drive dynamics. Combined, the proven Cyclo principle and light-weight design ensure a low moment of inertia and a low noise level in a small, compact drive unit. The reduced torsional play variant of the Drive 6000 standard drive motor opens up new areas of application for your machines and equipment - without the need to modify machine interfaces. Three synchronous servomotor ranges cover high drive input speeds for low to medium rotational speeds, resulting in reliable and space-saving drive solutions....

Cyclo Drive 6000 8 · 9 Gear drives/drive motors VARIOUS OPTIONS OF THE CYCLO DRIVE 6000 SERIES Drives and gears used in industrial applications are often subjected to extremely high loads. This is where the Cyclo Drive gears demonstrate their special advantages in terms of their shock load capacity, efficiency, and reliability. With the Cyclo Drive 6000, Sumitomo Drive Technologies offers a both high-quality and robust range of high torque drives for virtually every industrial application. The drive series includes a large number of variants accommodating a wide variety of applications. Whether...

HBB/HSM BBB NEO HYPONIC BBB and HBB drives combine the advantages of the Cyclo drive with bevel gear (BBB) and helical gear (HBB) drives. This drive concept gives rise to numerous variants and possible applications and results in an extremely robust design with high overload reserves. With a 2 year guarantee period irrespective of the number of operating hours, BBB and HBB are an exellent choice for material handling applications, agitators, special machines, conveyor belts and other applications that require either bevel gear or helical gear drives. HBB/HSM parallel shaft drives/drive motors...

Paramax 9000 PARAMAX 9000 10 · 11 Industrial drives Paramax 9000 series helical gear and bevel gear drives are distinguished by their robust design, which allows them to meet the highest reliability and service life requirements, even in tough operating conditions. With 26 sizes and their modular design, you are bound to find the optimal solution for your application. A tooth meshing angle of 25° provides the helical gearing with exceptional loadability. The Paramax product range includes the standardised 9000 series and special SFC versions for cooling tower drives and condenser cooling equipment,...

For use in mining environments, Sumitomo Drive Technologies has developed the Paramax 9000 conveyor drive series. Extreme conditions, with high shock loads and an environment laden with dirt, moisture and chemicals, make the highest demands on drive solutions of this kind which still have to ensure smooth plant operations. Paramax 9000 conveyor drives are extremely robust and feature a high thermal load capacity, a long service life, and a maintenance-friendly design. The Paramax SPA drive series comprises single-stage helical gear drives developed from the Paramax 9000 series drives. With their...
