Centrifuge reducers

Product catalog summary

Overview: Sumitomo (SHI) Cyclo Drive Germany GmbH provides a range of centrifuge reducers designed for various industrial applications, including organic and inorganic chemistry, petrochemistry, pharmacy, bioengineering, and environmental technology. These reducers are essential for the continuous and mechanical separation of solids from liquids.

Types of Centrifuge Reducers:

ZS: Single-stage Cyclo Drive centrifuge reducer, suitable for applications where the conveyor turns faster than the bowl.
ZSPN and ZSPV: Double-stage centrifuge reducers with a Cyclo Drive stage and a planetary stage for higher ratios. ZSPN provides a slower conveyor than the bowl, while ZSPV provides a faster conveyor.
ZSPR: Special double-stage centrifuge reducer with a Cyclo Drive stage and a differential planetary stage, allowing variable relative speed.
ZSP: Purely planetary centrifuge reducers available in double-stage and triple-stage designs, used for high bowl speed and high differential speed applications.

Design Features:

Circular design ideal for centrifuges, compact and reliable with high shock overload capacity.
Wide ratio range and customized design available on request.
Balanced housing and stainless steel design for food applications on special request.
Flange mount casing fixed to the bowl, output shaft with spline DIN 5480, and input shaft with external bearings for high radial load capacity.
Flexible lubrication system allowing grease or oil lubrication based on customer requirements.

Technical Specifications:

Sizes range from 610 to 626, with varying dimensions and mass.
Torque and differential speed specifications are provided for each size and type.
Outline dimensions and torque range are detailed in the provided tables.

Applications: These centrifuge reducers are used in industries such as organic and inorganic chemistry, petrochemistry, plastics manufacturing, pharmacy, bioengineering, oil and fat extraction, industrial biotechnology, fermentation products, intercellular products, organic products, and environmental technology.

Catalog excerpts

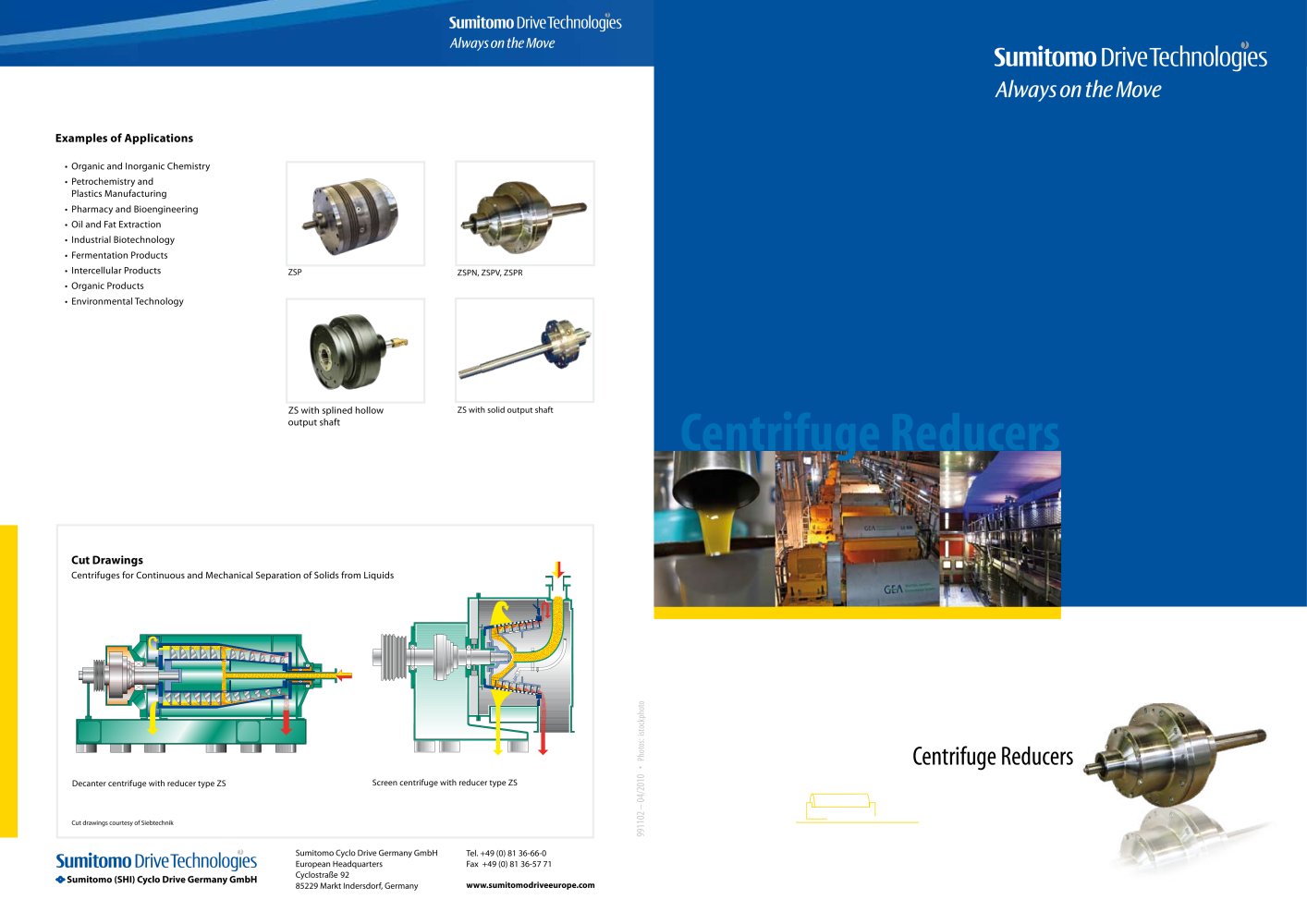

Sumitomo (SHI) Cyclo Drive Germany GmbH Centrifuge Reducers ZSP ZSPN, ZSPV, ZSPR Decanter centrifuge with reducer type ZS Screen centrifuge with reducer type ZS ZS with solid output shaft Examples of Applications • Organic and Inorganic Chemistry • Petrochemistry and Plastics Manufacturing • Pharmacy and Bioengineering • Oil and Fat Extraction • Industrial Biotechnology • Fermentation Products • Intercellular Products • Organic Products • Environmental Technology Centrifuges for Continuous and Mechanical Separation of Solids from Liquids Cut Drawings ZS with splined hollow output shaft Sumitomo Cyclo Drive Germany GmbH European Headquarters Cyclostraße 92 85229 Markt Indersdorf, Germany Tel. +49 (0) 81 36-66-0 Fax +49 (0) 81 36-57 71 www.sumitomodriveeurope.com Cut drawings courtesy of Siebtechnik Centrifuge Reducers 991102 – 04/2010 • Photos: istockphoto
