Bespoke Handling Equipment

At STS we specialise in supplying high-quality manual handling solutions, with unique designs driven by customer requirements. Whether you're interested in an off-the-shelf item or a bespoke solution, we're here to help. If you need a custom unit for a particular problem, our product team will put together a detailed specification, which is passed on to our design team. Qualified STS engineers then draw up the best solution for you, reviewing designs through a multi-tier checking regime before beginning manufacture. Manufacturing your product We manufacture all of our equipment here in the...

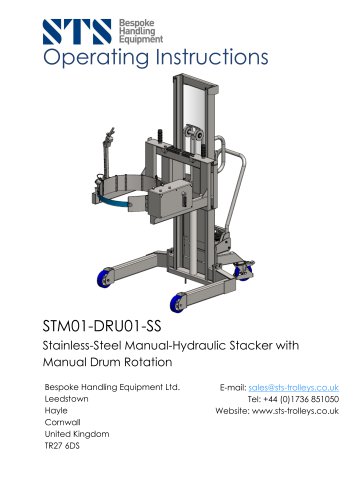

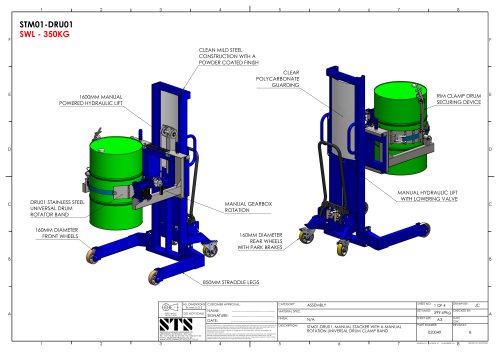

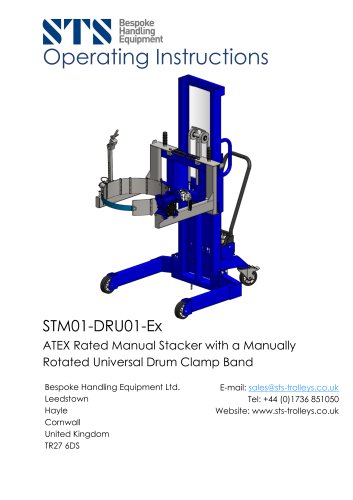

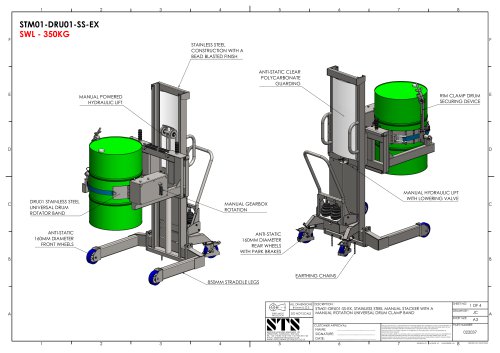

STS Universal Drum Rotator Manual STM01-DRU01 This manual-lift model provides operators with an ergonomic drum handling solution for low-use applications. Alternatively, we supply electric and pneumatic models. Manual hydraulic pump The pump is affixed to the side of the stacker truck. To lift a drum operators simply pump the handle back and forth, which raises the height of the ram. The low amount of force required to lift a drum means the unit is easy to use. Universal drum band Our universal band assembly has been designed to adapt to the contours of any drum. Steel, plastic and...

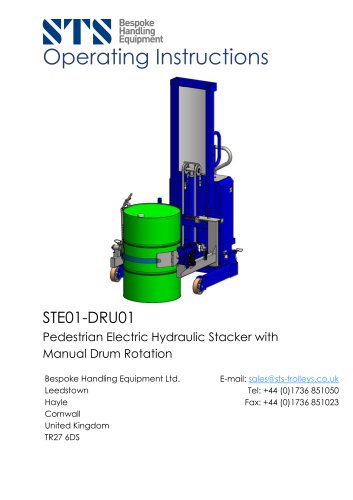

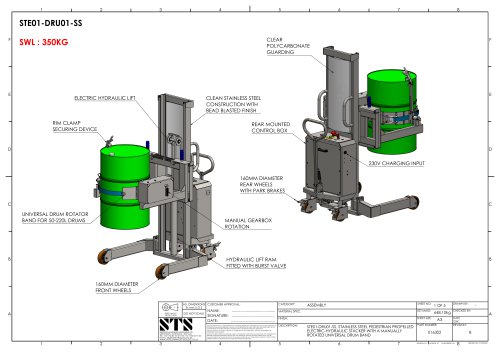

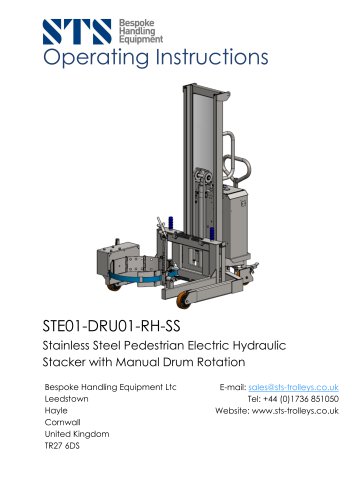

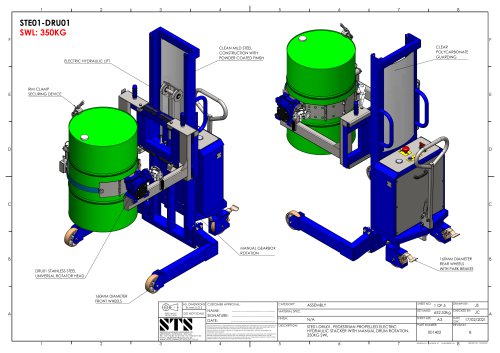

Universal Drum Rotator Electric STE01-DRU01 Our electric drum rotator has maintenance-free onboard batteries along with a built-in automatic battery charger. The unit is self-contained and mobile, making it great for large production facilities. Fully compliant lift circuits We install mandatory safety features and emergency stops on all of our products to keep you and your operators safe. Universal drum band The drum band is unique in the drum-handling industry. Made from stainless steel, this adjustable band helps you handle drums from as small as 50 litres, right up to 220 litres,...

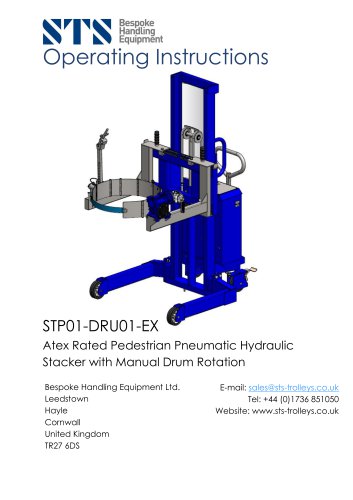

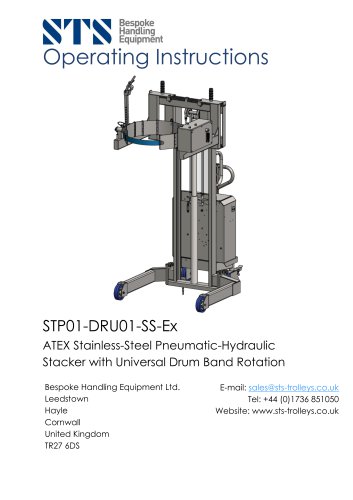

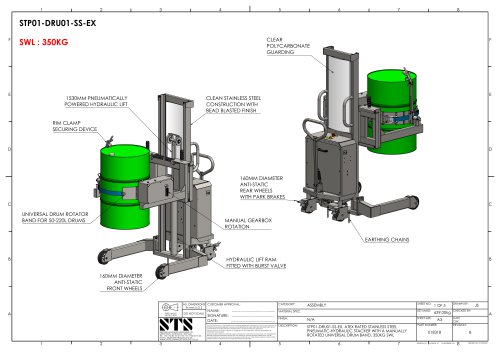

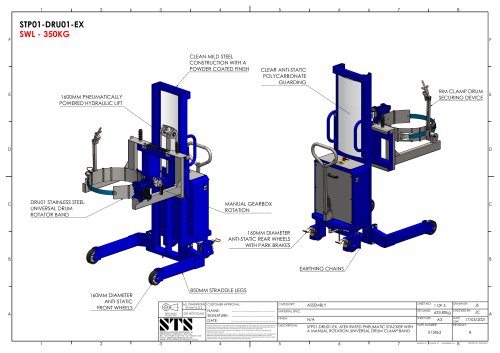

Universal Drum Rotator Pneumatic STP01-DRU01-Ex This drum tipper is pneumatic powered and can be certified for use in an ATEX area. The unit is extremely versatile as it can lift and tip a variety of drum types and sizes. Air-powered functions An airline connection powers a pneumatic-hydraulic pump, which supplies oil to the lifting system. The pneumatic system is very robust and requires little to no maintenance. Drum clamping band We supply our drum rotators with a fixed or variable drum band. The universal drum band is modular by design; the diameter of the band can be adjusted in...

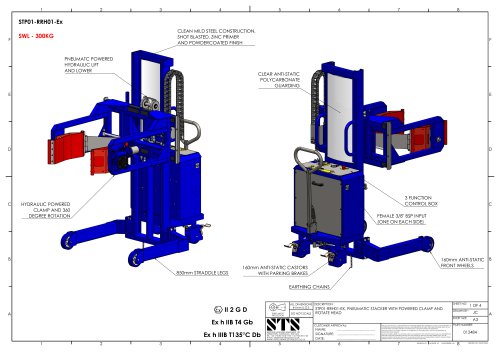

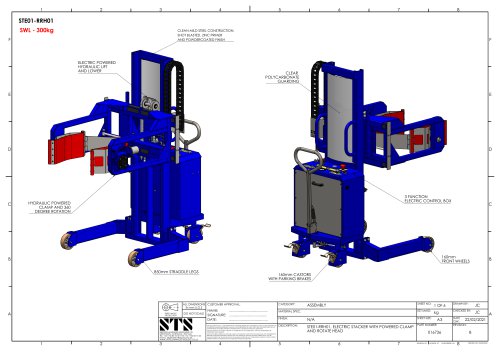

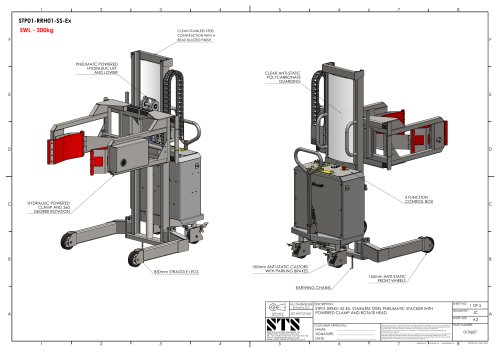

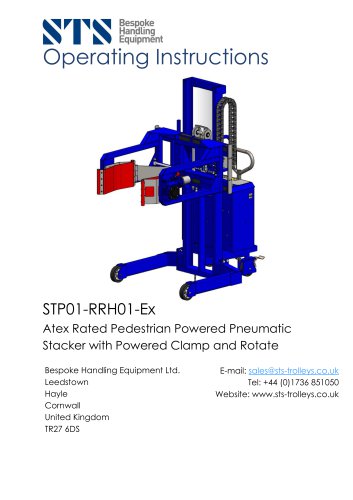

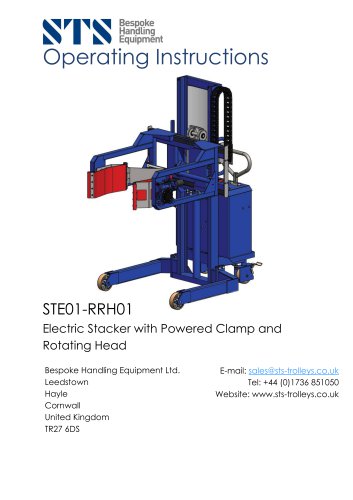

STS Power Clamp Drum Rotator STE01 / STP01-RRH01-Ex The ultimate in versatility, this power clamp drum tipper can lift and tip drums and barrels from 50 to 220 litres. We offer two hydraulic-powered options: electric or pneumatic. Lift options Two power configurations are available: the pneumatic-hydraulic STP01 requires an airline connection to supply the unit with hydraulic power via a pump; this model can be ATEX certified. Alternatively, the electric-hydraulic STE01 has on-board batteries, which are charged via a mains power supply between uses. Fully compliant circuits We fit mandatory...

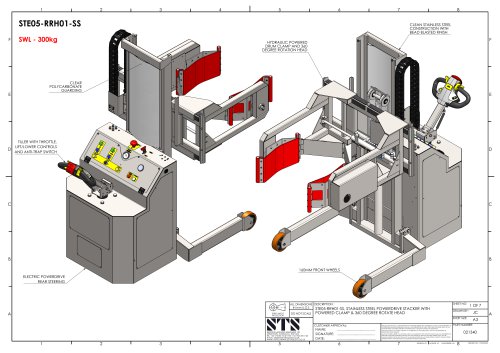

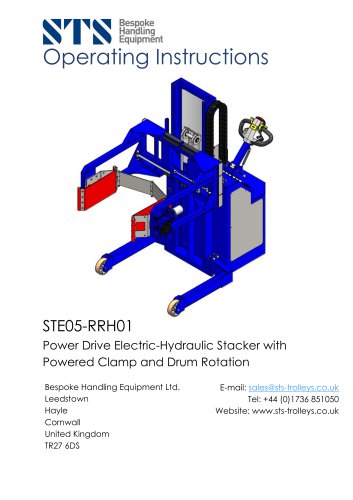

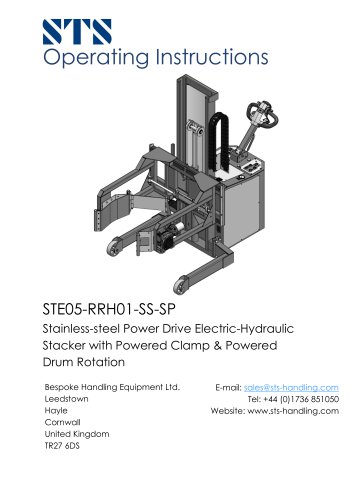

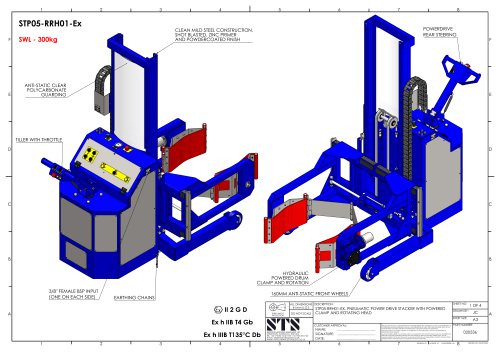

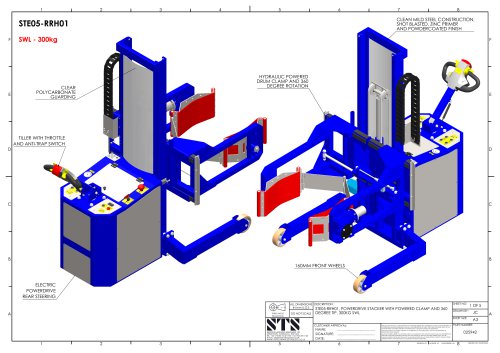

STS Power Drive Drum Rotator STE05 / STP05-RRH01-Ex Make light work of tipping and transporting heavy drums. Two power options are available: electric-hydraulic, which utilises on-board batteries, or a pneumatic-hydraulic model, which can be certified for ATEX areas. Power drive Each power drive model is designed and manufactured in-house at STS. Electric units utilise a DC drive motor; this option is suitable for non-ATEX areas. Alternatively, we offer pneumatic units whereby an airline powers a pneumatic-hydraulic circuit. In this case the drive wheel is hydraulic powered, similar to that...

TIPPERS AND ROTATORS OPTIONAL FEATURE STS Overhead Drum Rotator DRU02 The unique Overhead Drum Rotator uses our trademark variable band or a fixed clamping band to tip drums using a forklift, hoist or crane. Universal drum band An adjustable stainless-steel band accommodates drums from as small as 50 litres, right up to 220 litres, whether steel, plastic or fibre. A 50mm stainless-steel ratchet and strap tensions the band around the drum. Optional features ^ ^ ATEX option Stainless-steel model Rim-clamp securing system A rim-locking device attaches to the lip of the drum as a secondary...

STACKER TRUCK MIXERS, ROLLERS AND TUMBLERS STS ATEX Pedestrian Stacker Truck STP07-FAC01-Ex Our pneumatic-hydraulic forked stacker truck uses an airline connection to power the hydraulics and is fully certified for both gas (G) and dust (D) hazardous zoned areas. Fully compliant lift system The unit features pneumatic circuits and mandatory safety systems such as emergency stops and blocking valves. Should the airline be disconnected for any reason, the forks will remain in place and the load will remain safe. ATEX-certified for gas and dust zones 1, 2, 21 and 22 Each of our ATEX stacker...

MIXERS, ROLLERS AND TUMBLERS MIXERS, ROLLERS AND TUMBLERS STS End-over-End Drum Mixer Electric DME01 End-over-end drum mixers provide a fast method of mixing. With this unit you can mix steel, plastic and fibre drums with a maximum weight of 300kg. We offer units with mix speeds of between 7 and 38 RPM. Mixer control system Our electric model features a custom control interface to provide you with precise control. Controls include a digital mix timer as well as an adjustable speed dial. The control box includes a safety relay and meets all mandatory requirements. Easy drum loading You can...

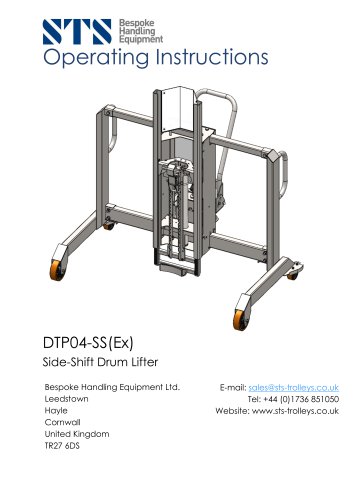

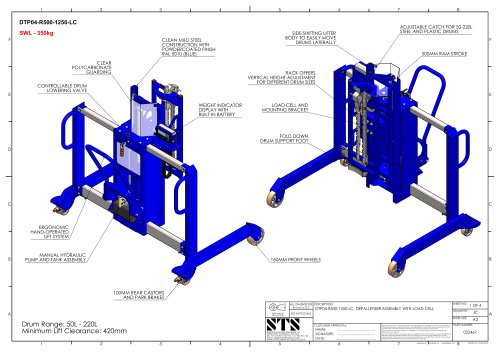

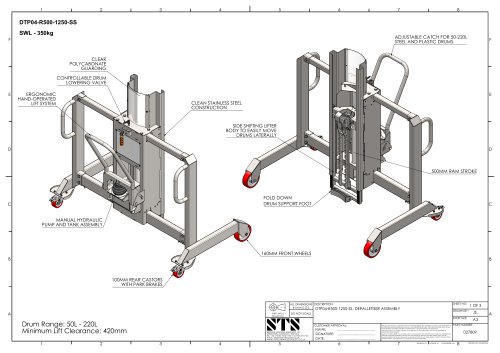

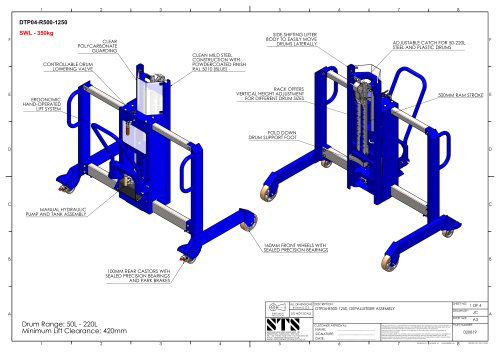

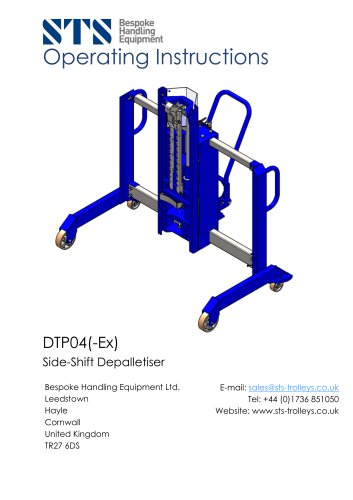

DRUM LIFTERS DRUM LIFTERS STS Side-Shift Drum Depalletiser DTP04 This is the most versatile drum depalletiser on the market. Our unique over-pallet lifter allows you to load and unload an entire pallet of drums from just one side, and the universal catch can connect the unit to a wide range of drums. Side-shift lifter body Fourteen precision bearings smoothly slide the central lifter Left and right, giving you straightforward access to the whole pallet. A toggle clamp can be used to lock the lifter body into position, allowing for precise controL and reducing pLacement gaps during handLing....

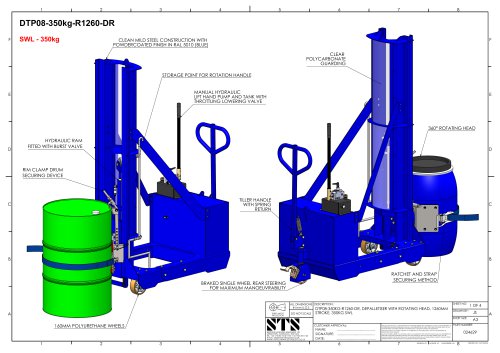

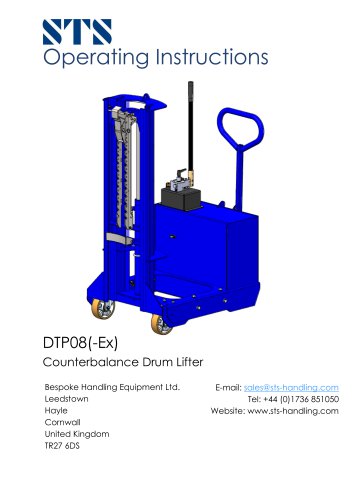

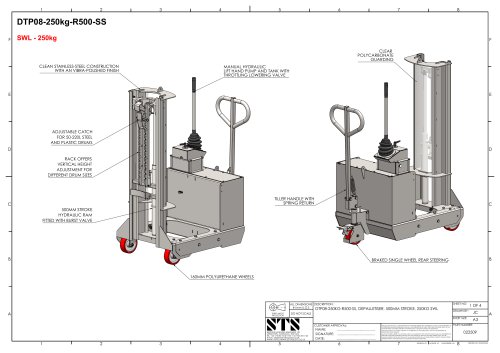

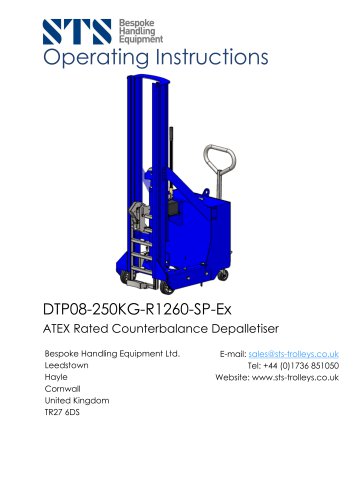

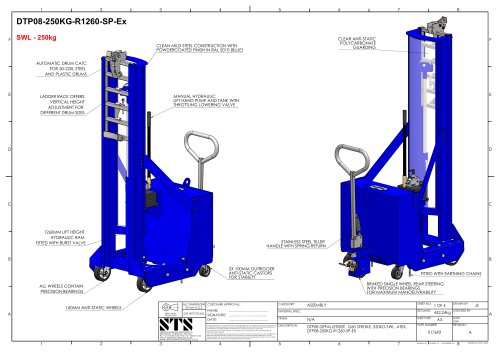

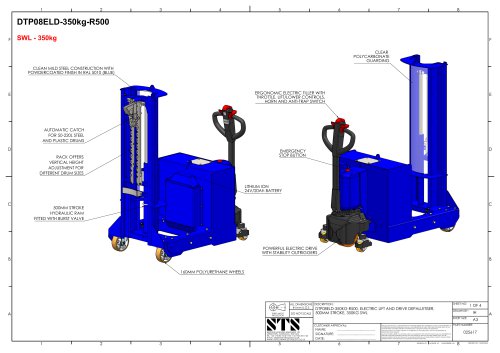

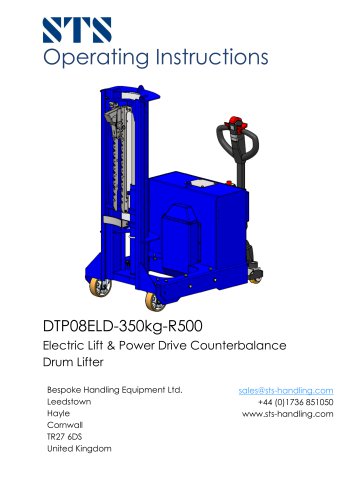

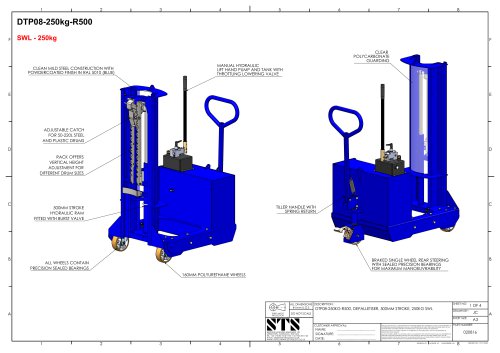

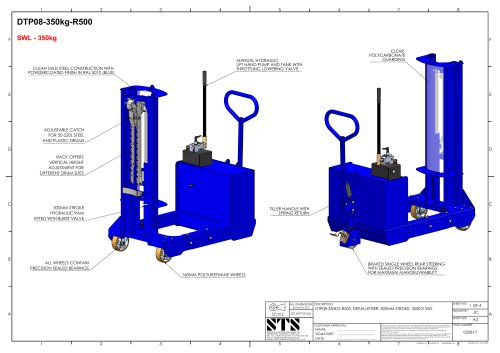

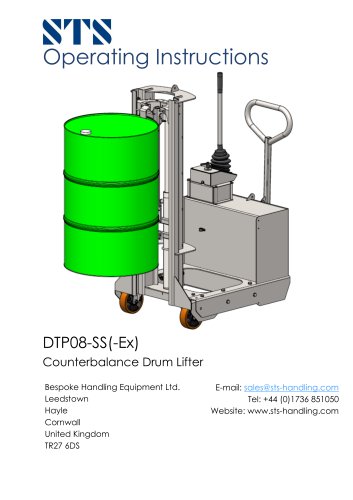

DRUM LIFTERS DRUM LIFTERS STS Counterbalance Drum Depalletiser DTP08 A counterbalance design eliminates the need for outlying legs; ideal for use in narrow workspaces. This model can be configured to suit a variety of lift heights and drum weights. Universal drum catch Drums of different types, sizes and materials can be handled using the fully adjustable drum gripper. Stainless-steel ladder rack For different drum heights, the catch can be moved up or down. The lift ram can be interchanged to allow greater clearance beneath a drum when raised. Manual hydraulic pump We assemble our...
