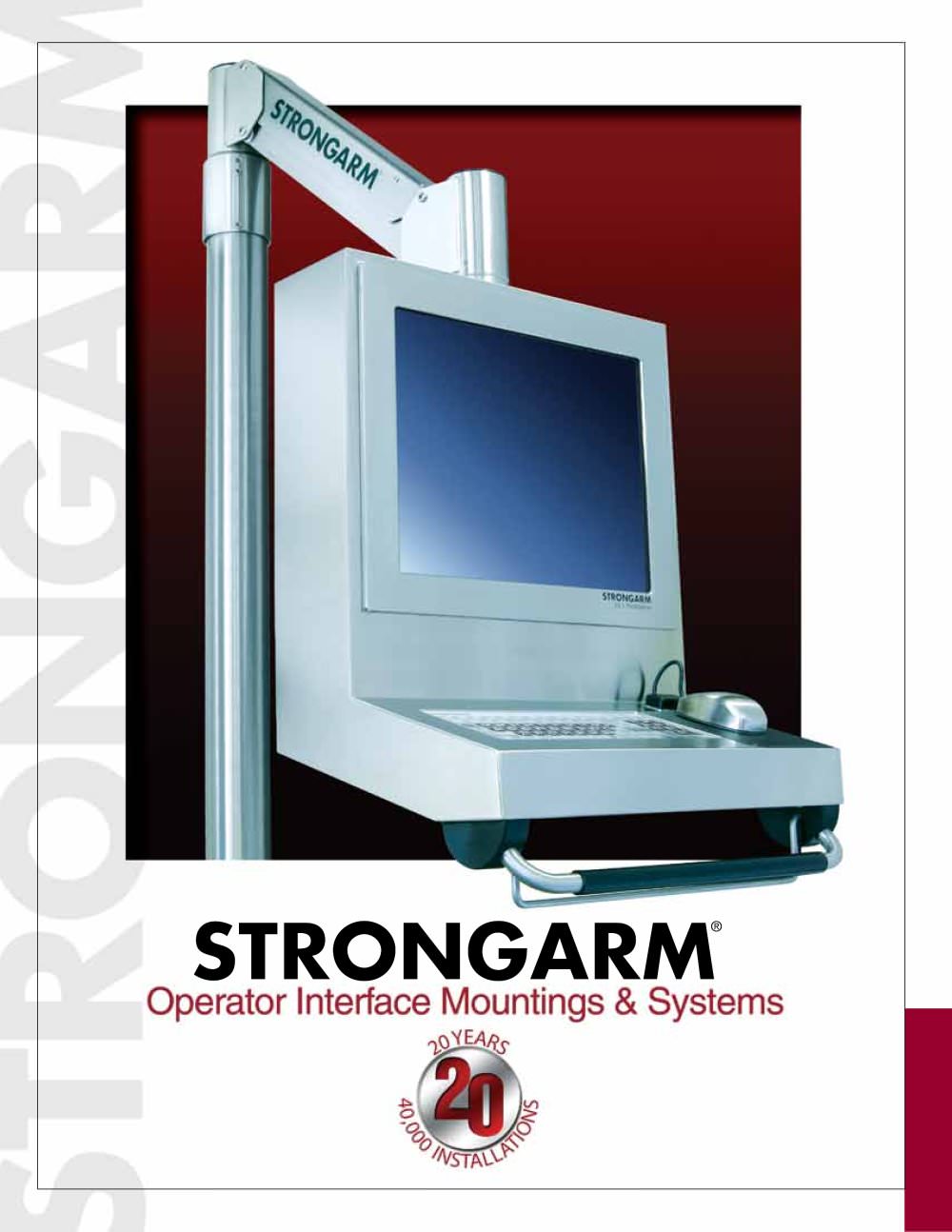

STRONGARM Operator Interface Mountings & Systems

425 Caredean Drive Horsham, PA 19044 215.443.3400 • Fax 215.443.3002 strongarm.com Welcome These product categories have emerged from the designs and innovations developed through more than two decades of listening to our customers’ needs. Each product is shown along with sample variations to assist in visualizing how the design may be adapted to the specific application. As you’ll see, there are many examples of stainless steel products that generally apply to two of our core markets: pharmaceutical and food processing. We have extensive experience in clean room designs and aggressive wash down...

© 2010 STRONGARM Designs, Inc. All Rights Reserved. STRONGARM and the STRONGARM logo are registered trademarks of STRONGARM Designs, Inc. MiniStation, Suite-Station, Mini-Console and MightyMount are trademarks of STRONGARM Designs, Inc. All other trademarks are the property of their respective owners. Contents 4 · MiniStationsTM 6 · MightyMountTM 8 · Mobile Stations 10 · Mobile Weigh Stations 12 · Suite-StationsTM 14 · Wall Stations 16 · Mini-ConsolesTM 18 · Pedestal Stations 20 · Large Format Display Systems 22 · Operator Interface Terminal Mountings 24 · Hazardous Area 26 · Outdoor Systems...

MiniStations Featuring the industry standard Vertica® arm mounting, the MiniStation provides 13", 23" or 30" of 100% counterbalanced vertical adjustment with automatic lock-in-place for safety. Simply squeezing the handle bale allows the MiniStation to be adjusted weightlessly. To specify your ideal system, mix and match from STRONGARM’s extraordinary selection of displays, touchscreens, PCs, thin clients, keyboards, and pointers. Choose additional accessories from our robust collection, or specify your company standard. Unique to STRONGARM systems is the choice of where the PC is located. For...

MiniStations Swivel up to 330º Swing up to 330º Articulation of the standard Vertica arm, providing 13" of vertical travel, is ideal for ergonomics. The Vertica L and XL provide 23" and 30" of vertical travel respectively for special applications Also available in coated steel in many stock and custom colors Up to 30" of ergonomic vertical adjustment Machine top mounted with both midjoint and vertical extensions to match the reach and elevation to the surface Floor post mounted with horizontal extension Cabling is in a safe and concealed passageway, maintaining the MiniStation’s NEMA 4X rating...

MightyMount The MightyMount defines a category of its own. Easily differentiated from the slew of “computer store” grade mountings, the MightyMount is built like a piece of machinery using heavy duty components. While similar in outward appearance, its robust aluminum construction and simplified functionality is favored among OEMs and end-users alike. 6 strongarm.com An Exceptionally Solid Work Platform That’s Ergonomic TM

MightyMount Tight keyboard is ideal for “over top of work” areas Optional nickel plating with a sealed stainless steel display This variation includes a horizontal extension, customized mounting, a sliding left-right mousetray, and bar code scanner bracket Stainless cable manager clips over and screws down securely. Loom style cable manager accepts a 7/8" diameter flexible plastic loom. Fold-up keyboard saves space when not in use, MightyMount stows to just 5" overall in depth Standard cable manager Loom-style cable manager One button to fold up One button to fold down 5" Additional Features...

Mobile Stations Mobilized work stations offer flexibility and cost savings. One Mobile Station can be shared between process areas, particularly in cases where not all areas operate continuously or where the need for the computer is intermittent. Every Mobile Station is outfitted specifically to the application, emphasizing compact size while providing the necessary capabilities. Power options can be tethered AC, a UPS to keep the PC up while repositioning, or full battery power to run unconnected for a full shift. On-board printing is a popular option, with choices ranging from bar code label...

Mobile Stations Slimmer design is line cord powered Deeper system accommodates a full sheet laser printer Both a server and UPS inside Power selector/battery status is on the front panel in addition to direct viewing of power status on the side of the battery enclosure Inset pocket for the bar code scanner keeps it safe while in transit The battery is cradled between the casters, providing a low center of gravity for stability Roll-out printer carriage simplifies label replacement Larger base for a high capacity UPS Additional Features Sample Variations 9

Weigh Stations Mobilized product weighing has many applications; and batch pre-weighing is one of the most popular. Some installations wirelessly communicate with a remote batching computer to relay instantaneous operator instructions. Mobile Weigh Stations vary dramatically in size and configuration and are individually configured to suit the scale size and accessories required. Power options include tethered AC power, a UPS to keep the PC up while repositioning, or full battery power to run unconnected. NEMA 4X/IP69K stainless steel construction. 10 strongarm.com Improve Efficiency, Bring the...

Weigh Stations Direct viewing of battery power status located on the side of the battery enclosure Workspace design with small weigh scale and cabinet for large PC and additional components Dual scale version features smaller scale on top of removable trapezoid support, with larger scale underneath Small scale variation Front mounted scale head and integrated label printers Weigh scale, scale head interface, work surface area and cabinets for the PC and additional components Scale head conveniently mounted for operator use Display swivels to face scale for lineof- sight filling and weighing Additional...
