Overview
The MightyMount is a machinery-grade articulating display and keyboard mounting system designed for robust support and ergonomic positioning. It features a CNC machined aluminum structure with high precision bearings, ensuring stability and durability even with frequent use.

Key Features

Ergonomic Positioning: Offers 12 inches of counterbalanced vertical movement with a secure locking mechanism and adjustable pivots for optimal positioning.
Space-Saving Design: The fold-up keyboard version allows the mount to flatten against the wall to just 5 inches when not in use, freeing up bench space.
Organized Cables: Includes cable managers for neat installation and protection against cable damage.

Mounting Options

Wall Mount: Convenient for freeing up bench space.
Bench Top Mount: Suitable for various workstation setups.
Floor Post Mount: Provides additional flexibility in positioning.

Customizations

Horizontal extensions, bar code scanner brackets, adjustable tilt keyboards, and more are available for customization to meet specific needs.

Specifications

Materials: Cast 319F Aluminum Alloy for the body and 5052 Aluminum Alloy for the keyboard tray.
Bearings: Precision sealed ground ball bearings for horizontal axles and acetal bushings for vertical axles.
Finish: Powder coat available in Dark Gray RAL7021 or Light Gray RAL7035, with other colors available upon request.
Counterbalance: Supports up to 36 lbs.
Weight: 12 lbs. for models without display or keyboard.

Catalog excerpts

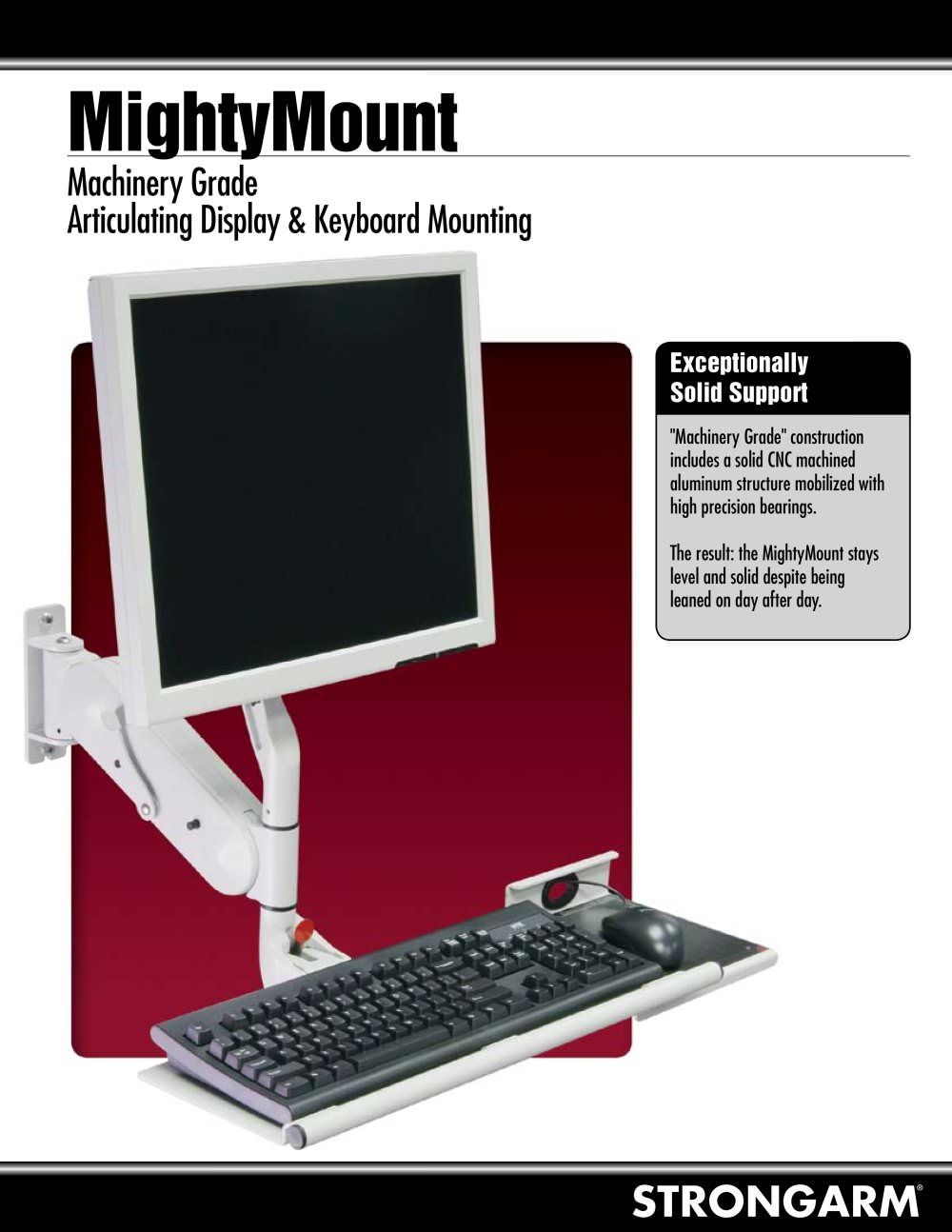

"Machinery Grade" construction includes a solid CNC machined aluminum structure mobilized with high precision bearings. The result: the MightyMount stays level and solid despite being leaned on day after day. >

Open the catalog to page 1

12" of Vertical Adjustment Display Tilt Mounting Swivel Fold-up Keyboard Display Swivel >

Open the catalog to page 2

DisplayOnly Designed for touchscreen applications Wall Mount DimensionsBench Top Mount DimensionsFloor Post Mount Dimensions > Finish Powder coat: Available in Dark Gray RAL7021 or Light Gray RAL7035 (Other colors also available) Materials of Construction Counterbalance Bearings Body - Cast 319F Aluminum Alloy Keyboard Tray - 5052 Aluminum Alloy Up to 36 lbs. (specify with order) Horizontal axles - Precision sealed ground ball bearings Vertical axles - Acetal Bushings Weight 12 lbs. > (Fold-Up and Close Coupled Keyboard Models, no display or keyboard) 425 Caredean Drive Horsham, PA 19044 Օ 215.443.3400...

Open the catalog to page 4
