Electromagnetic-hydraulic disc brake

Electromagnetic-hydraulic disc brake
2Pages

Catalog excerpts

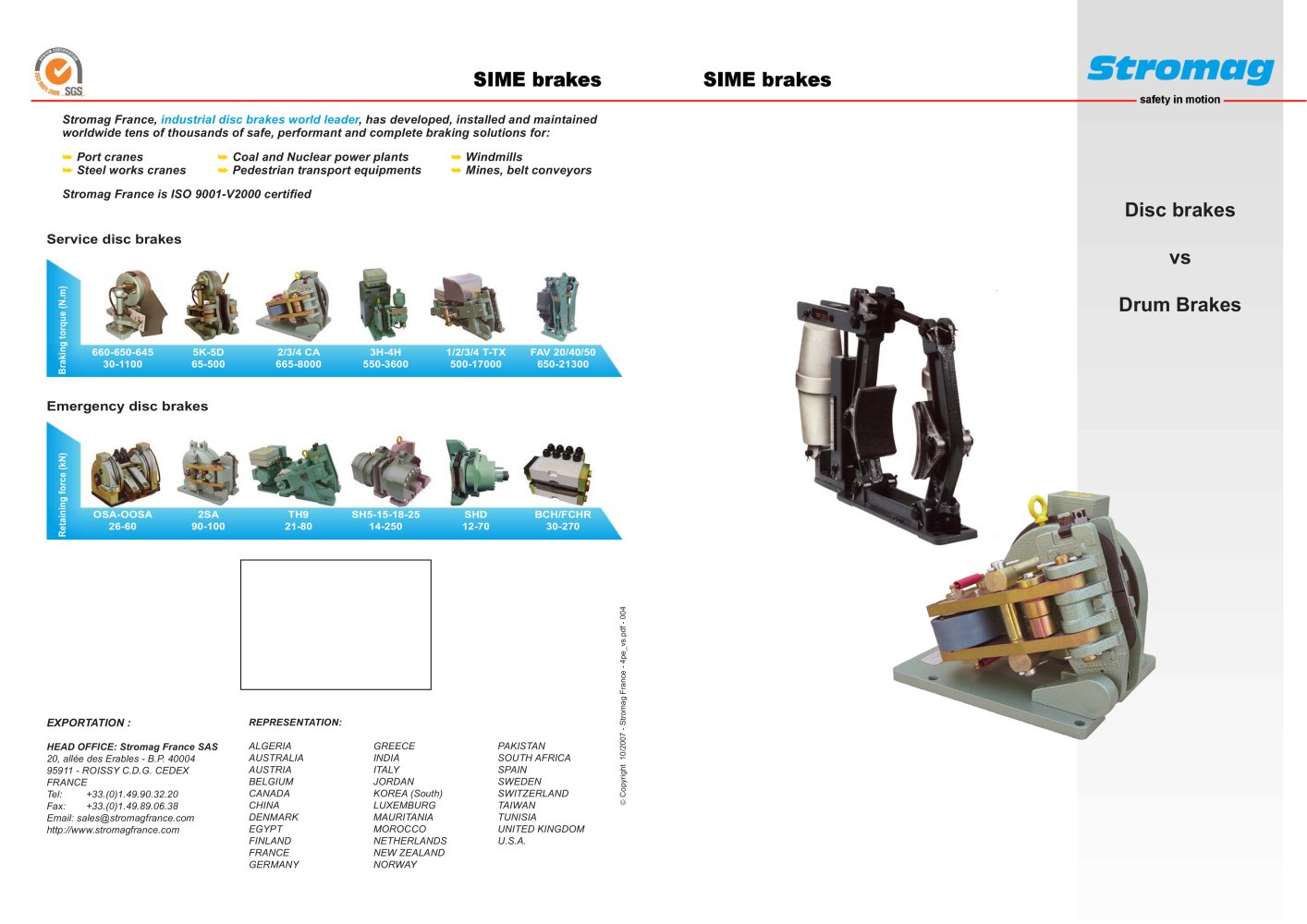

Electromagnetic-hydraulic disc brake - 1

Stromag France, industrial disc brakes world leader, has developed, installed and maintained worldwide tens of thousands of safe, performant and complete braking solutions for: . Port cranes . Coal and Nuclear power plants . Windmills . Steel works cranes . Pedestrian transport equipments . Mines, belt conveyors Stromag France is ISO 9001-V2000 certified EXPORTATION : HEAD OFFICE: Stromag France SAS 20, allée des Erables - B.P. 40004 95911 - ROISSY C.D.G. CEDEX FRANCE Tel: +33.(0)1.49.90.32.20 Fax: +33.(0)1.49.89.06.38 Email: sales@stromagfrance.com http://www.stromagfrance.com REPRESENTATION: ALGERIA AUSTRALIA AUSTRIA BELGIUM CANADA CHINA DENMARK EGYPT FINLAND FRANCE GERMANY GREECE INDIA ITALY JORDAN KOREA (South) LUXEMBURG MAURITANIA MOROCCO NETHERLANDS NEW ZEALAND NORWAY PAKISTAN SOUTH AFRICA SPAIN SWEDEN SWITZERLAND TAIWAN TUNISIA UNITED KINGDOM U.S.A. Disc brakes vs Drum Brakes . Copyright 10/2007 - Stromag France - 4pe_vs.pdf - 004 Emergency disc brakes Service disc brakes Retaining force (kN) Braking torque (N.m) 660-650-645 5K-5D 2/3/4 CA 3H-4H 1/2/3/4 T-TX FAV 20/40/50 30-1100 65-500 665-8000 550-3600 500-17000 650-21300 OSA-OOSA 2SA TH9 SH5-15-18-25 SHD BCH/FCHR 26-60 90-100 21-80 14-250 12-70 30-270

Open the catalog to page 1

Electromagnetic-hydraulic disc brake - 2

... THE RIGHT CHOICE ! STROMAG DISC BRAKES ... Disc brake inertia is lower than drum brake’s (60% less) Disc brake Stopping distance (same braking torque) Generated energy (same braking torque) Braking torque (same stopping distance) + 30% + 36% + 50% Drum brake Disc brake Drum brake Disc brake Drum brake œ External dimensions œ Inertia - response time - 40% - 30% Disc brakes need less physical room and clearance for maintenance «2SA» emergency caliper . Shorter response time, no need to oversize brakes . Smaller motors, trolleys, couplings.. DISCS vs. DRUMS: a question of PERFORMANCE !...
